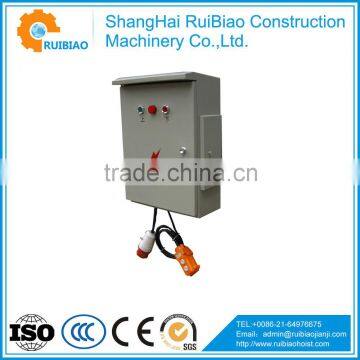

ZLP series suspended platform can be devided into three kinds of specifications, ZLP500,ZLP630 , ZLP800 and ZLP1000. The main components include platform, hoist mechanism, safety lock, suspension mechanism and electrical control system.
It is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.
| Name | Technical parameter | |||||
| Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | ||
| Rated load | 500Kg | 630Kg | 800Kg | 1000Kg | ||
| Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | ||
| Platform Dimension L×W×H(mm) |
5000(2+3m)×720 ×1300 |
6000(1+2+3m)×720 ×1300 |
7500(2.5m*3)×720 ×1300 |
7500(3*2.5)×720 ×1300 |
||
| Lifting Height | 100 m | 100 m | 100 m | 100 m | ||
| Cable | 100 m | 100 m | 100 m | 100 m | ||
| Steel rope(Diameter) | 8.3mm | 8.3mm | 9.1mm | 8.6mm | ||

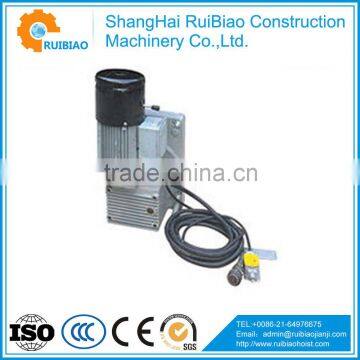

| Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2 KW*2 | |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | ||
| Safety lock | Permission force of impact | 30KN | 30KN | 30KN | 30KN | |
| Locking Cable Angle | 3°~8° | 3°~8° | 3°~8° | 3°~8° | ||
|
Suspension mechanism Galvanized |
Front beam overhang | 1.3~.1.5m | 1.3~1.5m | 1.3~1.5m | 1.3~.1.5m | |
| Support adjustable height | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | ||
| Counterweight | 800KG | 1000kg | 1000kg | 1200KG | ||
| 20’ft container load qty | 10 sets | 9sets | 8sets | 8 sets | ||
Frame platform assembled by Steel (Aluminum) panels and bolts, used for carry workers and construction tools.platform have Aluminum,Steel with Plastic coating fihish, Steel with Hot dip galvanized finish three kinds for choose.
1.Features for Aluminum platform:
No need painting or galvanizing on surface;
Oxygen membrane on the surface, rust-proof, anti-corrosion.
Light weight, 65% lighter than the same model of steel one.
Load effiency increased, anti-subversion ability improved.
Easy to install& operate.
Good look, with bright silver gray color
2.Features for Steel platform with Plastic coating finish:
Plastic painting on platform surface, anticorrosion.
With comptitive price compared with the aluminum and hot-galvanized surface.
3.Hot dip galvanized steel platform.
With good ourlook;
Anti corrosion.
Lower price than Aluminum platform.
Advantages:
Platform length varies from 1 m, 1.5 m, 2 m, 2.5 m, to 3 m range. Customers can assemble them free as required.
End frame: the first factory adopts raglan welding treatment. Secure, greatly enhancing the strength and safety of the platform.
Embossing bottom plate width is 720mm, flat shape, easy for installation.
360 caster wheels are under bottom, facilitate moving the platform.
