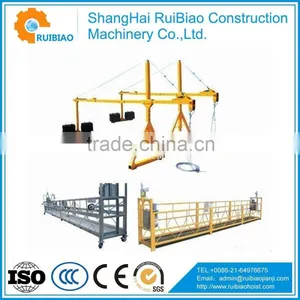

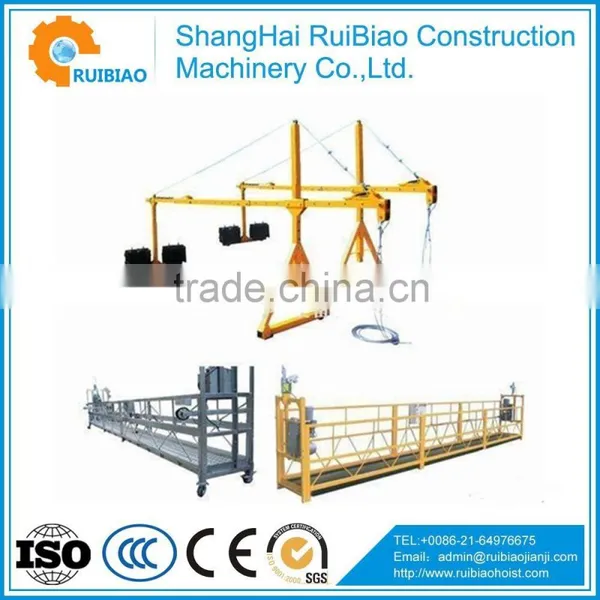

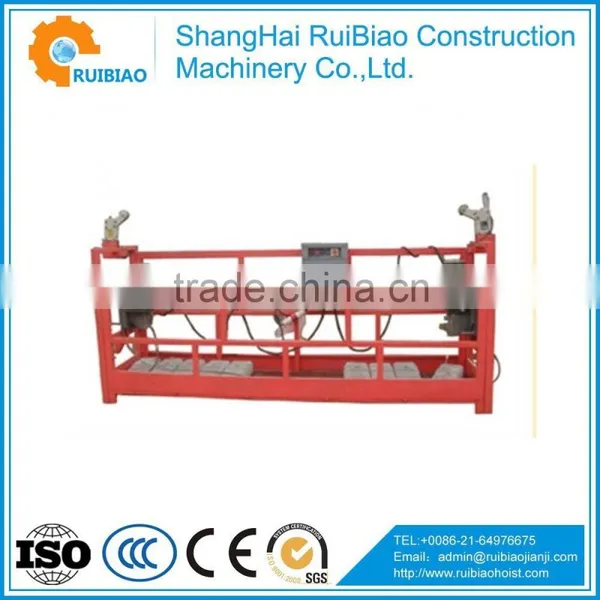

Help CenterSupply Aluminum ZLP 630 Hoist ZLP630 Suspended Platform
Related Products
-
ZLP Electric Construction/ Building/ External Wall Suspended PlatformUS$ 1,600 - 3,000MOQ: 1 Set -
Exterior Wall Hanging Basket/suspended PlatformUS$ 1600.00 - 1750.00MOQ: 1 Set
-
Suspended Platform Used for Wall PlasteringUS$ 1600.00 - 1750.00MOQ: 1 Set
-
Building Painting Machine/suspended Platform for Wall PlasteringUS$ 1600.00 - 1750.00MOQ: 1 Set
-
Suspended Platform/Window Cleaning GondolaUS$ 1600.00 - 1750.00MOQ: 1 Set

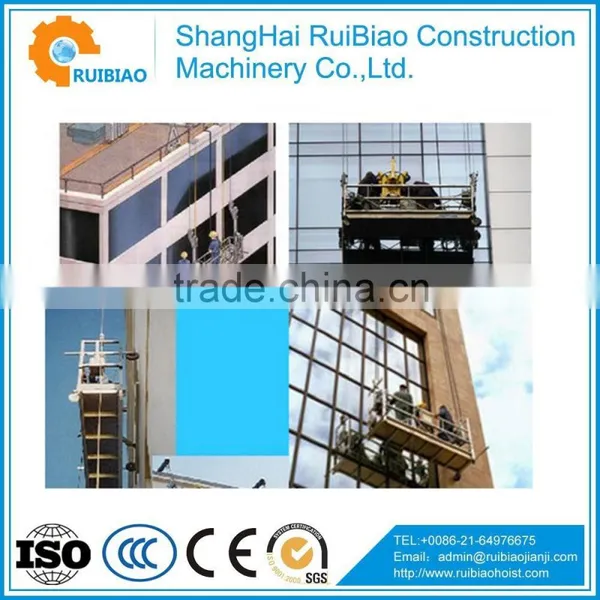

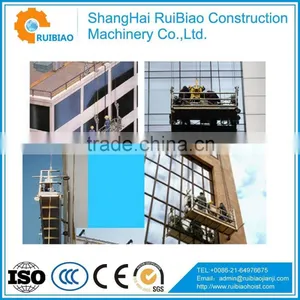

Suspended Platform is an alternative to traditional scaffold , reduce labor intensity and improve work efficiency, and the new high operating equipment can be reused. Currently , the use of the gondola building has become a trend , has been widely recognized in the construction of high-rise multi-storey high building facades , and curtain wall installation , construction and maintenance of clean exterior insulation and other high-altitude operations. At the same time can be used for large tanks , bridges and dams and other engineering operations. The use of this product , you can avoid scaffolding . So that greatly reduce the cost of construction , construction costs only 28 % of the traditional scaffolding , and a substantial increase in work efficiency. Suspended Platform flexible operation , the shift is easy, convenient and practical, safe and reliable.
High operating basket is simple, easy to shift , convenient and practical, safe and reliable. The use of this product , you can avoid scaffolding, so that the construction cost is greatly reduced. ZLP series of high operating basket People's Republic of China in line with the national standard GB19155-2003 requirements.
| Name | Technical parameter | |||||
| Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | ||
| Rated load | 500Kg | 630Kg | 800Kg | 1000Kg | ||
| Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | ||
| Platform Dimension L×W×H(mm) |
5000(2+3m)×720 ×1300 |
6000(1+2+3m)×720 ×1300 |
7500(2.5m*3)×720 ×1300 |
7500(3*2.5)×720 ×1300 |
||
| Lifting Height | 100 m | 100 m | 100 m | 100 m | ||
| Cable | 100 m | 100 m | 100 m | 100 m | ||
| Steel rope(Diameter) | 8.3mm | 8.3mm | 9.1mm | 8.6mm | ||

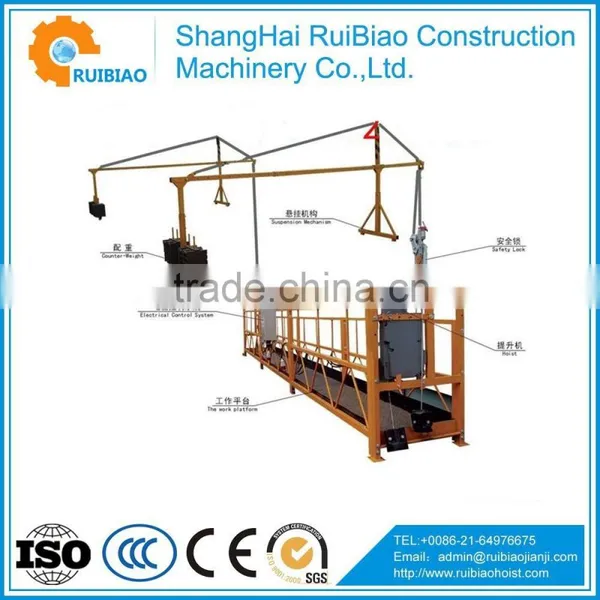

| Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2 KW*2 | |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | ||
| Safety lock | Permission force of impact | 30KN | 30KN | 30KN | 30KN | |
| Locking Cable Angle | 3°~8° | 3°~8° | 3°~8° | 3°~8° | ||
|
Suspension mechanism |
Front beam overhang | 1.3~.1.5m | 1.3~1.5m | 1.3~1.5m | 1.3~.1.5m | |
| Support adjustable height | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | ||
| Counterweight | 800KG | 1000kg | 1000kg | 1200KG | ||
| 20’ft container load qty | 10 sets | 9sets | 8sets | 8 sets | ||
Attn:Tina Liu
Tel:0086-21-64976675
Skype:tina761621348
QQ:1983746653
Pls contact us to get further information!
