Specifications
1.J11/RJ12 Top Entry Telephone Modular PCB Connector/Socket with Round Pin Modular PCB Jack2.UL,RoHS,ISO9001-2000

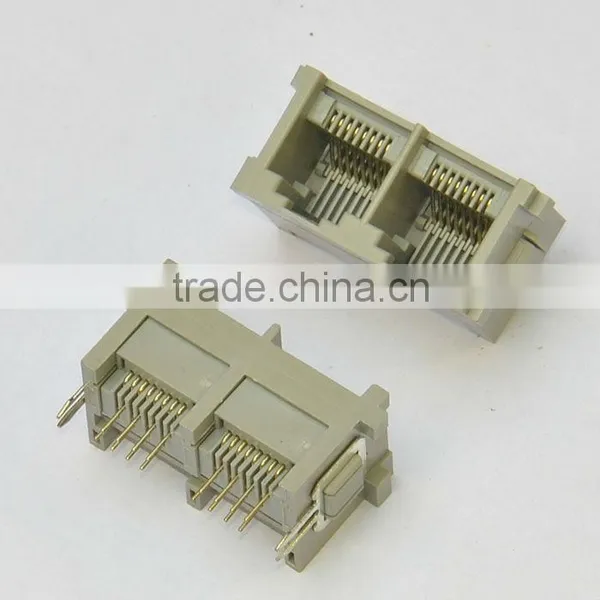

Product Name: Network Connector/RJ45 Modular PCB Jack
Item No.: SC238-5225-8P-1x2-180
Description:
Top Entry modular pcb jack , 8p2c, 8p4c 8p6c or 8p8c(number of 8 passing through the golden needles, amount of 2, 4, 6 or 8 needles) with Stamp Pin(Flat Pin)
No.of Ports:1*2 Port
Angle: 180 Degree
Color: Black, also can requested by customers
Specification
Electrical
1. Current Rating: 1.5 amps
2. Voltage Rating: 125vac
3. Insulation Resistance: 500mΩmin
4. Contact Resistance: 30mΩmax
5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1. Insertion Force: 2.2KG. F max
2. Retention Strength: 7.7KG. F min between jack and plug
3. Durability: 600 mating cycles min
Material
1. Housing: ABS RESIN(UL94V-0)
PBT(UL94V-0)(Common type)
PA66(UL94V-0)
PA46(UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu", +3u",6u",15u",30u" or 50u"
| RJ45/RJ11 Connector specifications: | |
| Application - LAN | ETHERNET |
| Gender | Jack |
| No. of Ports | 1X2,1X4 |
| Number of position | 10 |
| Number of contacts | 2,4, 6,8 or 10 |
| Housing | PBT(UL94-V0),PA66(UL94-V0),PA46 (UL94-V0) |
| Contact Material | 0.45mm phosphor bronze gold plating over nickel |
| Shielding housing | 0.20-025mm thickness brass with nickel plated |
| Shield EMI Tabs | Option |
| LED | Option |
| Gold Plating | Gold Flash,3u",6u",15u",30u" or 50u" |
| PCB Mount Angle | Side entry |
| Insertion Force | 2.2KG.F max |
| Retention Strength | 7.7KG.F min between jack and plug |
| Durability | 750 mating cycles min |
| Working Temperature | -40°C~+70°C |
| Storage Temperature | -10°C~+40°C Relative Humidity |
| RoHS Compliant | Yes |
| Electrical: | |
| Current Rating | 1.5 Amps |
| Voltage Rating | 125VAC |
| Insulation Resistance | 500 MΩmin |
| Contact Resistance | 30 mΩmax |
| Withstanding Voltage | AC 1000V RMS 50Hz or 60Hz 1 min |
| RJ45 connector Application: | |
| Laptop | Telephone |
| Hub | Router |
| Printer | Broadband Switche |
| Server | Fitness Equipment |
| LCD and TV panel | Point of Sales Terminal |
| Set Top Box | Vending Machines |
| Surge protector | Television |
| Telecom box ATM Machine | Home Security |
| Security System | Copier |
| Video DVD product | |
