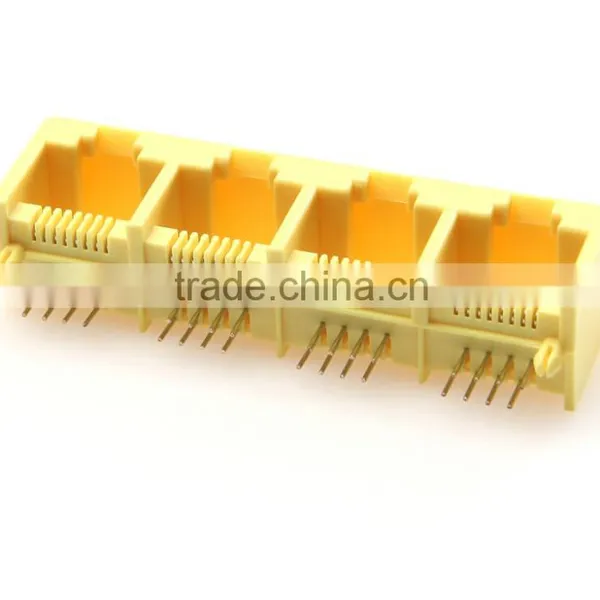

Unshield Side Entry Female RJ45 8P8C Connector 1X4 Ports Modular PCB Jack
US$ 0.16 - 1.85
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CSCE
Model Number:
5521-8P8C-1X4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
CSCE
Model Number
5521-8P8C-1X4
Type
RJ45
Application
PCB
Gender
Female
Description:
Side entry RJ45 modular PCB jack
Without shielding, round pin
Number of ports: 1X4
Number of position: 8
Number of contacts: 2,4,6 or 8
Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
Materials:
1.Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over
Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu inch, 3u inch, 6u inch, 15u inch, 30u inch, 50u inch
