Specifications
1.ISO 9000/9001/9004/19001:20002.CCC certificate
3.TS16949
4.OEM S evice
5.Best price with high quality

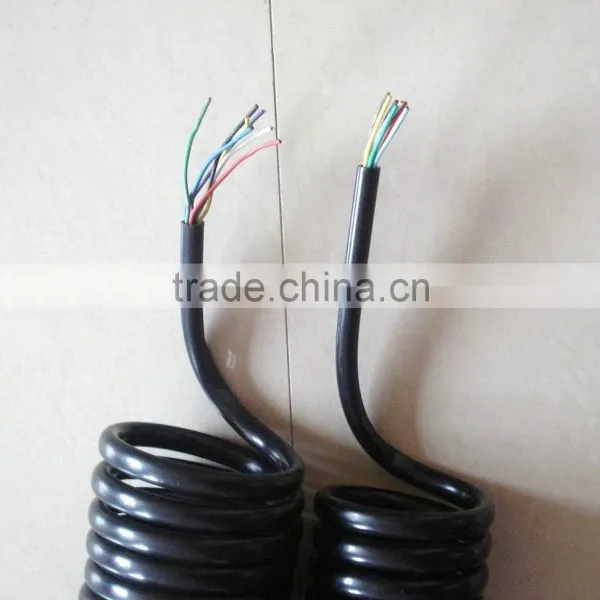

Trailer Electrical Coil/Seven Core Cable
(1) Applications:this product is an ideal method of connecting electrical lines between the prime
Movers,trailers,tractortractors,trailers,semi-trailers and all kings of air-power system.
(2)Coil No and Length:
No of Coils |
Total Length(coil Outer-diameter—90mm |
Total Length(Coil Outer-diameter—110mm |
14 |
4.1m |
5.0m |
22 |
6.5m |
7.6m |
26 |
7.5m |
9.0m |
(3)Dimension os the hose:12*9mm
(4)Moterial of the hose:PA12
(5)Length of the coil tail:120mm
(6)The size of the seven inner wire can be:6*0.75+1*0.5c,6*1.0+1*0.75,6*1.5+1*1.0,and the
Biggest wire is white color
(7)Working Temperature:-40--120°
(8)This electrical coil can be fixed by the socket of 24v
(9)The colors of the seven wires:white,black,yellow,blue,green,grey,red
(10)We could also make the hose just according to your specifications and requirements
Contact person:Cherry
Tel : 86-575-87618857
Fax:86-575-87667309
Mobile:86-15068547213
WELCOME TO VISIT OUR COMPANY SINCERELY!
