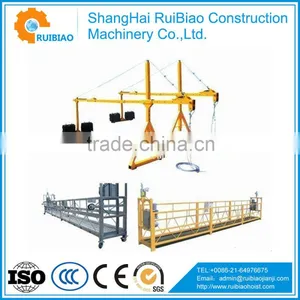

ZLP series suspended platform are mainly used for the exterior construction, decoration and fitting-out works of multi-storey buildings such as the following: high rise elevator, cableway installation, granary, colliery, security inspection, tower hoist driver’s lift, large tank, chimney, boiler maintenance, dam and bridge maintenance. The length can be up to 30 meters. Suspended platform is also applicable to exterior wall decoration, plastering,building insulation, coating, marble tile installation, glass curtain wall installation and cleaning.
The suspended platform can be instead of scaffoldings, which will greatly reduce the cost, and with higher efficiency; what’s more, operation is simple and flexible, easy to transfer, easy to use, safe and reliable etc.
ZLP series suspended platform conforms to GB19155-2003 standard.
| Name | Technical parameter | |||||
| Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | ||
| Rated load | 500Kg | 630Kg | 800Kg | 1000Kg | ||
| Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | ||
| Platform Dimension L×W×H(mm) |
5000(2+3m)×720 ×1300 |
6000(1+2+3m)×720 ×1300 |
7500(2.5m*3)×720 ×1300 |
7500(3*2.5)×720 ×1300 |
||
| Lifting Height | 100 m | 100 m | 100 m | 100 m | ||
| Cable | 100 m | 100 m | 100 m | 100 m | ||
| Steel rope(Diameter) | 8.3mm | 8.3mm | 9.1mm | 8.6mm | ||

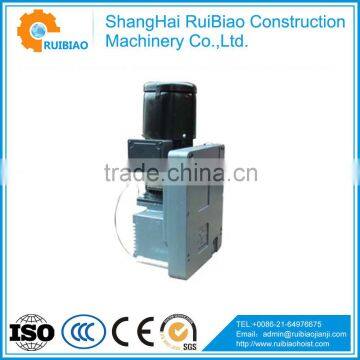

| Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2 KW*2 | |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | ||
| Safety lock | Permission force of impact | 30KN | 30KN | 30KN | 30KN | |
| Locking Cable Angle | 3°~8° | 3°~8° | 3°~8° | 3°~8° | ||
|
Suspension mechanism Galvanized |
Front beam overhang | 1.3~.1.5m | 1.3~1.5m | 1.3~1.5m | 1.3~.1.5m | |
| Support adjustable height | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | ||
| Counterweight | 800KG | 1000kg | 1000kg | 1200KG | ||
| 20’ft container load qty | 10 sets | 9sets | 8sets | 8 sets | ||
Attn:Tina Liu
Tel:0086-21-64976675
Skype:tina761621348
QQ:1983746653
Pls contact us to get further information!
