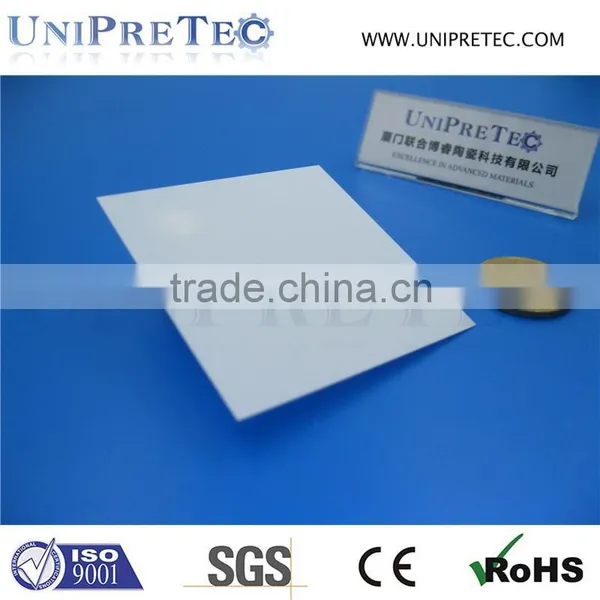

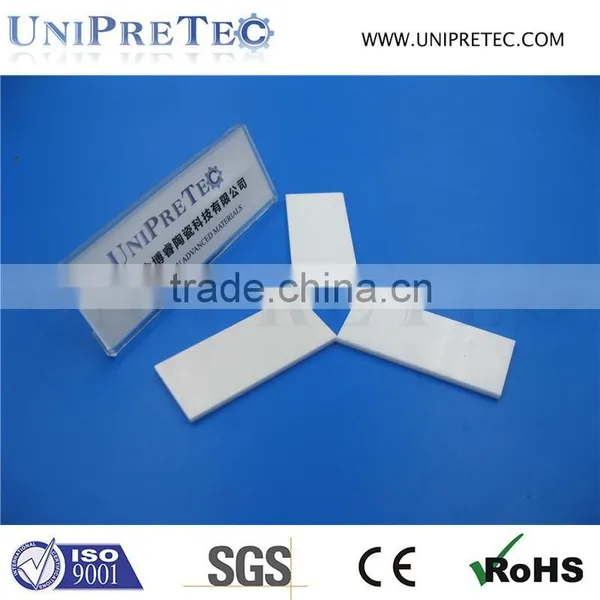

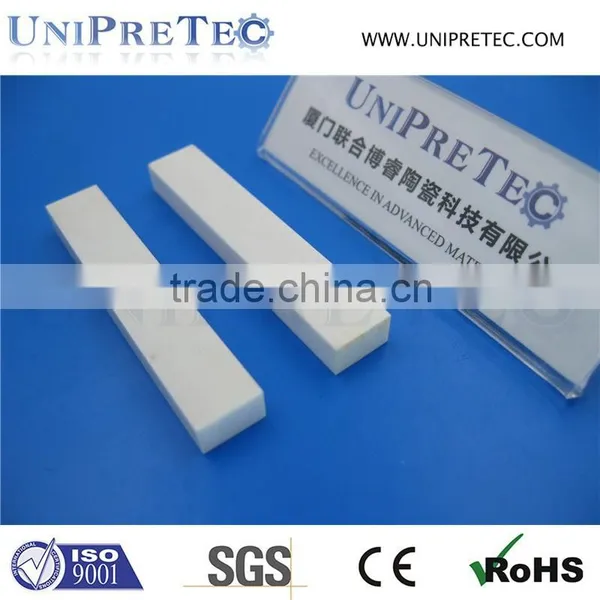

High Strength Al2O3 ZrO2 Ceramic Plate
- 4000 Piece / Pieces per Month
- XIAMEN
- T/T Credit Card
- Sodium Lauryl Ether Sulphate /SLES 70% for personal care
- Precision Ceramic Chuck Semiconductor Equipment
- Ceramic Tubes with Fine Tube Sizes Available For Customization
- Corrosion Resistant and Insulating Alumina Ceramic Tube
- ST.CERA Customized Precision Zirconia Ceramic tube
- Semiconductor Ceramic Components Ceramic Focusing Rings
Product Details
Place of Origin: | Fujian, China | Type: | Ceramic Plates | ||
Material: | Zirconia Ceramic | Model Number: | UPT15020348 | Brand Name: | UNIPRETEC |
Product Description
Advanced technical ceramics are frequently being used to replace metals, polymers, and refractory materials in a wide variety of applications due to their notable high temperature capability, hardness, and electrical properties. By altering the chemical formulation or manufacturing processes, their properties can be tailored to meet a large range of demanding conditions. When used correctly, ceramics have the ability to increase product lifespan, increase efficiency, reduce overall maintenance costs, and improve product performance. |
Unit | 95% Al2O3 | 99% Al2O3 | ZrO2 | GP-Si3N4 | |
Color | - | white | ivory | white | gray |
Density | g/cm³ | 3.65 | 3.88 | 5.95 | 3.22 |
Water Absorption | % | 0 | 0 | 0 | 0 |
Young's Modulus | Gpa | 280 | 350 | 205 | 295 |
Vickers Hardness | Gpa | 14 | 20 | 12 | 18-20 |
Flexural Strength ( at R.T. ) | Mpa | 280 | 300 | 900 | 650 |
Compressive Strength ( at R.T. ) | Mpa | 2000 | 2500 | 2200 | 2200 |
Thermal Conductivity ( at R.T. ) | W/(m.K) | 18-25 | 30 | 2.2 | 25 |
Thermal Shock Resistance | ΔT(°C) | 220 | 180-200 | 280-350 | 450-650 |
Max. Working Temperature ( at R.T. ) | °C | 1500 | 1700 | 850 | 1200 |
Volume Resistivity ( at R.T. ) | Ω.cm | >10^15 | >10^14 | >10^12 | >10^14 |
Dielectric Constant (1 MHz at R.T. ) | - | 9.50 | 9.80 | 26 | 8.20 |
Dielectric Strength | kV/mm | 16 | 22 | - | 16 |
- Chemical Industry (corrosion protection); |
- Apparatus & Mechanical Engineering (wear resistance, insulating properties); |
- Avionic & Aerospace Technology (insulating properties, high-temperature stability); |
- Forming Technology (wear resistance, hardness, surface properties); |
- Microtechnology (insulating properties, corrosion protection, wear resistance); |
- Automotive Technology (corrosion protection, insulating properties, wear resistance); |
- Testing Methods (insulating properties, wear resistance); |
- ...... |
As a professional company in advanced ceramic industries, UNIPRETEC is manufacturing and supplying high quality and high precision ceramic components for clients from worldwide. Our ceramic products are widely used in various fields of automotive, metallurgy, machinery, electronic & electrical, food, chemical, medical and so on. With experienced engineers and talented workers, we are able to evaluate projects and drawings properly, make valuable suggestion, supply satisfying products. Our materials including:
- Aluminium Oxide ( 95% 96% 99% 99.5% 99.7% Al2O3 )
Aiming at building long term cooperation relationship with our clients, we set our motto as "Quality First". Far now, our products have been exported to North Amirica, East Europe, West Europe, East Asia, Southeast Asia and get good reputation from our client. |

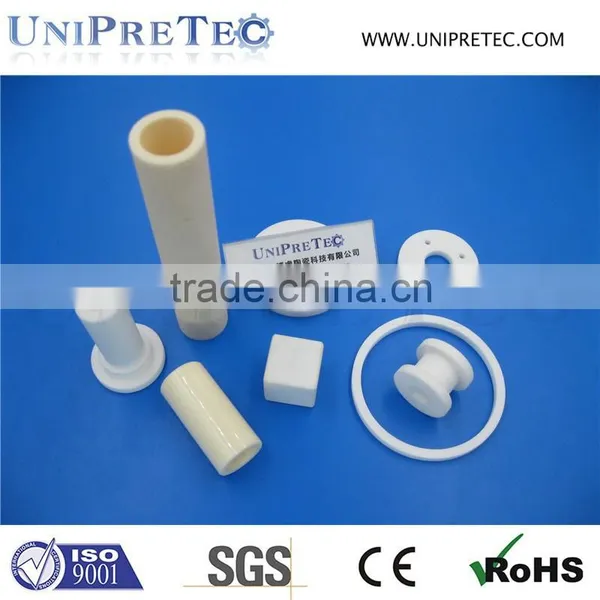

--- ZrO2 Zirconia Ceramic Parts --- --- Ceramic Grinding Media --- --- Al2O3 Alumina Ceramic Parts ---
