Specifications
1)2.5hp gasoline engine2)With new designed OHV
3)The lubrication of splash
4)Lose noise,high efficiency,Advanced oil alarm

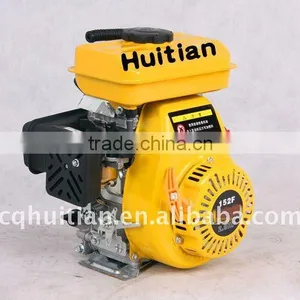

2.5HP engine:
Detailed information:
A.The machinery has the merit of great power,high efficiency and low emission.With new designed OHV and high precison of moving parts that are mostly made of aluminum alloy,the engines has advantage of compact structre,low noise and easy maintenance and carring.Adopting cylinder heads to aeration path and increasing the proportion of heat plate,it is useful to reduce temperature and improve the efficiency as well as the reliablity.
B.In adoption of high efficient air cleaner,with the choices of dry type,half-dry type,oil bath type,the engines can sustaine durable running even if in any tough conditions.Using governor arm and governor weight ,the machines become reliable and easy to operate.
C.With the lubrication mode of pressure and splash,lubrication efficiency being greatly improved,each part of the engine could be fully lubricated to extedn its lift time greatly
D.Advanced oil alarm system ensures the security and prevents accidents,recoil start makes it easy and reliable to start,and electric start is another option.Different kinds of PTO shafts meet various demands of end-products and a big fuel tank extends the working time greatly.As excellenty power for various machine tools,the engine can be widely used in argriculture,foresty,gardening.etc.
Specification:
| Item | Engine model | HT152F |
| Engine | Engine type | Single-cylinder,4stroke,forced air cooling gasoline engine |
| Displacment(cc) | 97 | |
| BoreXstroke(mm) | 52x46 | |
| Max output hp(kw)/rpm | 2.2(1.4)/3600 | |
| Compression ratio | 6.8:1 | |
| Max Torque(N.m/rpm) | 3.7/3000 | |
| Fuel tank capacity(L) | 1.4 | |
| Engine oil capacity(L) | 0.35 | |
| Oil consumption(g/kw.h) | 450 | |
| Lubrication system | Spalash | |
| Ignition system | Transistor magneto | |
| Starting system | Recoil start | |
| Size | Dimension(LxWxH)(mm) | 290x290x365 |
| Packing | Carton | |
| N.W/G.W(kg) | 8.5/9.5 | |
| 20GP/40HQ(SET) | 960/1862 |
