hybrid solar inverter 4kw with pure sine wave outform

FOB Price

USD $545 - $565 / Piece

20 Pieces(Min.Order)

Supply Ability 300 Piece / Pieces per Month
Port Shenzhen
Payment Terms:D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	HBetter /OEM	Model Number:	HBBS-4000W
Output Power:	601 - 800KW	Output Type:	Single	Size:	470190340MM
Weight:	38Kg	Input Voltage:	AC: 220V/240V/110V/100V±35%; DC: 24V/48V	Output Voltage:	220/240V/100V/110V±3%
Type:	Other, AC /AC, DC /AC	Output Frequency:	50Hz±0.5 / 60Hz±0.5	Output Current:	50A

Product Description

Detailed specification of pure sine wave Solar power inverter 4kw with 40A MPPT solar charger .

Specifications

pure sine wave Solar power inverter 4kw with 40A MPPT solar charger .

1. Pure sine wave off-grid solar power inverter with charger inside.

2. Suitable for 99.99% load, integrated with MPPT controller, transfer efficiency can reach to 98%,

with pure copper transformer, good stability, high reliability, overload with 300% of rating load

can continue for 20s , three phases intelligent charge, eight kinds of battery modes for choosing.

3. Over-voltage, low-voltage, short-circuited, over-temperature, over-load protection functions,

solar energy generate and can switch between AC freely

4. HBBS solar power inverter adopts low quiescent current ,and power saver mode to reduce power

consumption to 10W(3S sensing cycle),It can extract max power from various batterier with

different protections, and low voltage trip can be selected(9.5V/10V or 10/10.5V).

5. Uses PFC(power factor correction) for charger, which has less power consumption than

conventional units.

6. It has 15s delay before transfer when HB resumes, and overload protection when our HB pure sine

wave inverter equips with generator.

7. 10ms typical transfer time between battery and AC, which guarantees power continuity of HBBW

charger. Uses selectable input AC voltage (184-253V or 154-253V) for different kinds of loads.

8. It can offer 3-step intelligent battery charging, and equipped with 8 preset battery type selector

for totally flat batteries.

9. LCD status display, battery/AC priority switch, USB communication port are available for our HBBS

pure sine wave inverter, it also has 17 alarms/warnings for easier operation and trouble-shooting,

and ability to switch the unit on/off. In addition, select/deselect power saver mode can be used

too.

10. Durable construction for long life under extreme environmental conditions

11. Advanced microprocessor, pure copper transformer inside and pure copper DC terninal port

outside .

12. CE, FCC , Rohs Cert. High quality pure sine wave power inverter .

13. Intelligent fan control mode.The fan work at Temperature ≥30℃.the inverter will protect by itself

at temperature ≥100℃

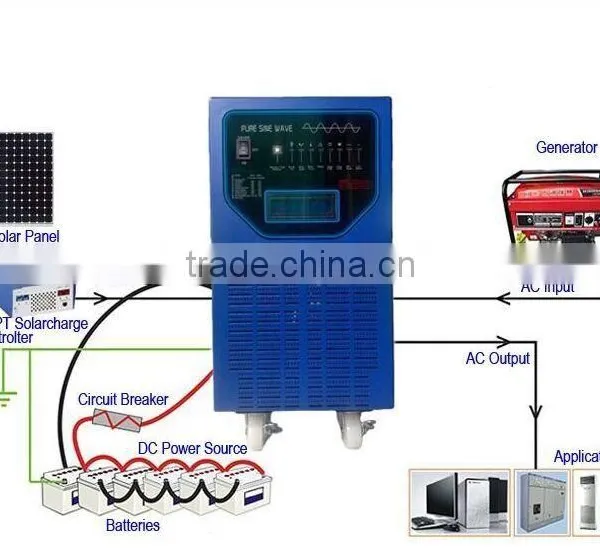

The Picture of pure sine wave Solar power inverter 4kw with 40A MPPT solar charger .

1. Certification of CE,ROHS,TUV,FCC.

2. Pruchasing durable and high quality materials .

3. Strict quality controll system throughout the procution process.

4. Advanced R&D team ,Rich experience in production, Professional after-sales service .

5. We can produce nice inverter according to customer's requirements as OEM or ODM.

6. Semi-finished or Finished products test and overall check .

7. On-time shipment , pre-shipment product quality safeguards ,competitive price, safety protection.

1. The introduction of our factory(pure sine wave power inverter supplier)

We are a professional manufacturer who specialize in pure sine wave inverter and modified sine wave power inverter for more than 10 years, our scope is to manafacture diverse power inverter from 10 watt to 20k watt ,such as pure sine wave inverter, modified sine wave inverter high frequency inverter, frequency inverter. We have been rapidly developing and strengthening our business in the past years by adhering to the business philosophies of "Quality first, the supremacy of credibility" and "science and technology innovation". Our company has lots of professional and technical personnel and a proficient production team.

If you interested pure sine wave inverter, don't hesistate to contact with us.

2. Important information:

We can manufacture 300W-5000w pure sine wave inverter 48v 220v .12v 220v inverter,48v 220v inverter,pure sine wave inverter,3000w-5000W power inveter,Inverer, Power Inverter, 300w Inverter, Car Power Inverter, Solar Power Inverter, Dc Ac Power Inverter, Car Inverter, Electric Power Inverter, Mini Inverter, Automobile Power Inverter, 12v Power Inverter, 300w Solar Inverter, Ac to Dc Inverter,300W DC to AC inverter,Inverter, Solar Power Inverter, Vector Power Inverter, Dc Ac Power Inverter, , Portable Power Inverter, Auto Inverter, Dc/Ac Inverter, 12v Power Inverter, Dc-Ac Power Inverter, 300w Solar Inverter, Ac to Dc Inverter, dc to ac power inverters, power supply, modified sine wave inverter, 3000w/5000w/8000w power inverter, inverter charger, ups inverter,,12v 220v inverter,24v 220v inverter,48v 220v inverter, 2000w pure sine wave inverter 12v 220v and 48v 220v power inverter, 1000w/2000w/3000w pure sine wave inverter 12v 220v. pure sine wave power inverter.

1. Do I Need A Power Inverter?

Actually, no. This is the only component of a solar energy system that is not absolutely required. However, if you don't use one, you will not have 120 volts AC and will have use battery power alone. This might be acceptable in a small RV or cabin, but most people want to use normal AC appliances.

2. What's The Difference Between 12, 24, And 48 Volt Inverters?

This refers to the input voltage from the battery bank. The main consideration is that at higher voltages the current is less so that you can use smaller wires between your solar panel array and your battery bank. Of course, when you decide on a system voltage, the Solar Panels, Inverter, and Battery Bank all need to use the same voltage.

3. What's The Difference Between A Pure Sine Wave Inverter And A Modified Sine Wave Inverter?

The AC sine wave of a pure sine wave inverter is just as good as the utility company's AC power. A modified sine wave inverter is not as close, but is still quite satisfactory in most cases. Certain motor control circuits don't like the modified wave. Modified sine wave inverters are also much less expensive.
