12v 220v 5000w solar system inverter with mppt solar controller
- 300 Piece / Pieces per Month
- Shenzhen
- D/P D/A Credit Card
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HBetter /OEM | Model Number: | HBBS- 5000W |
Output Power: | 601 - 800KW | Output Type: | Single | Size: | 470*190*340MM |
Weight: | 48KG | Input Voltage: | AC: 220V/240V/110V/100V±35%; DC: 24V/48V | Output Voltage: | 220/240V/100V/110V±3% |
Type: | Other, AC /AC, DC /AC | Output Frequency: | 50Hz±0.5 / 60Hz±0.5 | Output Current: | 50A |
Product Description
Detailed specification of 12v 220v 5000w solar system inverter with mppt solar controller .
Specifications
12v 220v 5000w solar system inverter with mppt solar controller.
1. Pure sine wave off-grid solar power inverter with charger inside.
4. HBBS solar power inverter adopts low quiescent current ,and power saver mode to reduce power
consumption to 10W(3S sensing cycle),It can extract max power from various batterier with
different protections, and low voltage trip can be selected(9.5V/10V or 10/10.5V).
5. Uses PFC(power factor correction) for charger, which has less power consumption than
conventional units.
6. It has 15s delay before transfer when HB resumes, and overload protection when our HB pure sine
wave inverter equips with generator.
7. 10ms typical transfer time between battery and AC, which guarantees power continuity of HBBW
charger. Uses selectable input AC voltage (184-253V or 154-253V) for different kinds of loads.
8. It can offer 3-step intelligent battery charging, and equipped with 8 preset battery type selector
for totally flat batteries.
9. LCD status display, battery/AC priority switch, USB communication port are available for our HBBS
pure sine wave inverter, it also has 17 alarms/warnings for easier operation and trouble-shooting,
and ability to switch the unit on/off. In addition, select/deselect power saver mode can be used
too.
10. Durable construction for long life under extreme environmental conditions
11. Advanced microprocessor, pure copper transformer inside and pure copper DC terninal port
outside .
12. CE, FCC , Rohs Cert. High quality pure sine wave power inverter .
13. Intelligent fan control mode.The fan work at Temperature ≥30℃.the inverter will protect by itself
at temperature ≥100℃

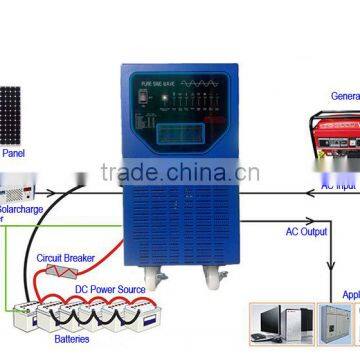

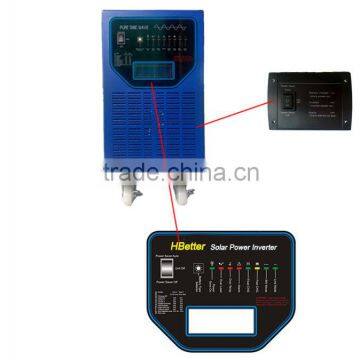

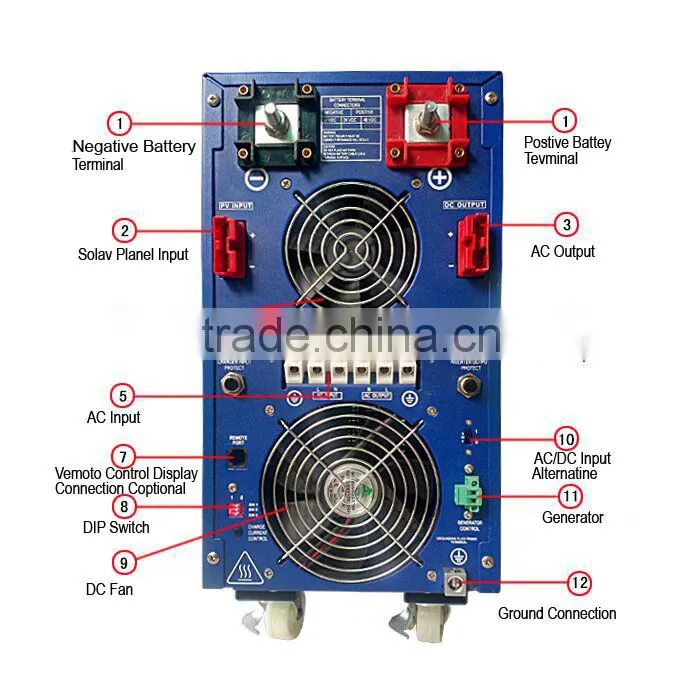

The Picture of 12v 220v 5000w solar system inverter with mppt solar controller.
Actually, no. This is the only component of a solar energy system that is not absolutely required. However, if you don't use one, you will not have 120 volts AC and will have use battery power alone. This might be acceptable in a small RV or cabin, but most people want to use normal AC appliances.
2. What's The Difference Between 12, 24, And 48 Volt Inverters?
This refers to the input voltage from the battery bank. The main consideration is that at higher voltages the current is less so that you can use smaller wires between your solar panel array and your battery bank. Of course, when you decide on a system voltage, the Solar Panels, Inverter, and Battery Bank all need to use the same voltage.
3. What's The Difference Between A Pure Sine Wave Inverter And A Modified Sine Wave Inverter?
The AC sine wave of a pure sine wave inverter is just as good as the utility company's AC power. A modified sine wave inverter is not as close, but is still quite satisfactory in most cases. Certain motor control circuits don't like the modified wave. Modified sine wave inverters are also much less expensive.
