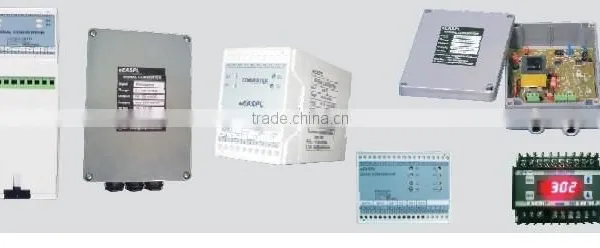

Signal Converter
Technical Detail :-
Model : SC4W
Type : 4 - wire
Input : RTD Pt-100, 3 wire,T/C (J K R S T E B type),DC Amp,
AC Amp, ACV, DCV, Resistance, Speed, Frequency
Input ranges : Pl. specify
Output : 4-20 mA, 0-20 mA, 1-5 V, 0-10 V(Single to Quad Output )
Output ripple : Less than ± 0.25% of span (i.e. 0.05 mA) R.M.S
Load on Output : 750 Ω(formAO/p)& > 100 K Ω (forVolt O/p)
Isolation : Optical and Galvanic Isolation
Linearity & Accuracy : Within ±0.25% ofSpan
Power fuse : 0.25Amp
Line voltage Variation effect : 0.1% (within ±10% change)
Response : Less than 1 sec.
Anti-Humidity : Acryform conformal coating Treatment On PCB.
Insulation Strength : Tested at 2.0 KV for all possible combination for one minute &
At 500 VAC between electronics & earth.
Drift : Within ±0.5% for 6 months
Temp. Drift : ± 0.05% of Span per °C
Power Supply : 110 / 230 VAC±10%, 50 Hz / 24VDC
Operating ambient Temp.&Humidity : 0 to55°C& 5 to95% Rh
Mounting : Din rail / Field ( Imported ABS plastic)
Terminal : Suitable for upto 2.5 sq.mm cable
Adjustment : Zero &span are adjustable by two individual trim pots.
Burn out protection : Upscale (T/c,RTD&R), down scale (others)
