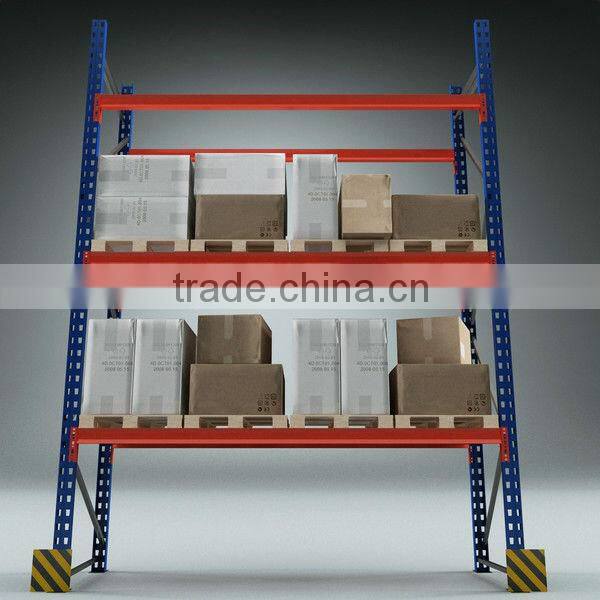

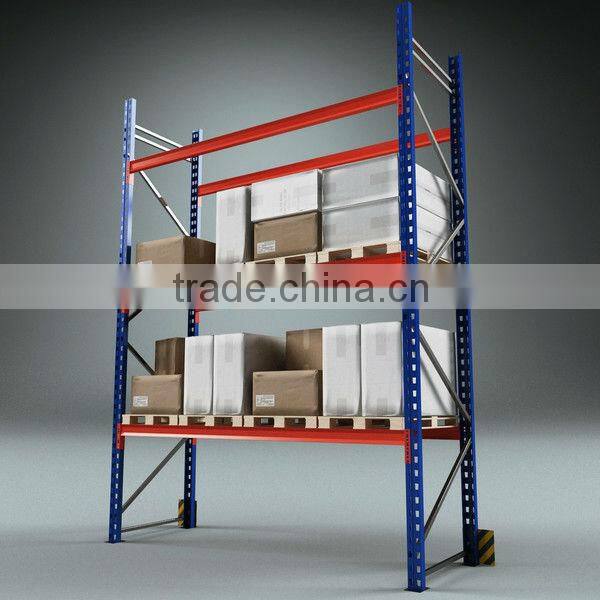

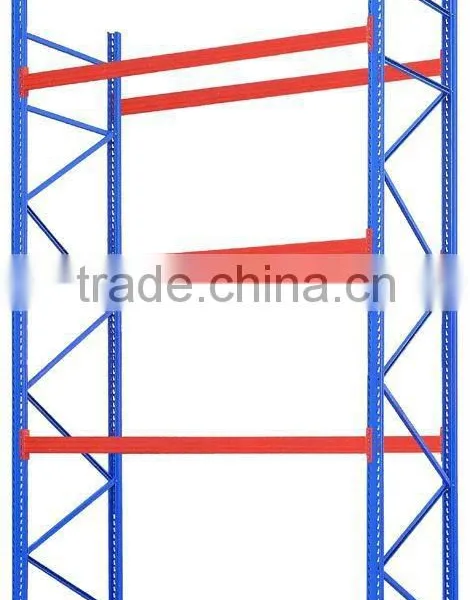

Help Center3 Levels Heavy Duty Storage Racking
US$ 58 - 258
MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
AMJ
Model Number:
AMJ-W007
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heavy Duty Warehouse Rack for Pallet UseNegotiableMOQ: 100 Sets -
Doubel Side or Signal Side Cantilever RackNegotiableMOQ: 100 Sets
-
Heavy Duty Cantilever Shelf,storage ShelfNegotiableMOQ: 100 Sets
-
4 Layer Medium Duty Warehouse RackNegotiableMOQ: 100 Sets
-
Cantilever RackNegotiableMOQ: 100 Sets
Place of Origin
Jiangsu, China
Brand Name
AMJ
Model Number
AMJ-W007
Type
Plate Type
Material
Steel
Feature
Corrosion Protection
Use
Warehouse Rack
Certification
Other, ISO9001:2008
Depth
1.8mm 2.0mm
Weight Capacity
1000-3000kgs
Width
600-1100mm
Height
2000-8000mm
Specifications
Storage racking:Material:cold rolled steel
Finish:powder coating
Heavy duty loading
Certification:CE,BV
Storage racking:
| Product Name | Storage racking |
| Brand Name | AMJ |
| Features | 1) Beams adjustable in 75mm pitch interval |
| 2) Customization available as per specific requirements | |
| 3) Easy up botless | |
| 4) Optimized storage options within minimum space | |
| 5) Comprehensive range of decking and accessory options | |
| 6) Safety standards well met. | |
| Loading Capacity/Level | 150-3000kgs UDL per level |
| Dimensions | Height: As your request |
| Depth: As your request | |
| Length: As your request | |
| Other customized dimensions available |
Detailed specifications:

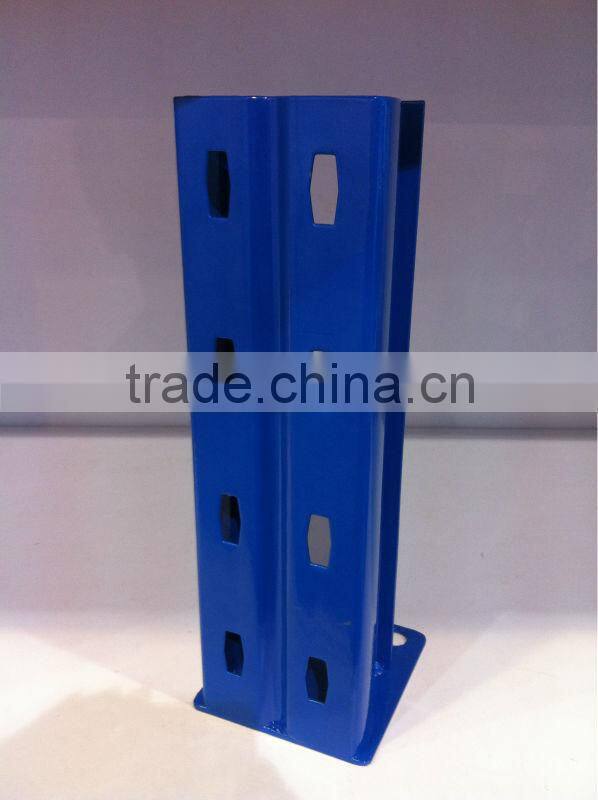

1. Upright:
70*90*2.0mm
60*80*2.0mm
40*80*2.0mm
30*50*2.0mm
| C-type Upright | ||||
|
Model | Depth(mm) | Width(mm) | |
| U-1 | 70 | 90 | ||
| U-2 | 60 | 80 | ||
U-3 |
40 |
80 | ||
| U-4 | 30 | 50 | ||
2. Beam: 50*100*1.5mm,50*100*2.0mm
50*120*1.5mm,50*120*2.0mm
50*140*1.5mm,50*140*2.0mm
50*160*1.5mm,50*160*2.0mm
50*80*(1.5-2.0)mm
40*60*(1.0-1.5)mm
30*50*(1.0-1.5)mm
| Step Beam | Box Beam | |||||||||
|
|
Model | Depth(mm) | Width(mm) |
|
Model | Depth(mm) | Width(mm) | |||
| B-1P | 50 | 80 | B-1R | 50 | 80 | |||||
| B-2P | 50 | 100 | B-2R | 50 | 100 | |||||
| B-3P | 50 | 110 | B-3R | 50 | 110 | |||||
| B-4P | 50 | 120 | B-4R | 50 | 120 | |||||
| B-5P | 50 | 140 | B-5R | 50 | 140 | |||||
| B-6P | 40 | 60 | B-6R | 40 | 60 | |||||
| B-7P | 30 | 50 | B-7R | 30 | 50 | |||||

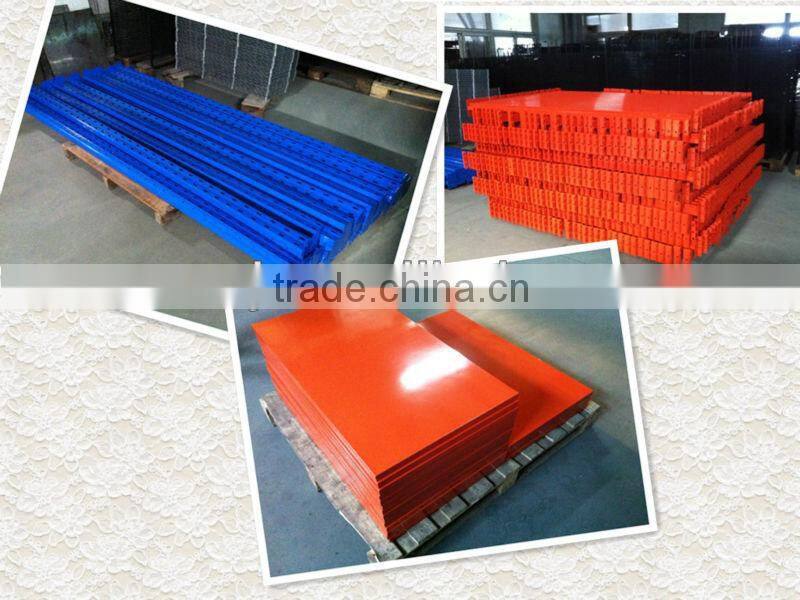

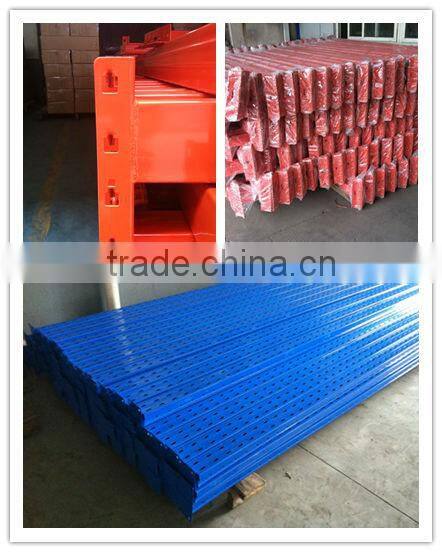

Mass Production:

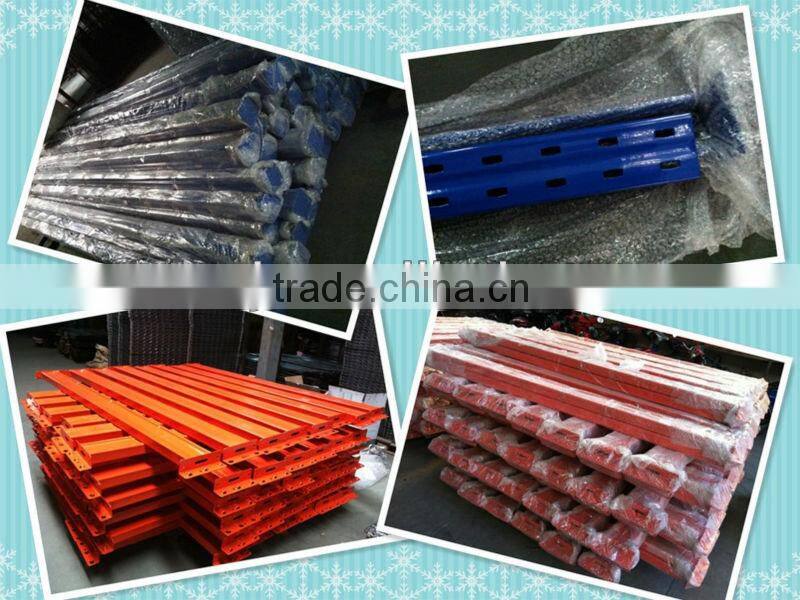

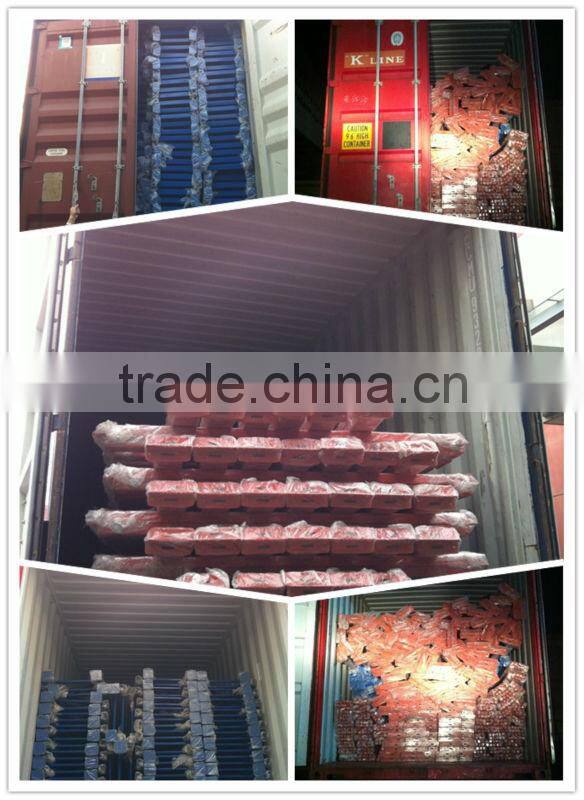

Loading containers:
Certificates:
Some of our customers:
