Help CenterES-1 Load Cell
US$ 69.99 - 999.99
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Everight
Model Number:
ES-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China;Ningbo China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
Everight
Model Number
ES-1
Usage
Pressure Sensor
Theory
Resistance Sensor
Output
Switching Transducer
Specifications
load cell1,manufacturer
2,anti-side load capability
3,compact structure
4,for scale use
load cell
Features

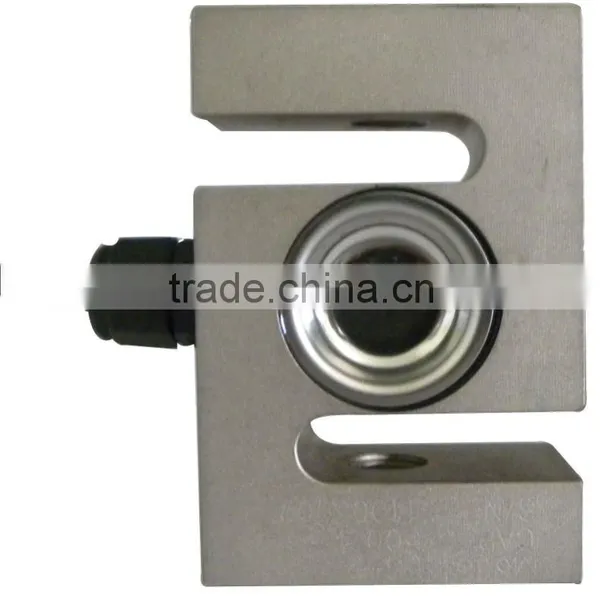

The elastomer of ES-1, S-type load cell, is made from high quality alloy steel. High precision and good output symmetry; anti-side load capability; compact structure; easy installation.
Specifications
Output sensitivity |
mV/V |
2.00 |
|||
Nonlinearity |
%FS |
≤0.02 |
|||
Hysteresis |
%FS |
≤0.02 |
|||
Repeatability |
%FS |
≤0.01 |
|||
Zero balance |
%FS |
≤1.00 |
|||
Creep (in 30min) |
%FS/30min |
≤0.02 |
|||
Zero efficient |
%FS/10°C |
≤0.04 |
|||
Rated output efficient |
%FS/10°C |
≤0.02 |
|||
Input resistance |
Ω |
385±10 |
|||
Output resistance |
Ω |
350±3 |
|||
Insulation resistance |
MΩ |
≥5000 |
|||
Safe overload |
%FS |
150 |
|||
Compensated Temp.range |
°C |
-10~+40 |
|||
Recommended Supply voltage |
V |
5~15 |
|||
|
4-Core shield cable 3 m |
Input |
+: Red |
-:Black |
||
Output |
+:Green |
-:White |
|||
Shield |
Yellow or Bare |
||||
Warning: It will affect the function of sensor to change the cable’s length!
