Specifications
Zirconia Ceramic pulley1.High toughness
2.Pure material
3,High intensity and hardness
4,Customised.

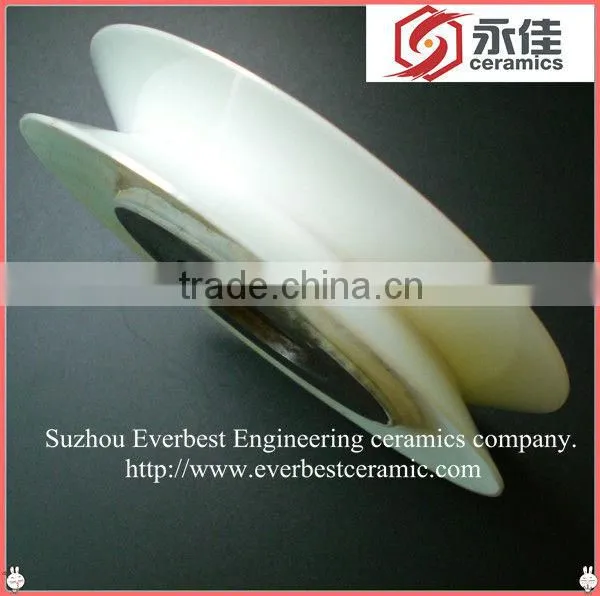

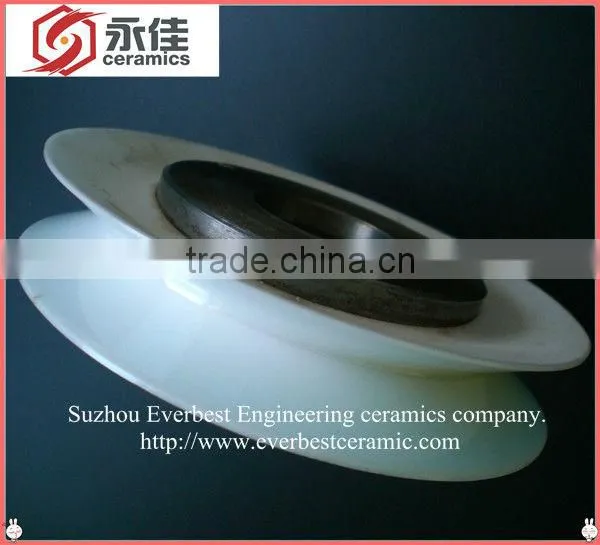

Large Pecision Zirconia(ZrO2) ceramic pulley
Feature
Zirconia ceramic pulley has the advantages of high wear-resisting,good corrosion resistance , high intensity , precision process, good smoothness, high temperature tolerance and so on.It is widely used in different electronic equipment and mechanical filed.
Technical parameter of zirconia.
Items |
Unit |
Data |
Density |
g/cm3 |
6 |
Flexural Strength |
MPa |
1000 |
Compressive Strength |
MPa |
3000 |
Modulus of Elasticity |
GPa |
200 |
Impact Resistance |
MPa·m1/2 |
8 |
Weibull Modulus |
m |
22 |
Vickers Hardness |
HV0.5 |
1300 |
Thermal Conductivity |
W/mk |
<2 |
Highest Application Temperature |
°C |
1000 |
Volume Resistivity at 20°C |
Ω.cm20 |
>1013 |
Dielertric strength |
KV/mm |
- |
Thermal expansion |
X10-6/K |
10 |
Suzhou Everbest engineering ceramic Co.,LTD,which is specialized in designing and manufacturing structure ceramic products and related parts. which has more than 14 years experience in ceramic structures.
Our general ceramic parts include: ceramic tube, ceramic rod, ceramic plate, ceramic disc valve, ceramic wafer, ceramic seal, ceramic bearing bushing, ceramic valves, ceramic pump plunger, ceramic beam, ceramic roller, ceramic shaft, ceramic screw, ceramic sleeve, ceramic washer, ceramic lamp holder, ceramic insulator, ceramic nozzle, ceramic lining, ceramic guide, ceramic bushing, ceramic substrates, ceramic piston, ceramic ferrule etc.
Application
1.Ceramic tube or Ceramic shaft for aquatic animals equipment filter pump,it has
Wear resistant and corrosion function, increase the service life of the product.
2.Ceramic plunger for high pressure cleaner.
3.Wearlessness, resistant acid-base and high intensity ceramic assembly apply to petroleum, chemical and chemical industry.
Marks:
Shaped as customers' requirment and drawing.If you are interested in our products,please don't hesitate to contact with us,we will reply to you at the first time and provide our the best price,the highest quality,the fastest delivery and the best professional service to you.
Remarks
Customized production is available, for more information, please do not hesitate to tell me.Dimension, Tolerance, Surface Roughness, Concentricity, Perpendicularity and otherspecification are upon your requirements.
