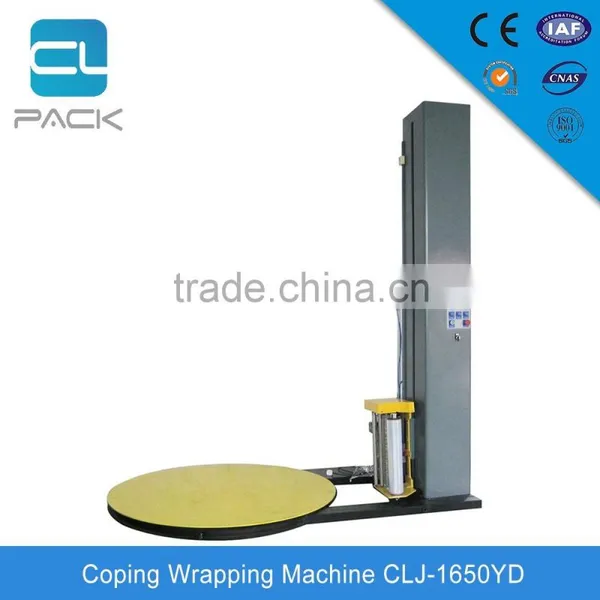

CLJ-1650YD Packaging Products Stretch Film Pneumatic Luggage Wrapping Machines
|
Brief introduction: Applicable object: Mainly used in the pile of goods is light and tall on the instability of pallet packaging; protect the goods won`t collapse in the packaging process; especially suitable for the cans, empty bottles, etc. Properties of products: It`s adopt pneumatic coping device, the coping uses separate lifting column, stable and reliable. |
Model |
CLJ-1650YD |
Power/Voltage |
turntable 0.75kw, film shelf 0.25kw, stand column 0.37kw, coping 0.37kw/ 220V AC/50HZ |
Specification of object |
(500-1200)mm×(500-1200)mm(L×W) |
Max. packaging height |
L type:2000mm/H type:2400mm |
Efficiency |
20-40 piece/hour |
Speed of turntable |
6-14rpm/speed are variable frequency and adjustable; gradual start and off |
Diameter of turntable |
1650mm |
Height of turntable |
85mm |
Max. load weight of turntable |
2000kg |
Film shelf system |
Pre-stretching turntable, Pre-stretching can reach250%, automatic transport film, speed are variable frequency and adjustable, resist stretch film shelf are optional. |
Pillars` lift |
Double chain structure, lifting speed are variable frequency and adjustable |
Control system |
P.L.C controller, twisting layers and the frequency is variable, automatic reset Turntable, and automatically sensing height of goods |
Packaging material |
LLDPE stretch film, thickness(T)17-35um, width(W)500mm |
Dimension |
2545mm×1650mm×(2540-2890)mm |
Weight |
700kg |
