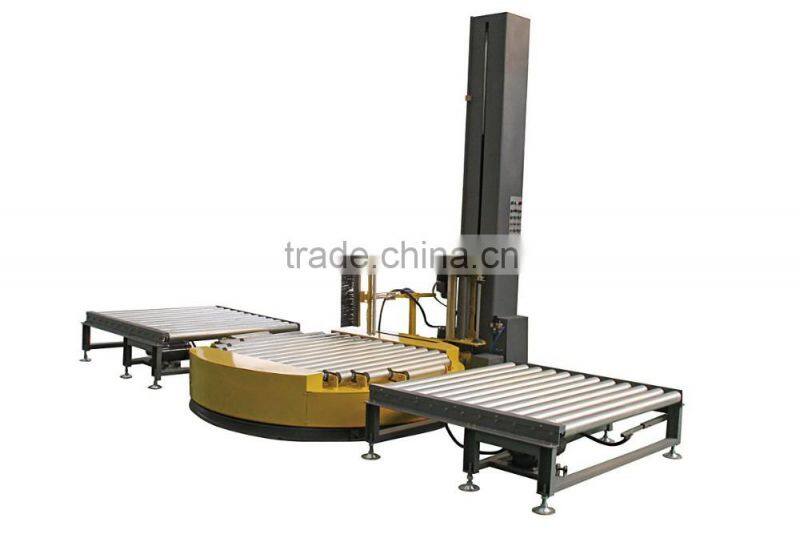

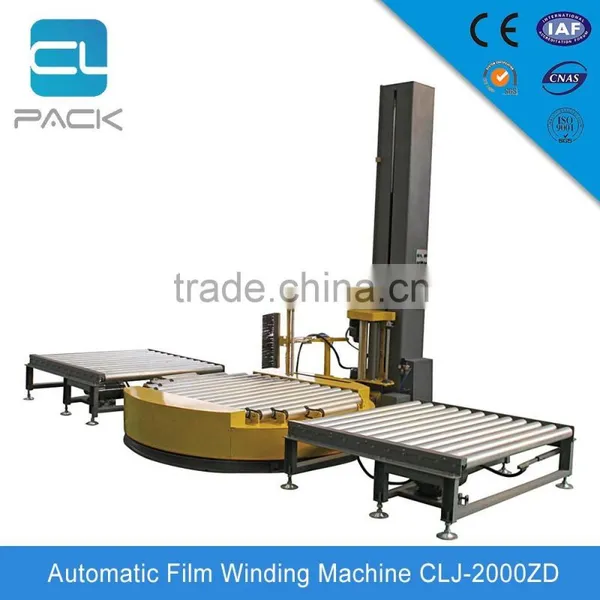

CLJ-2000ZD New Style Simple Operation Wrapping Machine For Upvc Profile
|
Brief introduction: Applicable objects: suitable for assembly work line, suitable for automatic packaging of modern enterprise requirements. To improve the packing efficiency, reduce labor intensity and effective utilization of human resources, play a very active role. At present, this product has been widely used in packing line of the chemical, electronics, food, beverage, paper and other industries. Advantages: simple operation and high range of automation. |
Model |
CLJ-2000ZD |
Power /Voltage |
turntable 0.75kw,film shelf 0.25kw,stand column 0.37kw/220V AC/50HZ |
Specification of object |
(500-1200)mm×(500-1200)mm(L×W) |
Max. packaging height |
L type:1600mm H type:2400mm |
Efficiency |
30-50 piece/hour |
Speed of turntable |
6-12rpm speed are variable frequency and adjustable; gradual start and off |
Diameter of turntable |
2000mm |
Height of turntable |
410mm |
Max. load weight of turntable |
2000kg |
Film shelf system |
Pre-stretching turntable, Pre-stretching can reach250%, automatic transport film, speed are variable frequency and adjustable. |
Pillars` lift |
Double chain structure, Lifting speed is variable frequency and adjustable. |
Control system |
PLC controller, twisting layers and the frequency is variable, automatic reset Turntable, and automatically sensing height of goods. |
Automatic filming and film cutting |
Pneumatic control, automatic filming, film cutting and smooth film. |
pressure of pneumatic system |
0.4—0.8Mpa |
Packaging material |
LLDPE stretch film, thickness(T)17-35um, width(W)500mm. |
Dimension |
2945mm×2000mm×(2333-2733)mm |
Weight |
850kg |
