VHF-Band Moisture Measurement Sensor for Bulk Material

Name: VHF-Band Moisture Measurement Sensor for Bulk Material
Brand: PCE Inst.
SKU: 104809891
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

PCE Inst.

Model Number:

PCE-MWM 240

PCE Deutschland GmbH

Payment & Shipping

Payment Methods:

Port of Shipment:

Hamburg

Delivery Detail:

Delivery time depends on order quantity.

Brand Name PCE Inst.

Model Number PCE-MWM 240

Technical specifications:
Measurement range	0 ... 100 %
Limits of permissible absolute error of the measurements results of the mass fraction of water	Δ= 0.02 +0,025·W
Range of working temperatures	-20 ... +145 °C
Operation mode continous	continuous operation
Measurement period	1 s
Voltage supply - Rated / - Allowable	24 (18 ... 36) VDC
Consumption current, not more than	200 mA
Input power	<0,1 W
Warm-up time at start-up	30 min
Output	RS 485 Modbus RTU, 4-20 mA [RS485: max. cable length 1,000 m; 4-20 mA: max. cable length 100 m (max. cable length to SPS unit)]

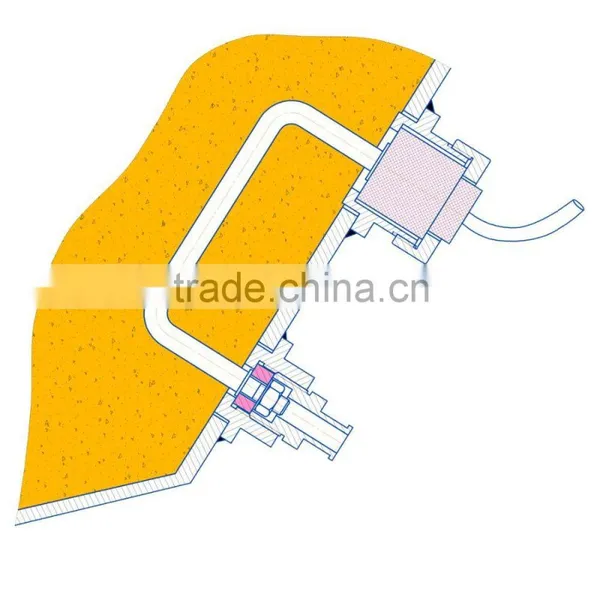

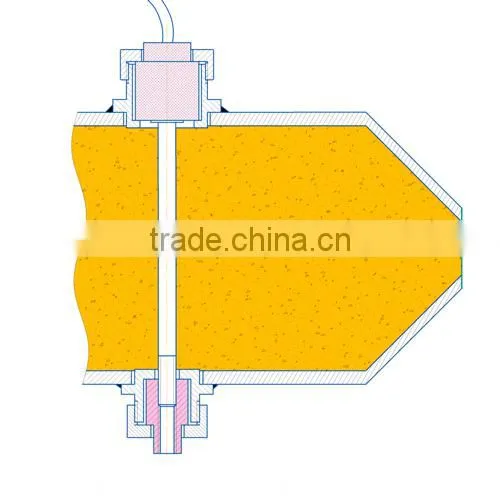

Dimension U-shape probe Rod shape sensor	L 500 ... 1500 mm, Ø 15 ... 30 mm L 250 mm, Ø 14 mm
Overall dimension of the electric unit	255 x 170 x 60 mm
Protection class (sensor)	IP65
Protection class (electric unit)	IP54
Mass U-shape probe Rod shape sensor Electric unit	2 ... x kg 3 kg 2 kg
