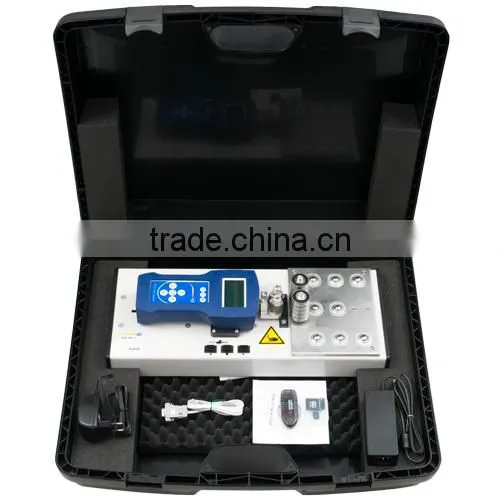

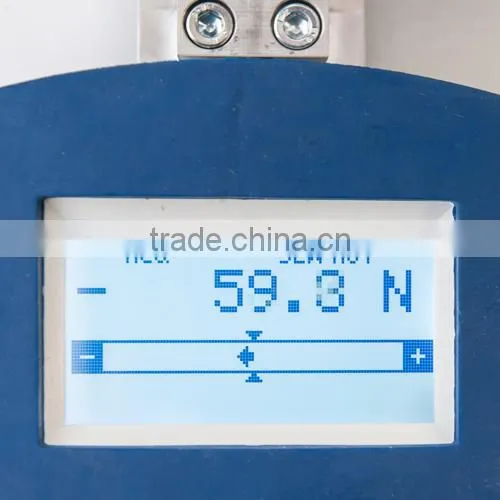

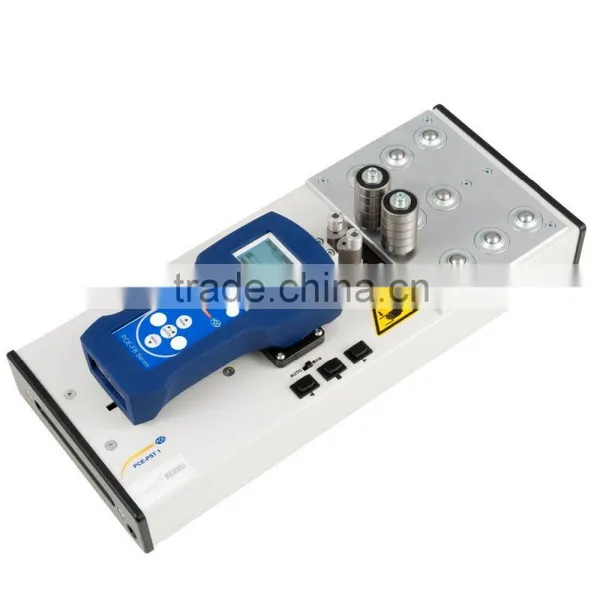

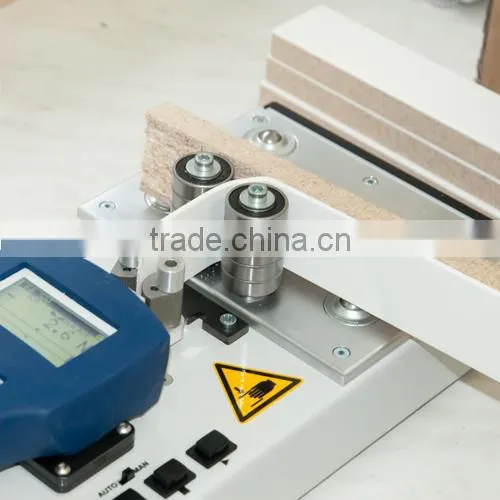

Peel Tester PCE PST 1 is designed for measurement of adhesive forces to 500 N. With a test path of 100 mm and a feed rate of 0.3 m / min, the examination of an edge can be performed in less than one minute. After tensioning the to be tested edge, measurement in automatic mode takes place as soon as the release force of 20 N is reached. The measurement results will be displayed on the display, for example: min., max. values and an average value of the peel force. For the evaluation of the measurement, there is a software which can analyse the various statistical values and display force-time diagram.
Technical specifications:
measuring range: 0 ... 500 N
Measurable edge thickness: 0.4 ... 3.5 mm
Measurable plate thicknesses: 10 ... 64 mm
traversing: 0.3 m / min
traverse: 100 mm
measurement accuracy: ± 0.1% of full scale resolution 0.1 N (10 g)
Max. overload: ± 20%
display: Graphic display 61 x 34 mm with backlight
operating Modes: manual / automatic
interface: USB
Environmental conditions: -10 ... +40 ° C
weight: 9 kg
power supply: ~ 230V / 12V; 1.2A
Dimensions (LxWxH): 490 mm x 210 mm x 150 mm
