Specifications
alumina ceramic tubedensity:3.7/3.9g/cm3;
ZR:up to 5.0 Mpa
MOE:350Mpa
CS:3400Mpa

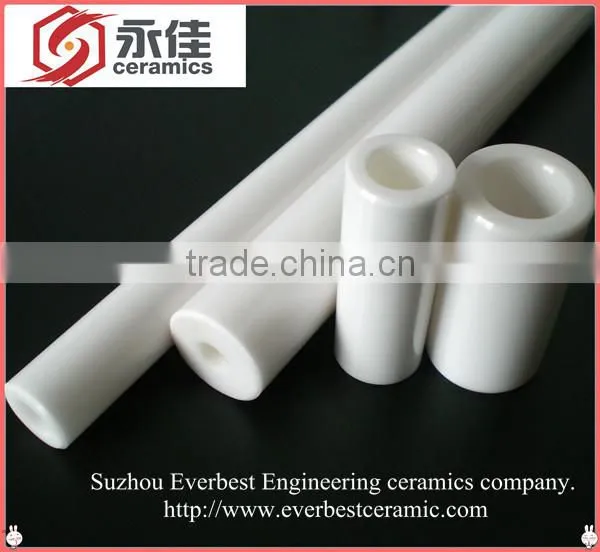

High temperature 99 al2o3 alumina ceramic tube
1,Property
Alumina ceramic rod has the advantage of high insulation, high strength, high corrosion resistance, and high wear resistance.
Items |
Unit |
95%Al2O3 |
99.5%Al2O3 |
Density |
g/cm3 |
3.7 |
3.9 |
Flexural Strength |
MPa |
313 |
340 |
Compressive Strength |
MPa |
3400 |
3600 |
Modulus of Elasticity |
GPa |
350 |
380 |
Impact Resistance |
MPa·m1/2 |
4 |
5.1 |
Weibull Modulus |
m |
10 |
10 |
Vickers Hardness |
HV0.5 |
1800 |
1900 |
Thermal Conductivity |
W/mk |
24 |
27 |
Highest Application Temperature |
°C |
1600 |
1750 |
Volume Resistivity at 20°C |
Ω.cm20 |
>1014 |
>1014 |
Dielertric strength |
KV/mm |
20 |
25 |
Thermal expansion |
X10-6/K |
5.0-8.3 |
5.4-8.3 |
2. Material
Alumina and zirconium ceramic
1) A variety of specifications available.
2) Meet various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) high strength.
6) Used in all electric products, electric heating products and wear resistant machinery parts.
7) OEM, ODM and OBM are welcomed.
4.More about us:
Suzhou Everbest engineering ceramic Co.,LTD is specialized in designing and manufacturing structure cereamic products and related parts.which has more than 14 years experience in ceramic structures.
Our general ceramic parts include: ceramic tube, ceramic rod, ceramic plate, ceramic disc valve, ceramic wafer, ceramic seal, ceramic bearing bushing, ceramic valves, ceramic pump plunger, ceramic beam, ceramic roller, ceramic shaft, ceramic screw, ceramic sleeve, ceramic washer, ceramic lamp holder, ceramic insulator, ceramic nozzle, ceramic lining, ceramic guide, ceramic bushing, ceramic substrates, ceramic piston, ceramic ferrule etc.
Remarks
Shaped as customers' requirement and drawing.If you are interested in our products, please don't hesitate to contact with us,we will reply to you at the first time and provide our the best price,the highest quality,the fastest delivery and the best professional service to you.
