Specifications
alumina ceramic tubedensity:3.7/3.9g/cm3;
ZR:up to 5.0 Mpa
MOE:350Mpa
CS:3400Mpa

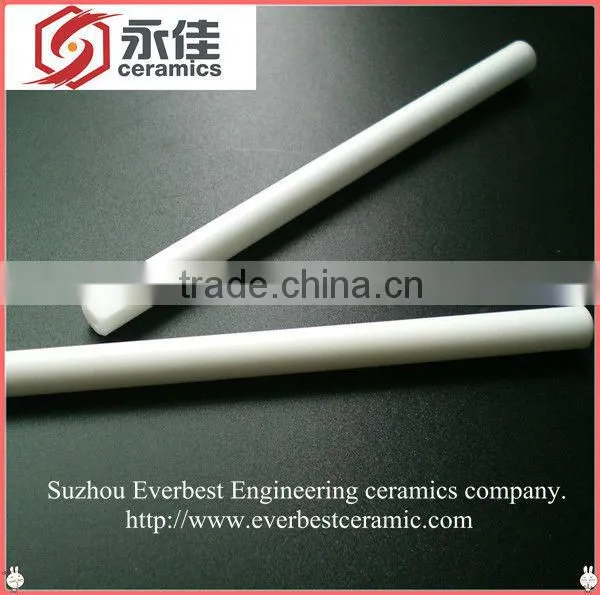

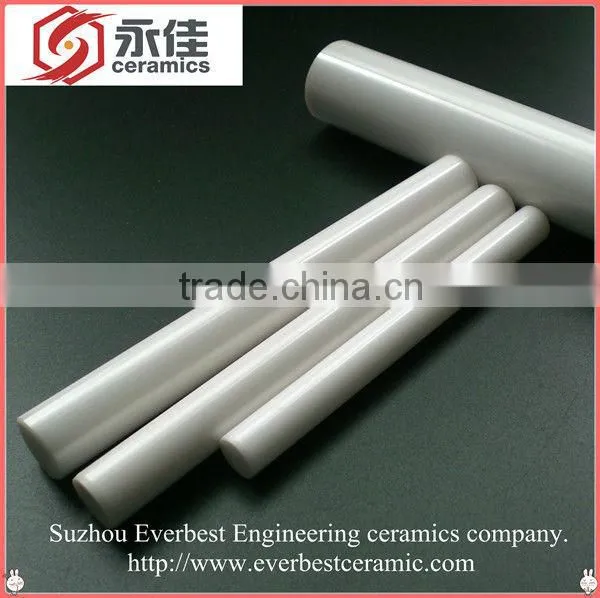

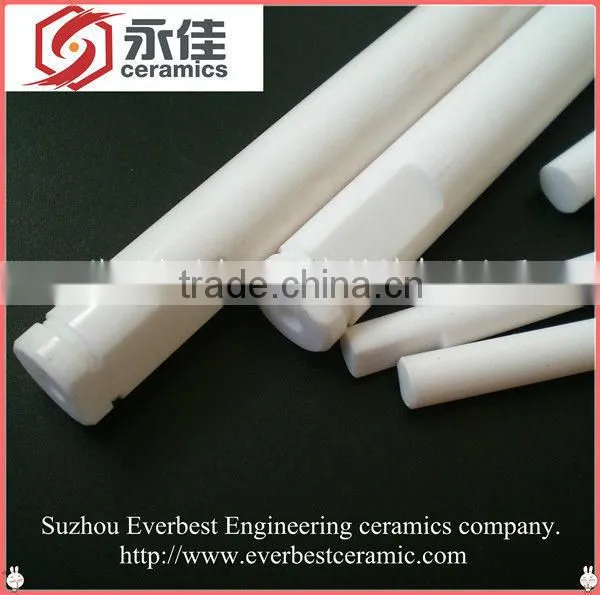

High strength wear resistant 99 tube al2o3
Introduction about Our company.
Our company called SUZHOU EVERBEST ENGINEERING CERAMICS CO.,LTD,we established our company in2001,with more than ten years experience on designing and manufacturing,we mainly supply wear-resistant,high temperature corrosion-resistant,high hardness and good insulation industrial ceramic parts.
Ceramic products including:alumina oxcide ceramic parts,zirconia oxcide ceramic parts,alumina zirconia ceramic parts(ZTA) and pressureless sintering ssic parts.
Forming method:
dry powder pressed
isostactic pressing,
hot die casting.
Main products:
1,high wear-resistant ceramic shaft and sleeve;
2,the inner hole polished ceramic long sleeve;
3,high voltage ceramic plunger.
Technic parameter of alumina
Items |
Unit |
95%Al2O3 |
99.5%Al2O3 |
Density |
g/cm3 |
3.7 |
3.9 |
Flexural Strength |
MPa |
313 |
340 |
Compressive Strength |
MPa |
3400 |
3600 |
Modulus of Elasticity |
GPa |
350 |
380 |
Impact Resistance |
MPa·m1/2 |
4 |
5.1 |
Weibull Modulus |
m |
10 |
10 |
Vickers Hardness |
HV0.5 |
1800 |
1900 |
Thermal Conductivity |
W/mk |
24 |
27 |
Highest Application Temperature |
°C |
1600 |
1750 |
Volume Resistivity at 20°C |
Ω.cm20 |
>1014 |
>1014 |
Dielertric strength |
KV/mm |
20 |
25 |
Main purpose:The Aquarium Equipment filtering pump with ceramic shaft;Ceramic plunger for high pressure cleaner chemsitry;precision machinery with wear-resistant,corrosion-resistant;high temperature mechanical parts.
Remarks.
Shaped by your drawing.if you are interested in our products,please don't hesitate to contact us!
