Specifications
alumina ceramic tube 99 al2o31.High insulation
2.high strength/corrosion resistance
3.high wear resistance
4.custom made

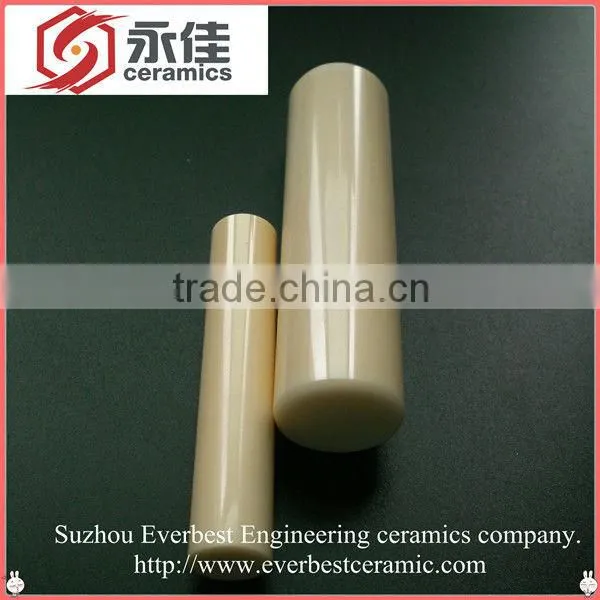

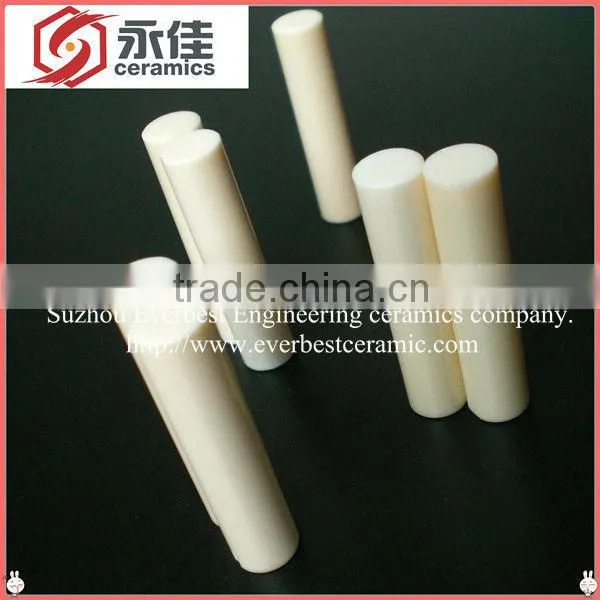

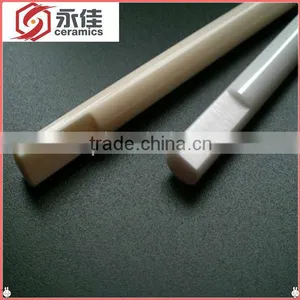

Wear resistance Industrial 99%Alumina/Ceramic Piston/Shaft/Rods
1,Property
High insulation, high strength, high corrosion resistance, and high wear resistance.
Items |
Unit |
95%Al2O3 |
99.5%Al2O3 |
Density |
g/cm3 |
3.7 |
3.9 |
Flexural Strength |
MPa |
313 |
340 |
Compressive Strength |
MPa |
3400 |
3600 |
Modulus of Elasticity |
GPa |
350 |
380 |
Impact Resistance |
MPa·m1/2 |
4 |
5.1 |
Weibull Modulus |
m |
10 |
10 |
Vickers Hardness |
HV0.5 |
1800 |
1900 |
Thermal Conductivity |
W/mk |
24 |
27 |
Highest Application Temperature |
°C |
1600 |
1750 |
Volume Resistivity at 20°C |
Ω.cm20 |
>1014 |
>1014 |
Dielertric strength |
KV/mm |
20 |
25 |
Thermal expansion |
X10-6/K |
5.0-8.3 |
5.4-8.3 |
2.Specifications
99% alumina ceramic piston
-A variety of specifications available
-High temperature resistance
-High wear resistance
3. Features:
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products, electric heating products and wear resistant machinery parts.
We can supply the products according to customer's drawings, samples and performance requirement.
| Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, isostatic pressing and extrusion productive technology etc |
3.Company profile
Suzhou Everbest engineering ceramic Co.,LTD is specialized in designing and manufacturing structure cereamic products and related parts.Our company provides high value-added ceramic product used for industry,with wear-resistance,corrosion resistance,thermostable,high-hardness,electric insulation advantages.
Ceramic products include Alumina ceramic parts,Zirconia ceramic parts,ZTA ceramic parts and SSic ceramics
Forming methods:dry powder pressing,isostatic pressing ad hot-pressing casting.
Mainly products:1,high-precision wear-resistance ceramic shaft and tube.
2,inner bore polished ceramic long rod.
3,high-pressure pump ceramic plunger.
Shaped by your drawing!Welcome to inquiry us!
