Specifications
1.Material:99 al2o3 ceramic2.High mechanical strength
3.Polishing surface,wear resistance
4,customised

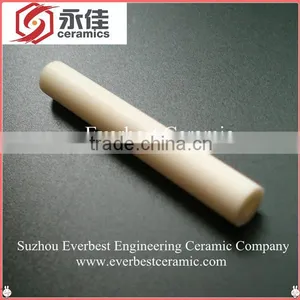

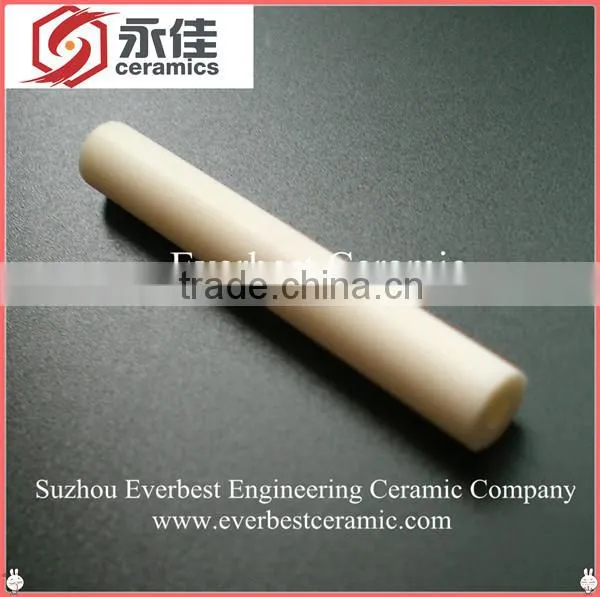

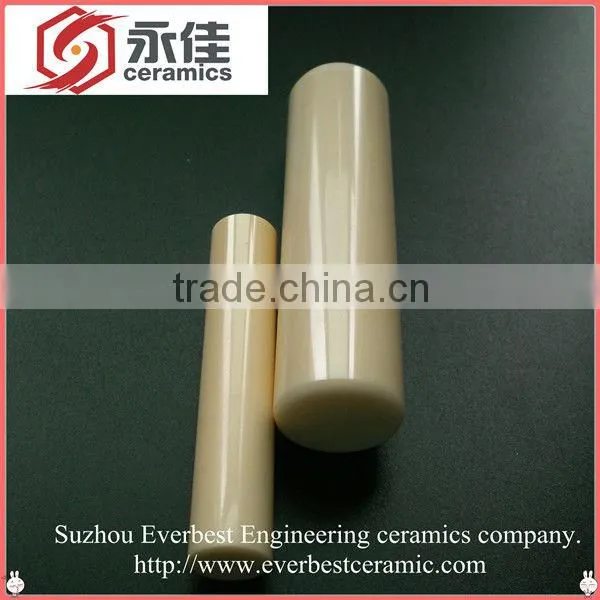

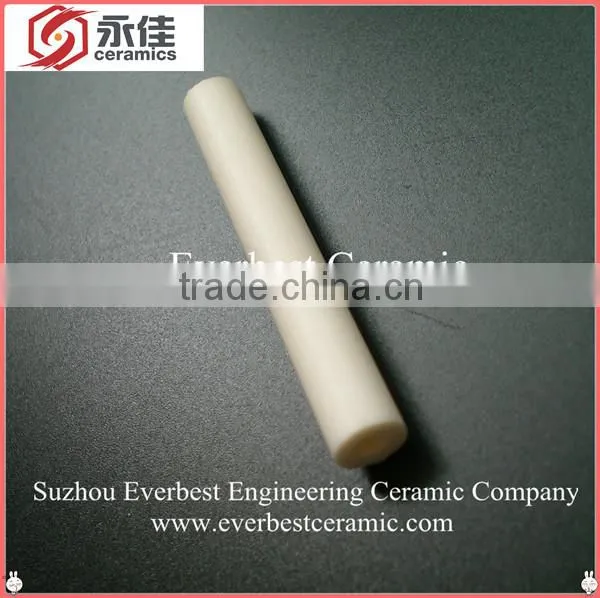

Alumina ceramic tube& Zirconia ceramic tube
Feture
Ceramic tube has the advantages of super hardness, high wear-resistance, good corrosion resistance, electric insulation, resistant acid-base, high intensity,high thermal stability, high temperature tolerance, good insulation, high strength, precision process, high mechanical strength, good chemical stability. Good smoothness, mechanical seal good, polishing surface and so on.
Technical parameters
Items |
Unit |
95% Al2O3 |
99.5%Al2O3 |
Density |
g/cm3 |
3.7 |
3.9 |
Flexural Strength |
MPa |
313 |
340 |
Compressive Strength |
MPa |
3400 |
3600 |
Modulus of Elasticity |
GPa |
350 |
380 |
Impact Resistance |
MPa·m1/2 |
4 |
5.1 |
Weibull Modulus |
m |
10 |
10 |
Vickers Hardness |
HV0.5 |
1800 |
1900 |
Thermal Conductivity |
W/mk |
24 |
27 |
Highest Application Temperature |
°C |
1600 |
1750 |
Volume Resistivity at 20°C |
Ω.cm20 |
>1014 |
>1014 |
Dielertric strength |
KV/mm |
20 |
25 |
Thermal expansion |
X10-6/K |
5.0-8.3 |
5.4-8.3 |
Forming methods including:
1. Drying pressing
2. Isostatic pressing
3. Hot pressing casting
Application
1.Ceramic tubeor Ceramic shaft for aquatic animals equipment filter pump,it has
Wear resistant and corrosion function, increase the service life of the product.
2.Ceramic plunger for high pressure cleaner.
3.Wearlessness, resistant acid-base and high intensity ceramic assembly apply to petroleum, chemical and chemical industry.
Marks:
Shaped as customers' requirment and drawing.If you are interested in our products,please don't hesitate to contact with us,we will reply to you at the first time and provide our the best price,the highest quality,the fastest delivery and the best professional service to you.
