Home > Products > Ceramic parts > high purity Alumina ceramic blast nozzle

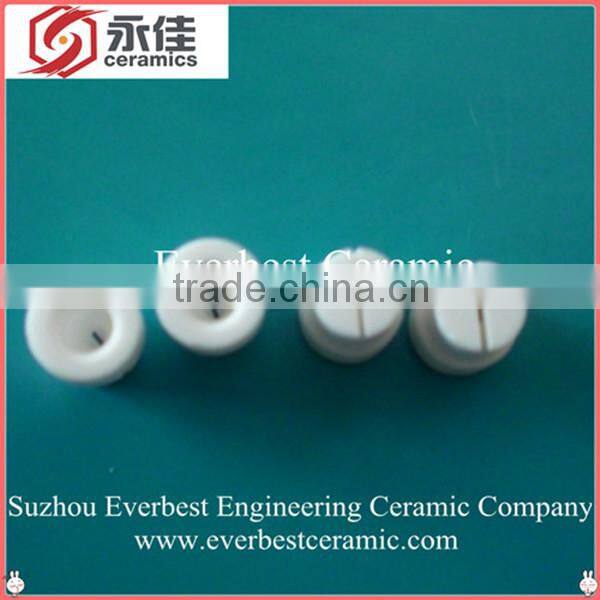

high purity Alumina ceramic blast nozzle
- 8000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Everbest | Model Number: | 7*9mm |
Type: | Insulating Ceramics | Material: | Other, Alumina, Alumina |
Product Description
Specifications
1.Material: Alumina2.Precision slotted hole, groove,deburring
3.Anti-corrosion,high temperature tolerance
4,Customizable
high purity Alumina ceramic blast nozzle
Feature
Alumina ceramic nozzle has the advantages of super hardness,high wear-resisting,good corrosion resistance high intensity , high mechanical strength, good chemical stability, mechanical seal good, polishing surface and so on.It widely used in various aquatic equipments.
Property
Items | Unit | 95%Al2O3 | 99.5%Al2O3 |
Density | g/cm3 | 3.7 | 3.9 |
Flexural Strength | MPa | 313 | 340 |
Compressive Strength | MPa | 3400 | 3600 |
Modulus of Elasticity | GPa | 350 | 380 |
Impact Resistance | MPa·m1/2 | 4 | 5.1 |
Weibull Modulus | m | 10 | 10 |
Vickers Hardness | HV0.5 | 1800 | 1900 |
Thermal Conductivity | W/mk | 24 | 27 |
Highest Application Temperature | °C | 1600 | 1750 |
Volume Resistivity at 20°C | Ω.cm20 | >1014 | >1014 |
Dielertric strength | KV/mm | 20 | 25 |
Thermal expansion | X10-6/K | 5.0-8.3 | 5.4-8.3 |
Forming methods includes
1,drying pressing
2,isostatic pressing
3,hot pressing casting
The application of our product
1, Ceramic shaft for aquatic animals equipment filter pump
2, Ceramic plunger for high pressure cleaner.
3,Wearlessness,resistant acid-base and high intensity ceramic assembly apply to petroleum ,chemical and chemical industry.
4,Wearlesness, corrosion resistance parts apply toprecisionmachine.
Why Choose us
1, Complete production line, quick delivery
2, Advanced equipments, good quality
3, Professional skills, all-related services
6. Contact
Try order is acceptable. Sample is available.
Welcome to inquire, we will feedback within 24 hours.
Remarks
Shaped as customers’ requirement and drawing, for more information, please do not hesitate to tell me.Dimension, Tolerance, Surface Roughness, Concentricity, Perpendicularity and otherspecification are upon your requirements.
