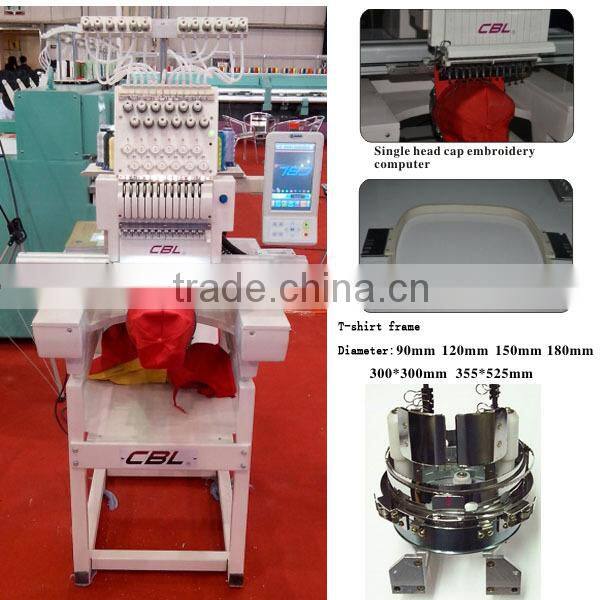

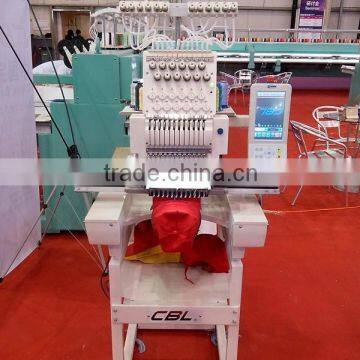

Single Head Embroidery Machine for Cap and T-shirt Quality Choice

US$ 3,500 - 4,300 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

CBL

Dongguan Baolun Computerized Embroidery Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name CBL

Model Number CBL-HKC1201

Type Other, Cap Embroidery Machine, Flat embroidery machine

Operation Computerized

Head Number Single Head

Needle Number 12

Worktable Size 750*750mm

Head Interval 300mm

Embroidery Area 300*450mm

Overall Dimensions 800*800*1570mm

Certification CE certification

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Tension Base	Intelligent thread break detect	Input Voltage	Single phase 110V/220V (50/60HZ)
Control System	Dahao 4" LCD screen computer	Power Consumption	600W
Design Input	By U disk	Embroidery Head	Free-adjusting head with liner guide rail
Memory	1000,000 stitches,200 pcs designs	Sequin Sizes	3mm,5mm,7mm
Design Format	Compatible with designs of Tajima(DST),DSB,BARUDA,ZSK,binary system,ternary system	Sequin Attachment (for option)	Sequin feeding:Fork push
Stitch Length	0.1-12.7mm	Cap Frame	1 PC
Main Shaft Motor	70SF3A60-230 AC servo motor	Setting Frame	2 PCS
Embroidery Speed	250-1000rpm	Base Frame	1 PC
X,Y-axis Motor	X:Y 57STH641 PC Y:SYD863T991 PC	Plastic hoops	90mm 120mm 150mm 180mm 300300mm 355525mm
Thread Trimming	Automatic	Color Changing	Automatic

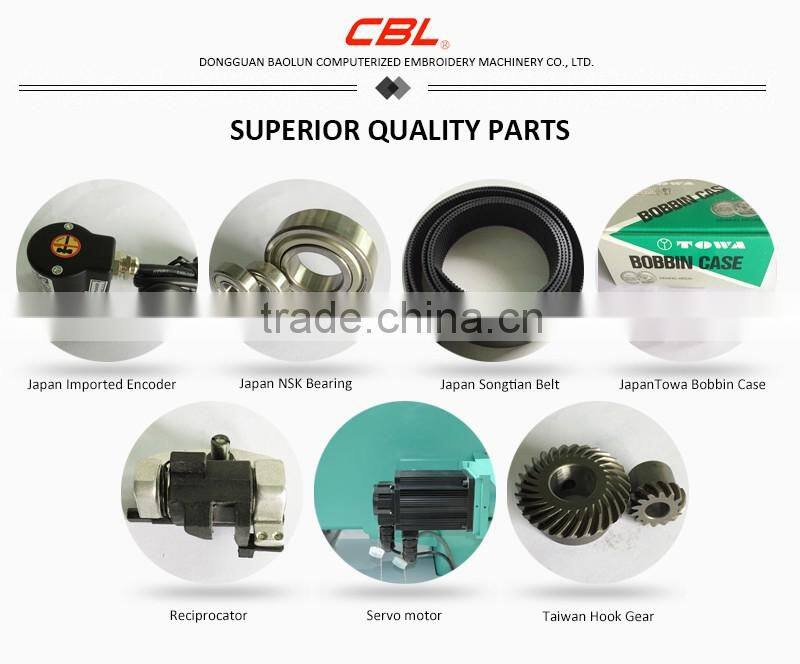

Machine and component:

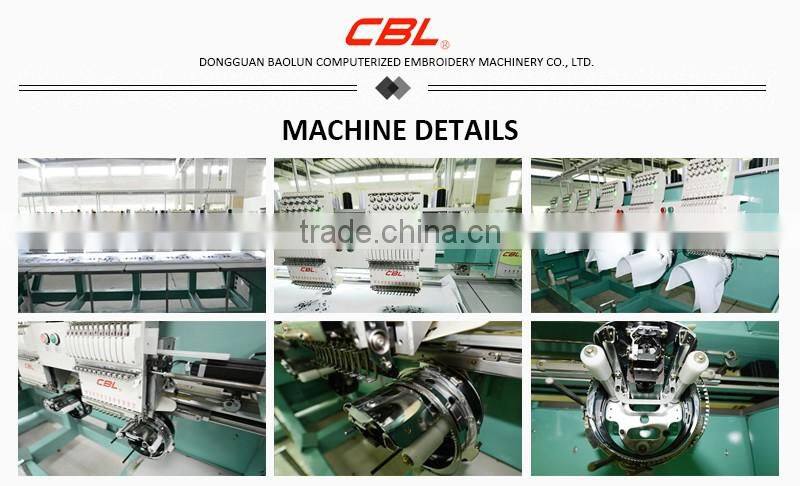

Other details of the machine introduction:

1, above machines contains T-shirts, cap and flat embroidery functions, have full function of flat
embroidery machine
2, with a set of tool, abundant easy-use spare parts
3, vacuum bag inside and wooden box outside
4, lead time: 45 days
5, free training is available at our premises of factory
6, double sets 5 different sizes tubular frames: 90mm, 120mm, 150mm, 180mm,300*300mm and
355*525mm;tubular frame bracket 300mm…355mm
2 sets cap frame and 1 base frame for each head, 1 setting frame for one machine
7, with OWNER’S MANUAL, PARTS LIST MANUAL, MAINTENANCE MANUAL
(English version)
8, one big size flat embroidery frame
9, one year warranty of broken parts replacement.
