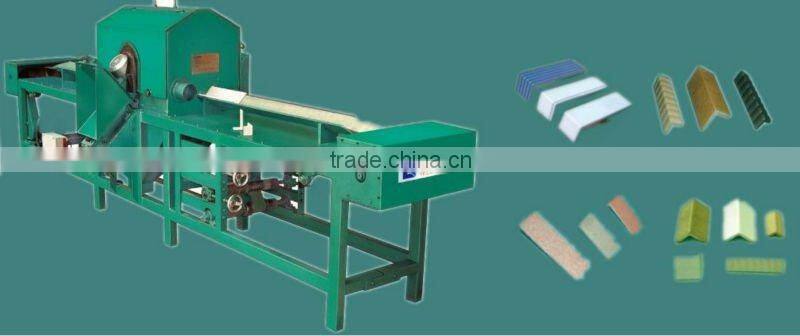

Major Technical Parameters of TL- QBJ-J Corner Tile-Rim Cutting Machine | ||
| ||
|
Dimension L x W x H (mm) |
Suitable Tiles Length Size (mm) |
Motor Power(kw) |
4,450 x 1,065 x 1,545 |
≤ 200 |
2.29 |
|
Working Speed (mm/s) |
Suitable Tiles Width Size (mm) |
Net Weight (kg) |
~ 30 |
≤ 200 |
≈ 1500 |
Features of This Type | ||
|
1. TL-QBJ-J specially made for the cutting process of the two rough rims of green corner tiles formed in dry press process by way of combination cutter processing of wide range and easy adjustment, high precision and automated. 2. Matched with TL-MBJ-J tile-rim grinding machine & TL-SYX-J glazing machine to realize corner tiles whole further processing production like two tile-rim grinding and corner surfaces glazing processes. | ||
B
Major Technical Parameters of TL-MBJ-J Corner Tile-Rim Grinding Machine
Dimension L x W x H 2,450 x 1,450 x 1,200 (mm)
Grinding Wheel Push Speed 1 (mm/s)
The Margin To Be Milled (L x W) (~2) x (~2 ) (mm) (Adjustable)
Power 7.5 (kw)
Weight ≈ 1700 (kg)
Features of Type TL-MBJ-J
TL-MBJ-J specially for the fine mending process of the two deviation rims after fired of corner tiles by way of auto-combination grinding wheel to get finished tiles of very exactly in size and smoothly in surface.
C
Major Technical Parameters of TL- SYX-J Corner Tile Glazing Machine
Dimension L x W x H 12,000 x 1,350 x 1,500 (mm)
Belt Speed ~30 (m/s) ( Adjustable )
Tile’s Size To Be Glazed (L x W) (~200) x (~200 ) (mm) (Adjustable )
Power 12.5 (kw)
Weight ≈ 3000 (kg)
Features of Type TL-SYX-J
TL-SYX-J specially for various corner tiles glazing process by way of multi glaze spray guns working combinately or separately controlled and guaranteed the glazed surface in even, perfect and stable.
F |
