Rubber v Belts / Machine Belt / Drive Belt

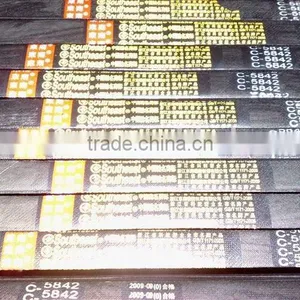

Rubber v Belts / Machine Belt / Drive Belt thumbnail-1

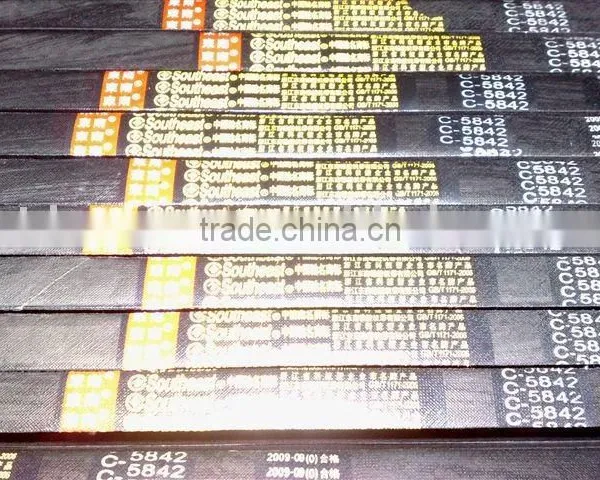

Rubber v Belts / Machine Belt / Drive Belt photo-1
US$ 0.067 - 0.78 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Ribbed Belt
Material:
Rubber
Contact Supplier Request Quote Chat Now
Zhejiang Southeast Rubber Corporation
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Type Ribbed Belt
Material Rubber
Place of Origin Zhejiang, China
Brand Name Southeast
Model Number C 5842

Specifications

rubber v belts / machine belt / drive belt: excellent quality and most sizes
banded belt, ribbed belt,narrow v belt...

Rubber v belts / machine belt / drive belt
1 We can custom-produce according to the demands or the given sample.
2 Integrating research and manufacture together
3 We've been in rubber belt industry for more than 25 years
4 We established R&D center , Hi-tech  center, high temperature resistant rubber belt research center.

Classical v belt
Common v belt that the different types of inches length that we can manufacture:

Model inches length Top width(mm) Thickness(mm)
Z 15-100 9.5 5.5
A 14-236 13 8
B 16-551 17 11
C 30-590 22 14
D 71-590 32 19
E 110-590 38 23


Ribbed belt
1 Types of PH,PJ,PK,PL,PM all can be supplied.
2 We can custom-produce according to the requirements or samples.
Banded belt
1 types of AJ BJ CJ DJ 3V 5V 8V are available.
2 Our company participated in formulating the China Chemical Industry 'Joined classical v-belts' standard.  Standard NO. HG/T 3745-2004
Joined classical v-belts,namely, banded belt

Automotive v belt:
1 Main Types of AV9.5/10,AV13/12.5,AV17/15,AV22,AV38 are available.

2 Annual output: 5,000,000 pieces

Narrow v belt:
1 Both wrapped and raw edge narrow v belt are available

2 Main Types:SPA SPB SPA SPC SPZ 3VX 5VX 8VX 3V 5V 8V

Timing belt:
1 Automotive timing belt, T type belt, arc tooth belt, double sides belt are supplied.
2 The following types are available.

The details of sizes and types
T type

Type

Pitch
Pb(mm)

Tooth height
ht(mm)

Belt thickness
hs(mm)

Angle β°

MXL

2.032

0.51

1.14

40

XL

5.080

1.27

2.30

50

L

9.525

1.91

3.60

40

H

12.70

2.29

4.30

40

XH

22.225

6.35

11.20

40

T2.5

2.5

0.7

1.30

40

T5

5

1.20

2.20

40

T10

10

2.50

4.50

40

T20

20

5.00

8.00

40





















arc tooth belt

Gear code

Type

Pitch
Pb(mm)

Tooth height
Ht(mm)

Belt thickness
hs(mm)
HTD

3M

3

1.17

2.4

5M

5

2.06

3.8

8M

8

3.36

6.00
STPD/STS

S5M

5

1.91

3.4

S8M

8

3.05

5.3
RRP

8M

8

3.2

5.5










Southeast company manufactures rubber transmission  belts and conveyor belts.



Transmission belts includeclassical v belt, Raw-edged V belt, Ribbed V belt, Timing belt forautomobile and industry, Wrapped V belt, Narrow V belt,fanbelt,Variable speed belt, agricultural machinery, CVT belts, six-sided belt.



Conveyor belts includeEP/NN/COTTON conveyor belt, Endless conveyor  belt, High temperatureresistant conveyor belt, Heat resistant conveyor belt,Patternedconveyor belt, Oil resistant conveyor belt, Chemical resistantconveyorbelt, Food conveyor belt.



Our brands SOUTHEAST and GEMINIROPE are welcomed both in home and abroad.

Ourproducts are used to form complete set for the products of manyenterprises. And they are also exported to some countries and regionsinEurope. America, Middle East and Southeast Asia.



our company has founded the high-tech research and development center that is cooperate with University. Therefore,we can design the produces according to client's requirements.
We also manufacture special belt when the sample was given.

Southeast Rubber Belt Co.,Ltd. wish you health and prosperity.



ZHEJIANG SOUTHEAST RUBBER BELT.CO.,LTD
ADD:NO.9 ZHUAO TOWN,SANMEN COUNTY,ZHEJIANG,CHINA
TEL:+86-576-8312 0978  FAX:+86-576-8312 1877
MOBILE NO.: +86-13968511199
CONTACT PERSON: MS.TIFFANY
