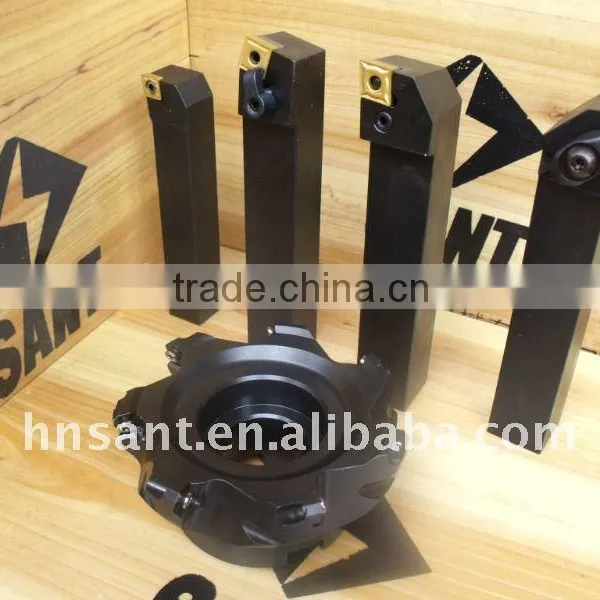

CNC lathe toolholders
USD $1 - $9,999
/ Piece
1 Piece(Min.Order)
- 0 per Month
- Changsha
- Credit Card
You May Like
-
Zy Super Hard External Turning Tool PCD Wide Edge Commutator Turning Tools
-
CNC PCD PCBN Turning Milling Inserts
-
sell zhuzhou tungsten carbide cutting tools
-
DCMT11T304-TS Carbide Inserts Turning Inserts for Steel and Stainless Steel DCMT Shape
-
Single-sided CCMT060204-SM Turning Inserts for Semi Finishing and Finishing Positive Rake Low Cutting Forces
-
CNMG120404-TF Rhombic Inserts Positive Rake Angle Varies Along the Edge to Negative Prevent Chipping
Product Details
| Place of Origin: | Hunan, China | Brand Name: | SANT | Model Number: | complete |
| Material: | Hard Alloy | Usage: | External Turning Tool | Hardness: | HRC45 |
| Coating: | Ni |
Product Description
Specifications
CNC lathe toolholders:material:42CrMo
hardness:HRC45
package:plastic box
surface treatment:black coating & nickel
CNC lathe toolholders:
1. Firm clamping
2.High precision
3.Easy insert replacement
4.high stability, long life
5.suitable for cutting fluid
petitive price
We have the standard P type external turning tools in stock and we can design&produce non-standard P type external turning tools in 10-20 days according to the customers' requirement
MODEL NO. | SIZE | Clamp | Wrench | Shim | Insert | |||||||
MCLNR/L | H | B | L | E | S | |||||||
MCLNR | 1616H12 | MCLNL | 1616H12 | 16 | 16 | 100 | 32 | 20 | MSP617 | S3 | MC1204 | CN..1204 |
2020K12 | 2020K12 | 20 | 20 | 125 | 32 | 25 | ||||||
2525M12 | 2525M12 | 25 | 25 | 150 | 32 | 32 | ||||||
3225P12 | 3225P12 | 32 | 25 | 170 | 32 | 32 | ||||||
3232P12 | 3232P12 | 32 | 32 | 170 | 32 | 40 | ||||||
2525M16 | 2525M16 | 25 | 25 | 150 | 38 | 32 | MSP821 | S3 | MC1604 | CN..1606 | ||
3225P16 | 3225P16 | 32 | 25 | 170 | 38 | 32 | ||||||
3232P16 | 3232P16 | 32 | 32 | 170 | 38 | 40 | ||||||
4032R19 | 4032R19 | 40 | 32 | 200 | 45 | 40 | MSP1022 | S4 | MC1904 | CN..1906 | ||
4040R19 | 4040R19 | 40 | 40 | 200 | 45 | 48 | ||||||
5050R19 | 5050R19 | 50 | 50 | 200 | 45 | 58 | ||||||
