Specifications
EXTERNAL & INTERNAL threading tools:1.External and internal threading tools
2.SWR/L,SNR/L
3.Threading tool
4.Ni & black.
1.accept special request
2.Resonable price
3.High stability
4.100% quality guarantee
Our threading tools can matching ZCCCT, Israel brand insert
also can supply the inserts to matching our toolholder,such as :ZCCCT,KORLOY,MITSUBISHI,TOSHIBA,CERATIZIT,TaeguTec
type |
Dimension |
insert |
|||||
a |
h |
b |
l |
s |
|||
SWR/L |
1010H11 |
10 |
10 |
10 |
100 |
16 |
R/L11.01W-**GM |
1212H11 |
12 |
12 |
12 |
100 |
16 |
||
1616H16 |
16 |
16 |
16 |
100 |
20 |
R/L16.01W-**GM |
|
2020K16 |
20 |
20 |
20 |
125 |
25 |
||
2525M16 |
25 |
25 |
25 |
150 |
32 |
||
3225P16 |
32 |
32 |
25 |
170 |
32 |
||
3232P16 |
32 |
32 |
32 |
170 |
40 |
||
2525M22 |
25 |
25 |
25 |
150 |
32 |
R/L22.01W-**GM |
|
3225P22 |
32 |
32 |
25 |
170 |
32 |
||
3232P22 |
32 |
32 |
32 |
170 |
40 |
||
Type |
Dimension |
Applicated insert |
SNL0010K11 |
d=10,L=125,b=12.5,Dmin=12,s=6,h=9.5,L1=32 |
LT11.01N- GM |
SNL0012K11 |
d=12,L=125,b=12.5,Dmin=16,s=6,h=11.5,L1=32 |
|
SNL0013M16 |
d=13,L=150,b=15,Dmin=16,s=10,h=15.5,L1=32 |
LT16.01N- GM |
SNL0016M16 |
d=16,L=150,b=15,Dmin=20,s=12,h=15.5,L1=45 |
|
SNL0020Q16 |
d=20,L=180,b=18,Dmin=25,s=14,h=19.5,L1=40 |
|
SNL0025R16 |
d=25,L=200,b=20,Dmin=30,s=16,h=24,L1=45 |
|
SNR0010K11 |
d=10,L=125,b=12.5,Dmin=15,s=6,h=9.5,L1=32 |
RT11.01N- GM |
SNR0012K11 |
d=12,L=125,b=12.5,Dmin=16,s=6,h=11.5,L1=32 |
|
SNR0013M16 |
d=16,L=150,b=15,Dmin=16,s=10,h=15.5,L1=32 |
RT16.01N- GM |

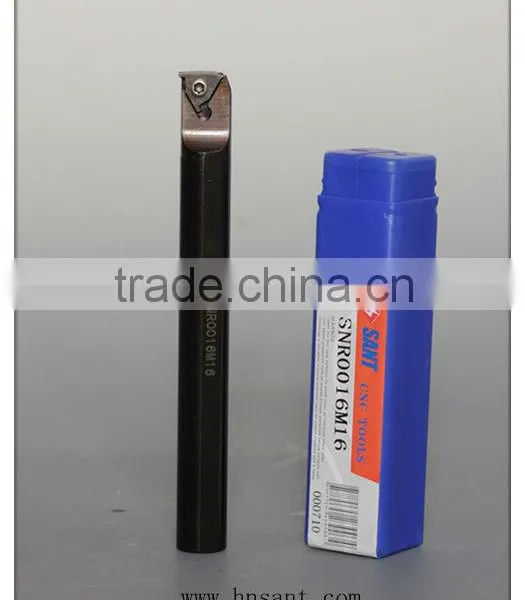

SNR0016M16 |
d=16,L=150,b=15,Dmin=20,s=12,h=15.5,L1=45 |
|
SNR0020Q16 |
d=20,L=180,b=18,Dmin=25,s=14,h=19.5,L1=40 |
|
SNR0025R16 |
d=25,L=200,b=25,Dmin=30,s=14,h=24,L1=45 |
Production process(with pictures):

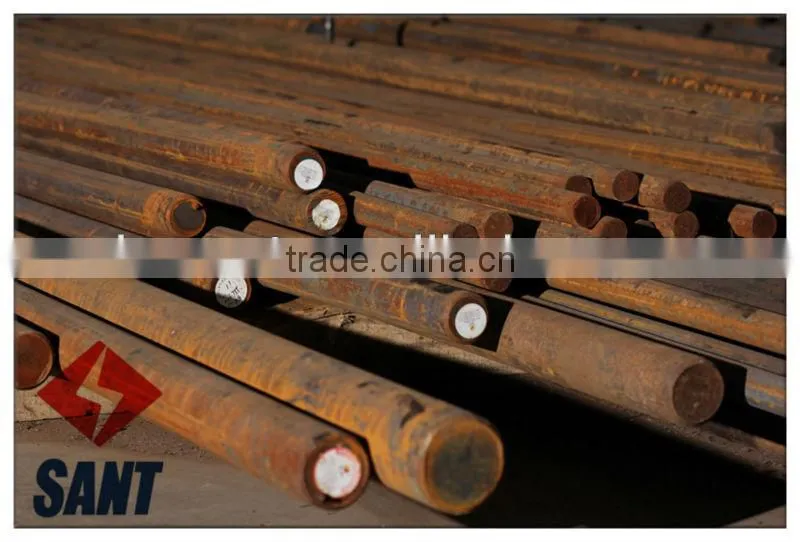

1. unprocessed materials

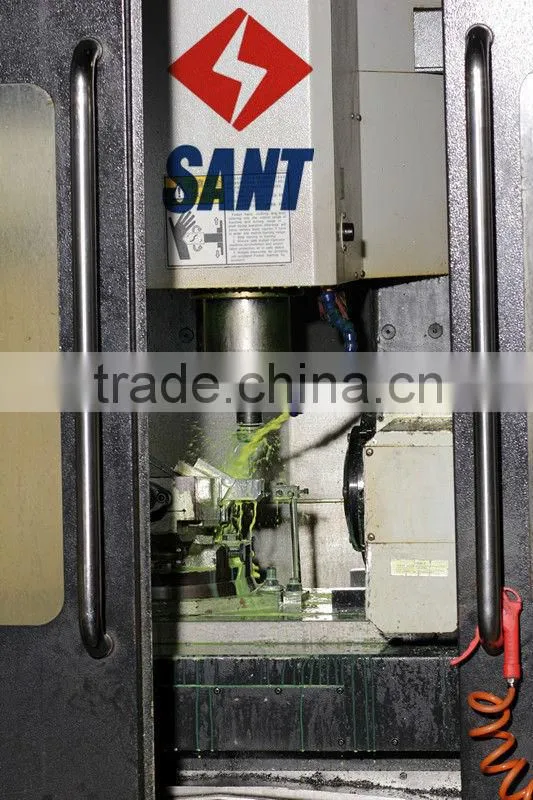

2.Finish machining sipe(the tolerance of height of center to be ±0.02mm.
3.Hear treatment(HRC43-47)

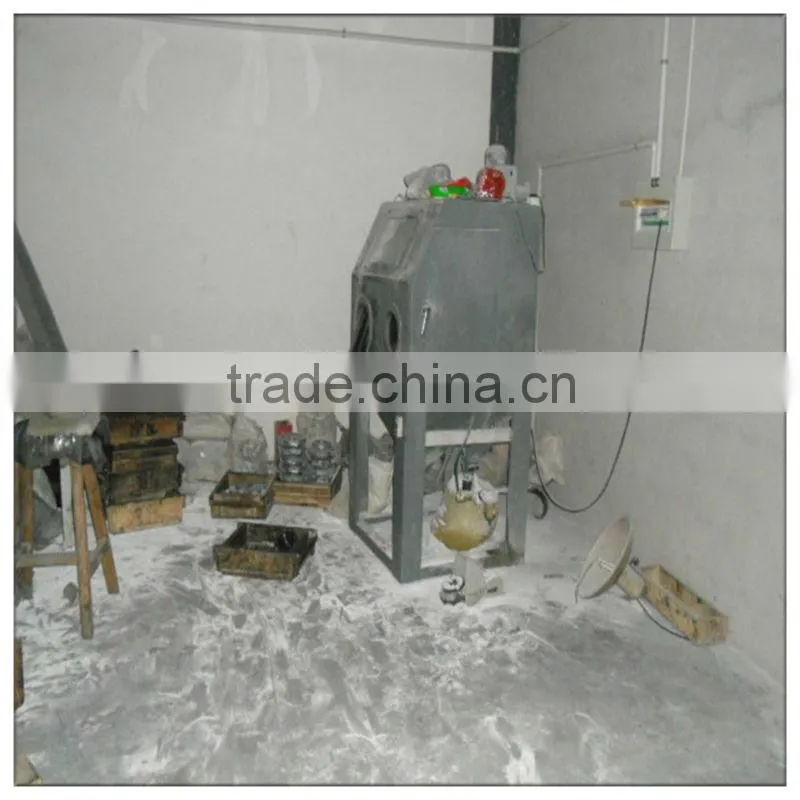

4.Sand blast
5.Black or Ni coating

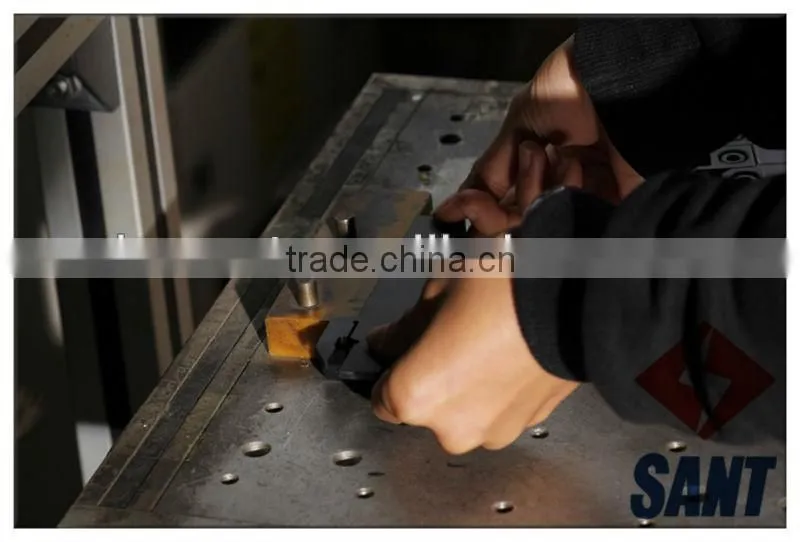

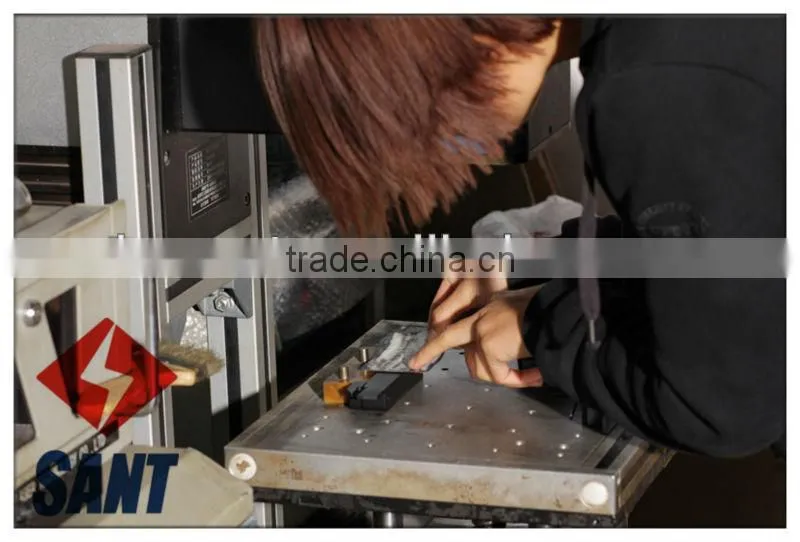

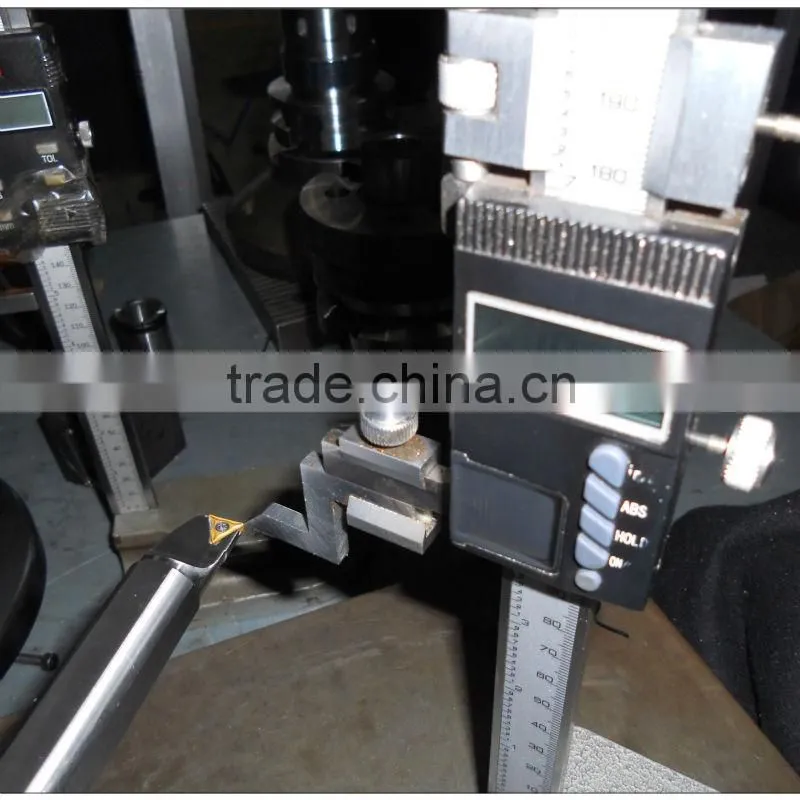

6Marking & testing

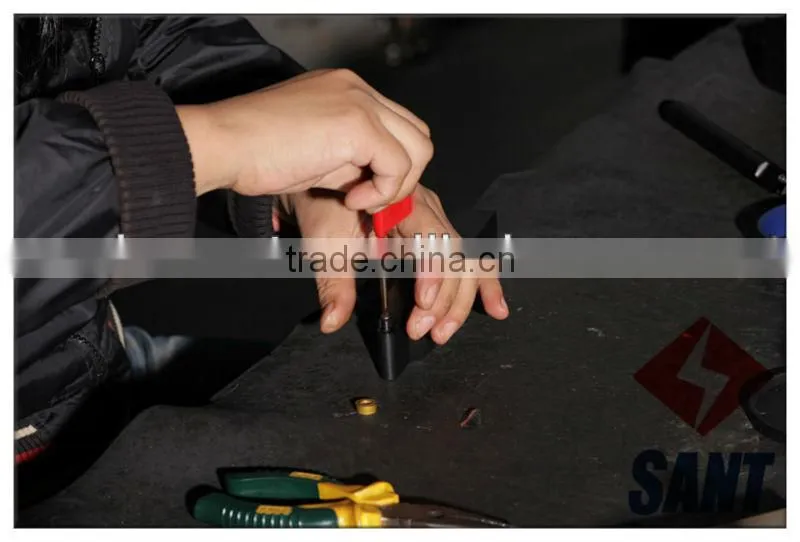

7.Assemble(doing quality test at te same time)
