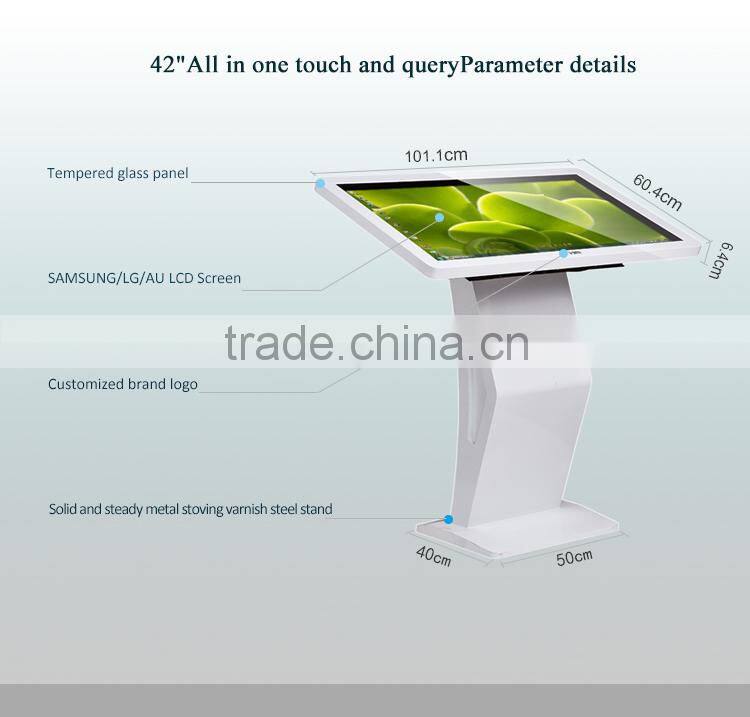

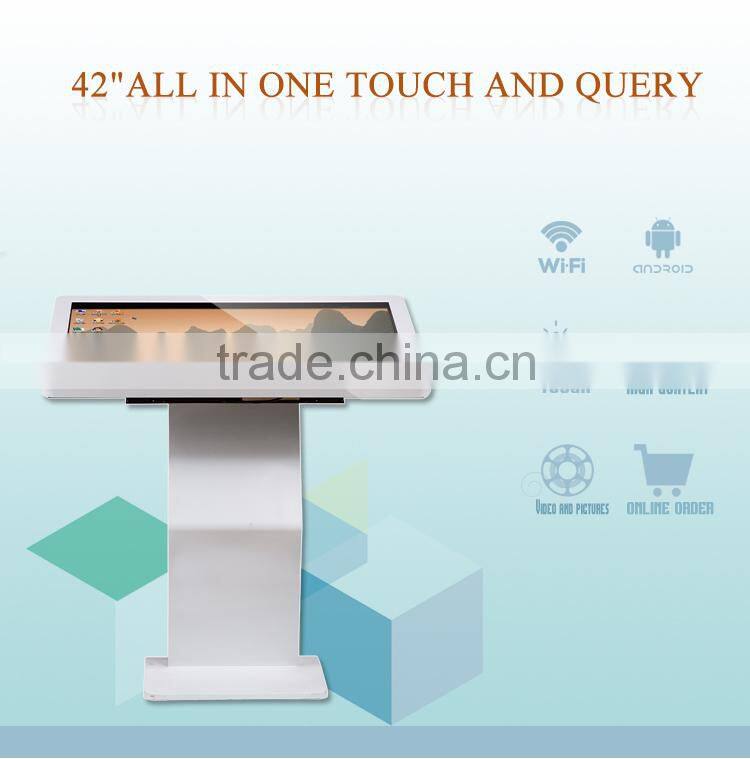

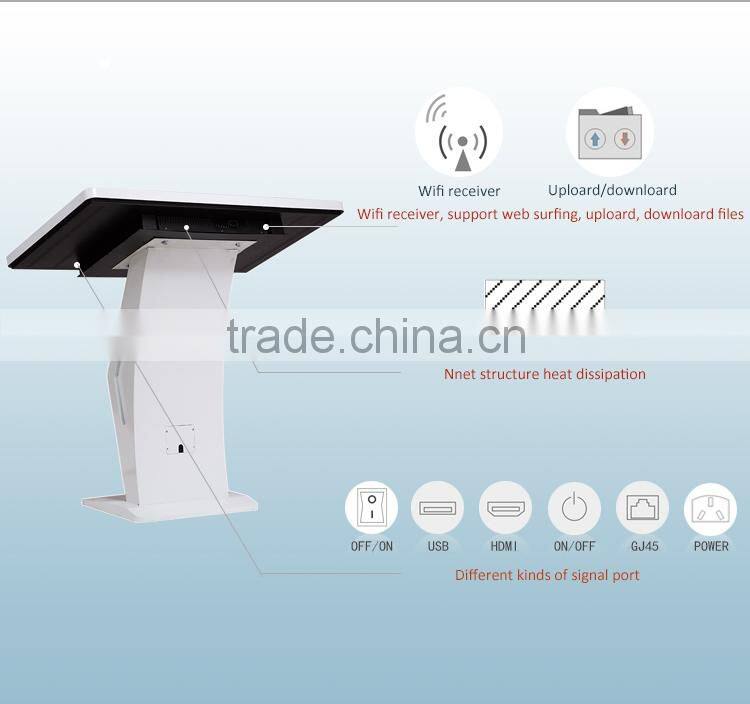

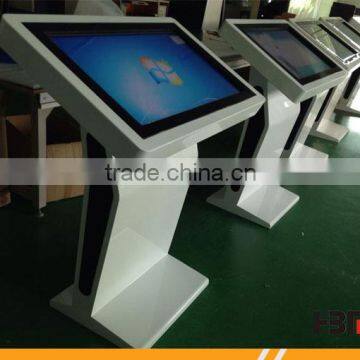

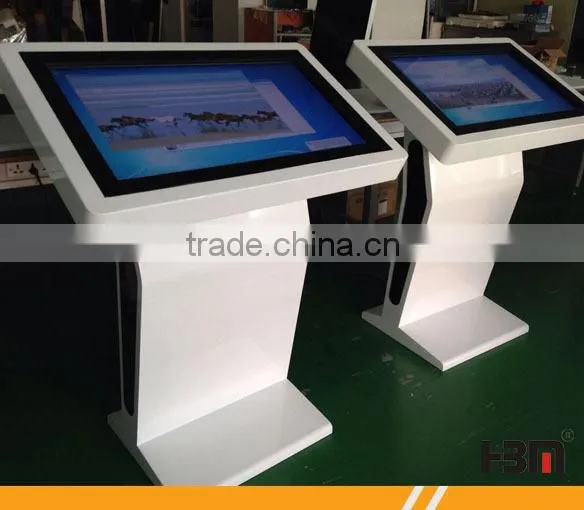

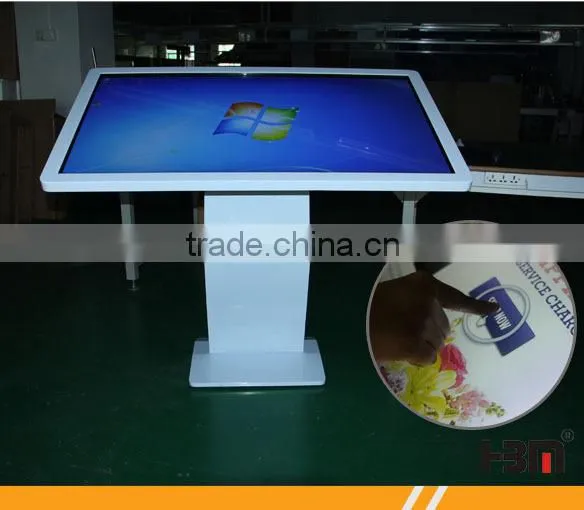

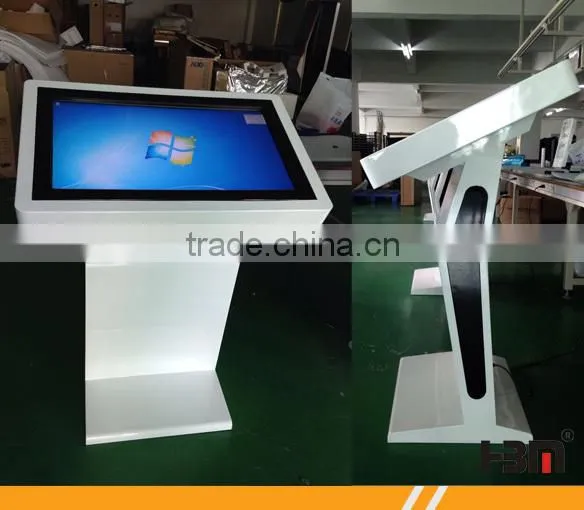

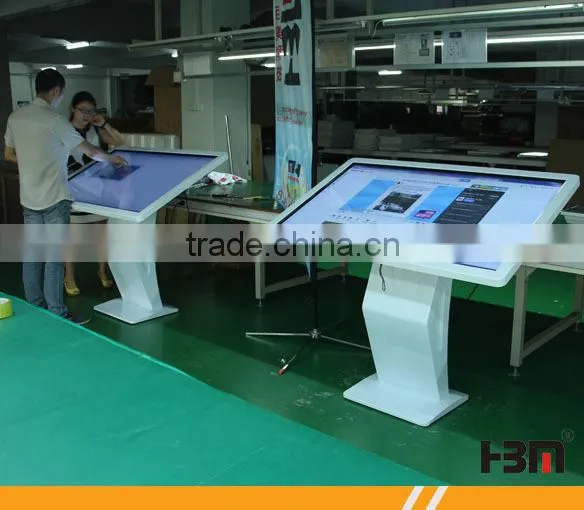

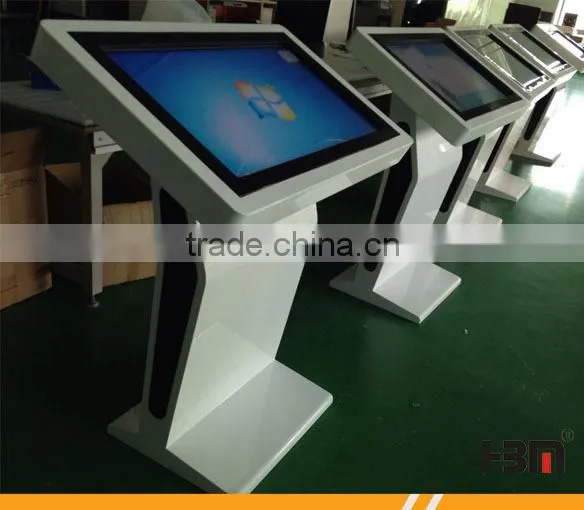

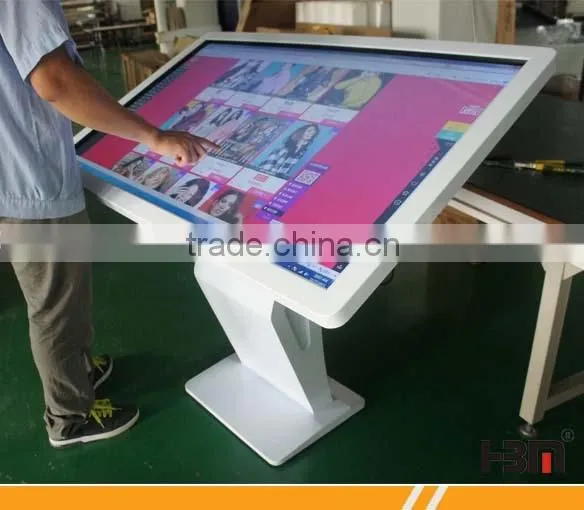

Shopping mall Network WIFI self-service touch screen information kiosk
Panel Parameter |
Panel Size |
42 inch (16:9) |
|
Active Area |
930mm (H) x 523mm (V) |
||
Brand for LCD Panel |
Full new LG/Samsung A grade |
||
Max. Brightness |
500cd/m²,700cd/m2 is optional |
||
Max. Resolution |

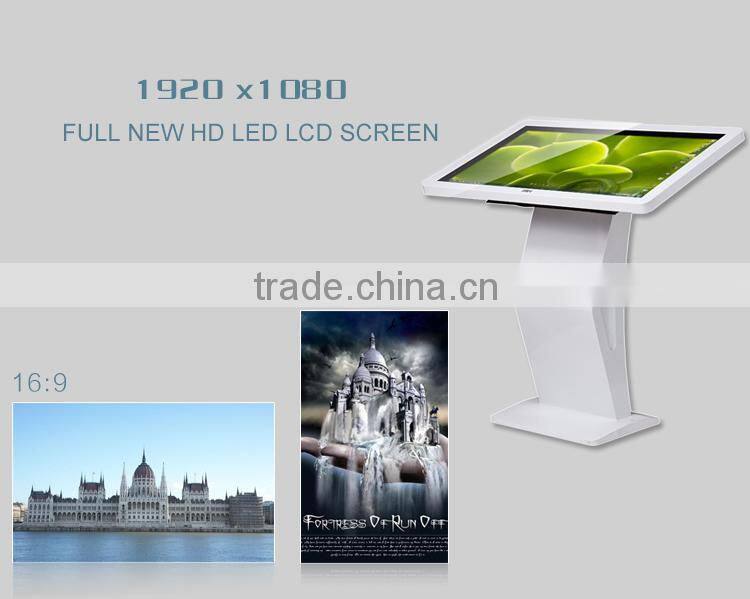

1920 x 1080 |
||
Contrast Ratio |
10000:1 |
||
Panel Life |
50000hours |
||
Responsive Time |
8ms |
||
Dot Pitch |
0.630mm (H) x 0.630mm (W) |
||
Viewing Angle |
H178/V178 |
||
Mini-PC Configuration |
CPU |
ATOM D525 dual core 1.8GHz processor. |
|
Thread number |
4pieces |
||
Main board |
Inter D525+Nvidia GT218 |
||
RAM pattern |
DDR3 support dual channel DDR3 1333MHz RAM,2GB |
||
Pattern of channel |
Dual Channel |
||
RAM Slot |
2 DDR3 DIMM |
||
Frequency of RAM |
DDR3 1333MHz, DDR3 1333MHz |
||
Hard Disk |
S-ATAII 500GB/16MB/7200rounds/s |
||
Capacity of RAM |
standard 2GB,4GB, 8GB optional |
||
Wireless Network card |
Atheros AR9285 802.11b/g/n |
||
Touch Panel Parameter |
Touch Max Resolution |
4096×4096 |
|
Transparency |
> 90%, Up to 100% |
||
Scanning Speed |
>50Scans/S |
||
Response Speed |
<12ms |
||
Touch precision |
0.625mm |
||
Minimum Touch |
5mm |
||
Operation Syst |
WINDOWS7/ LINUX |
||
Altitude |
3000m |
||
Communication |
RS-232 Interface Port, USB Port |
||
Vandal-Proof |
Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break |
||

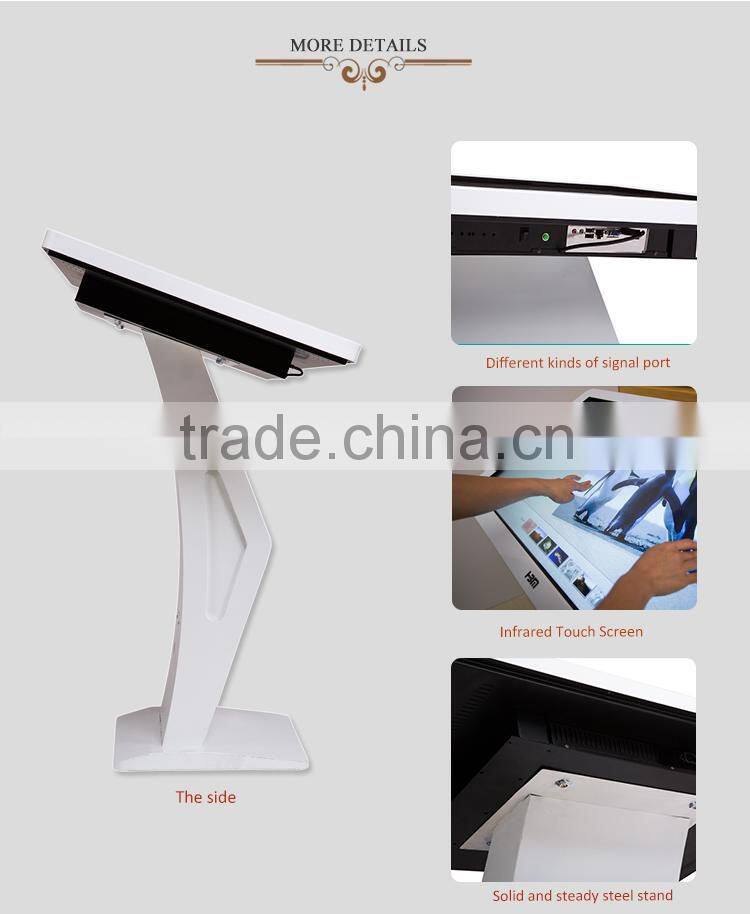

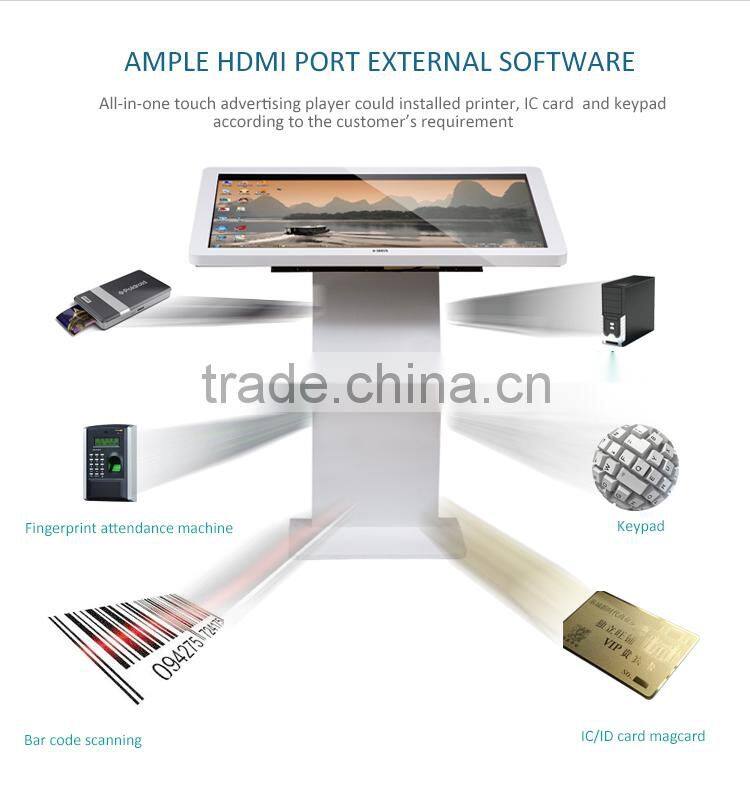

Interface(I/O) |
Build in 2.1USB port, HDMI+VGA+AV port.CF/SD card is optional. |
||
Power Supply |
AC 110V-240V, 50HZ/60HZ |
||
Product Features |
Main Function |
Playing file automatically |
|
With USB update | |||
Support HD video, pictures and music | |||
Security and password protection, anti-thief design | |||
Set up time on/off | |||
Support Remote controller | |||
Support Safety lock system | |||
Support Media Format |
MPEG1/2/4, AVI, RM, WMV, DAT, JPEG, BMP, PPT, WORD, EXCEL, TXT, MP3, RMVB, SWF etc. |
||
Temperature |
Storage:-20 Celsius degree to 70 Celsius degree Working: 0 Celsius degree to 70 Celsius degree |
||
Fixing Method |
Floor standing |
||
Color |
Black color with silver side frame,Gold color and other color customized |
||
Housing Material |
5mm thickness tempered glass as LCD/LED panel protection layer |
||
Applicable field |

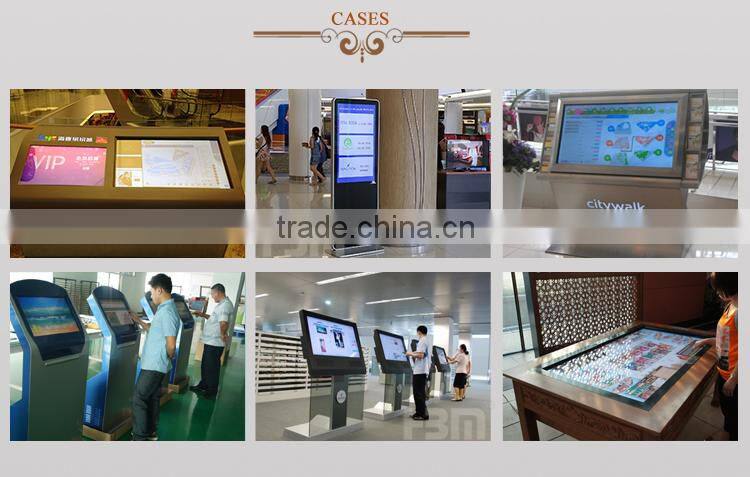

Supermarket, Hotel, Mall center, Shop, Commercial buildings etc. |
||
Packing information |
Packaging Size (mm) |
2020*995*225mm |
|
Shell Size(mm) |
1933*800*80mm |
||
Display Size(mm) |
930*523mm |
||
N.W. / G. W. (kg) |
100kg/ 130kg |
||
Packing Material |
Very strong Honeycomb carton |
||
