DC 24V Led Posterbox Module 2016 New Design Bijection Distance Max: 3m

US$ 1.35 - 1.5 MOQ: 50 Pieces

Key Specifications

Light Source:

LED

Input Voltage(V):

Lamp Power(W):

Guangzhou QM Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Port

Delivery Detail:

Delivery time depends on order quantity.

Light Source LED

Input Voltage(V) 24

Lamp Power(W) 10

Lamp Luminous Flux(lm) 400

Lamp Luminous Efficiency(lm/w) 40

Color Temperature(CCT) Other, 6000-6500K

Working Temperature(℃) -30, 60

Working Lifetime(Hour) 50000

IP Rating IP67

Certification CCC, CE, EMC, FCC, GS, UL

Emitting Color Other, White, White

Lamp Body Material Aluminum

Place of Origin Guangdong, China

Brand Name HBM

Model Number HBM-3535

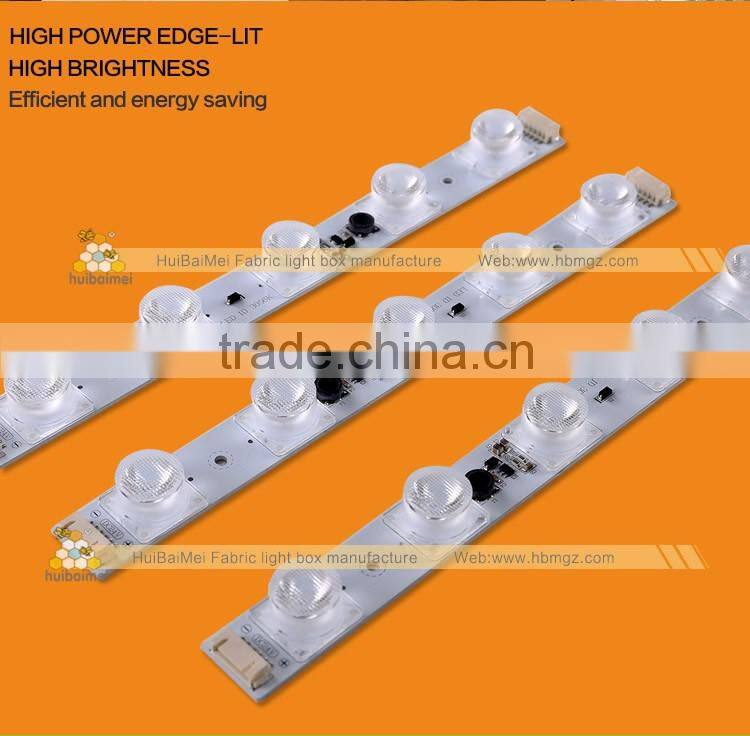

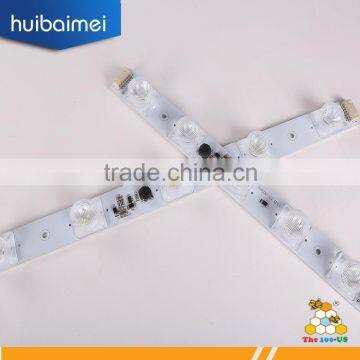

DC 24V led Posterbox Module 2016 new design Bijection Distance Max: 3m

Product Description:

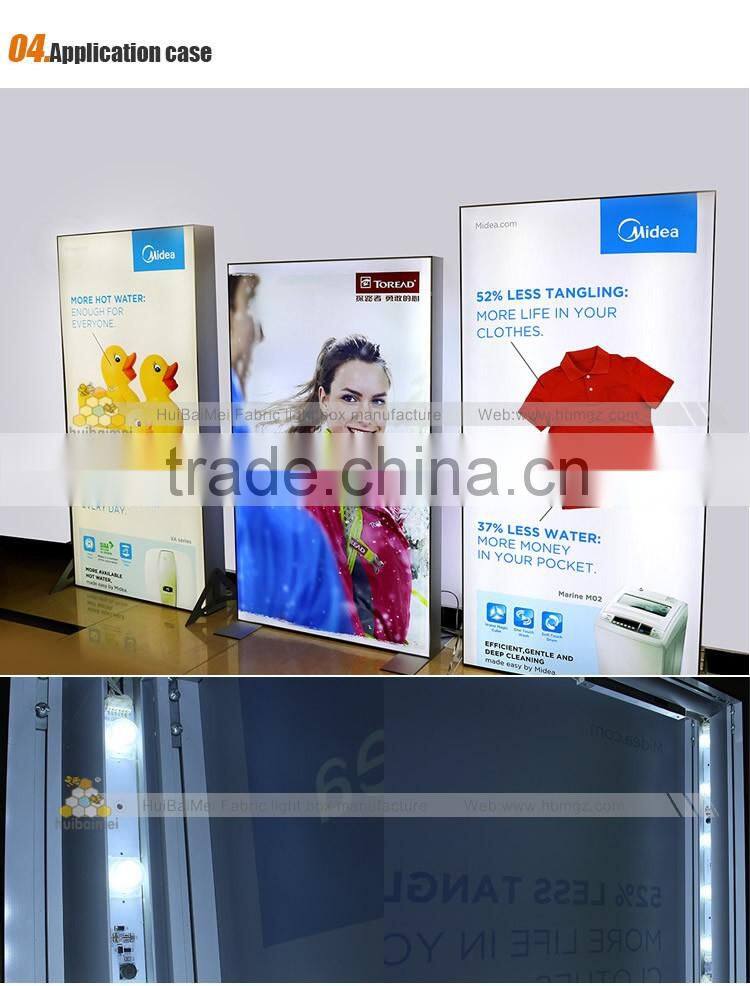

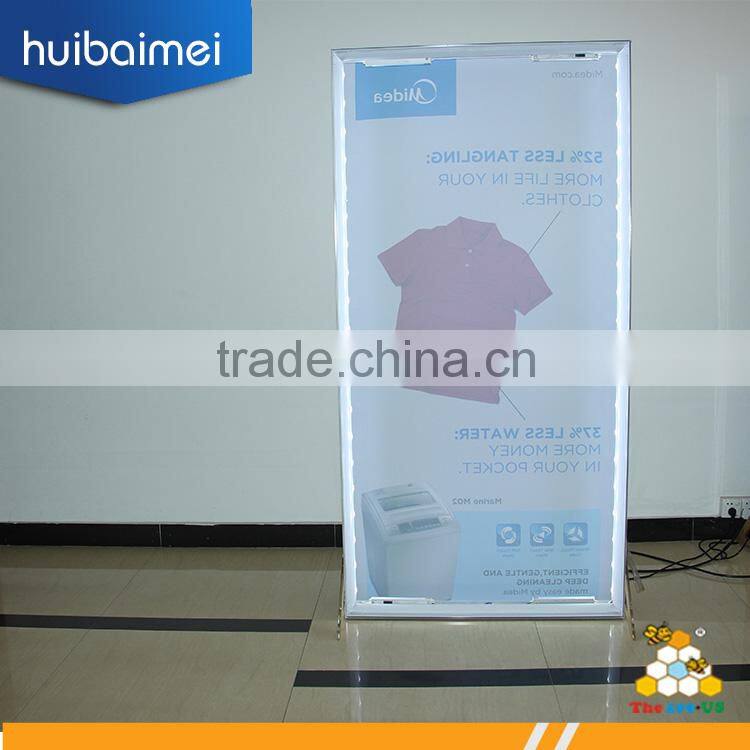

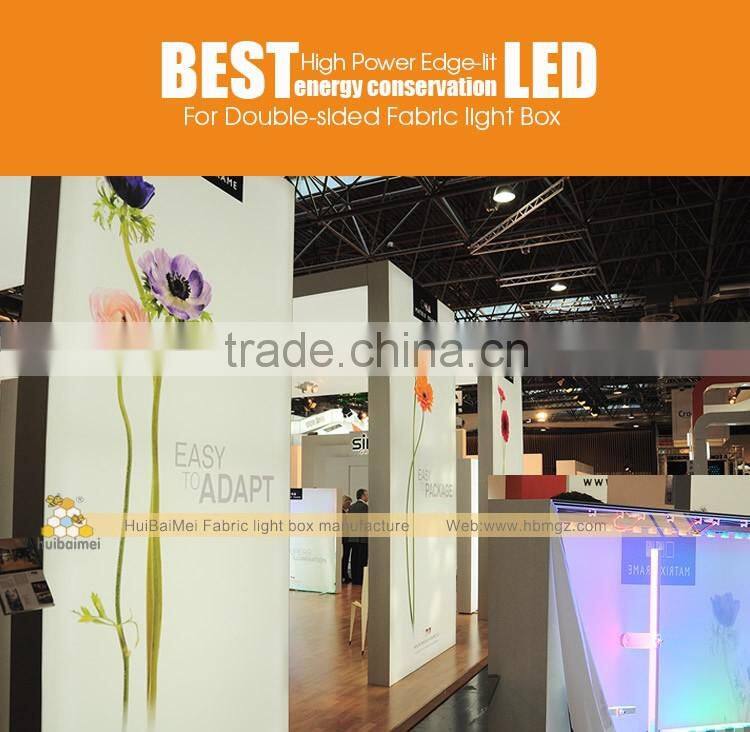

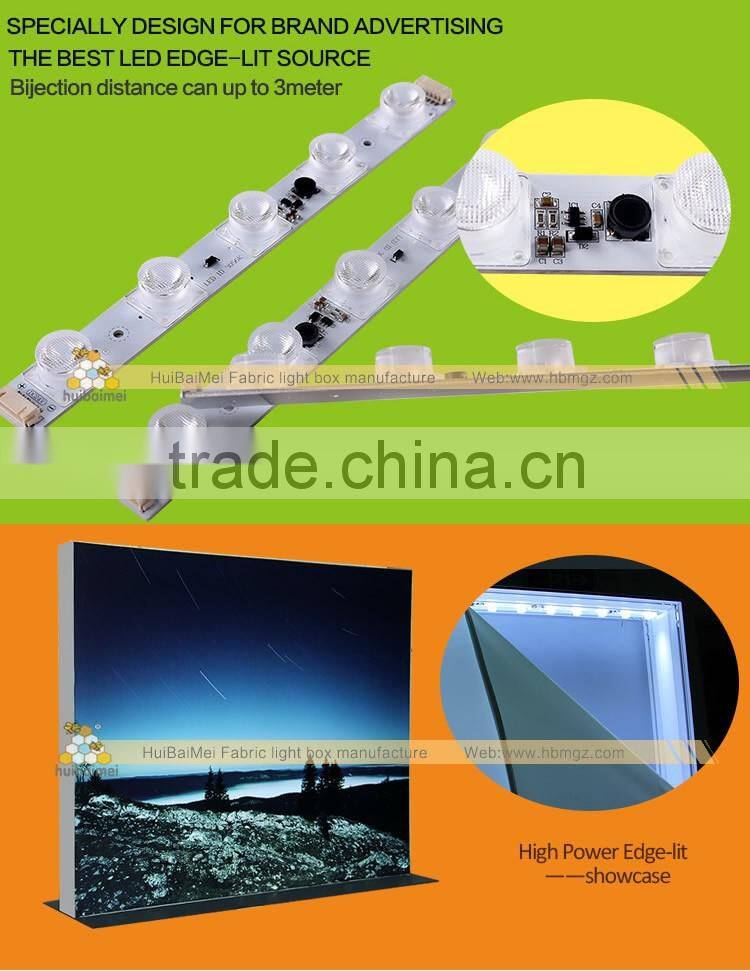

1) Excellent edge-lit solution forsingle or double side lightboxes

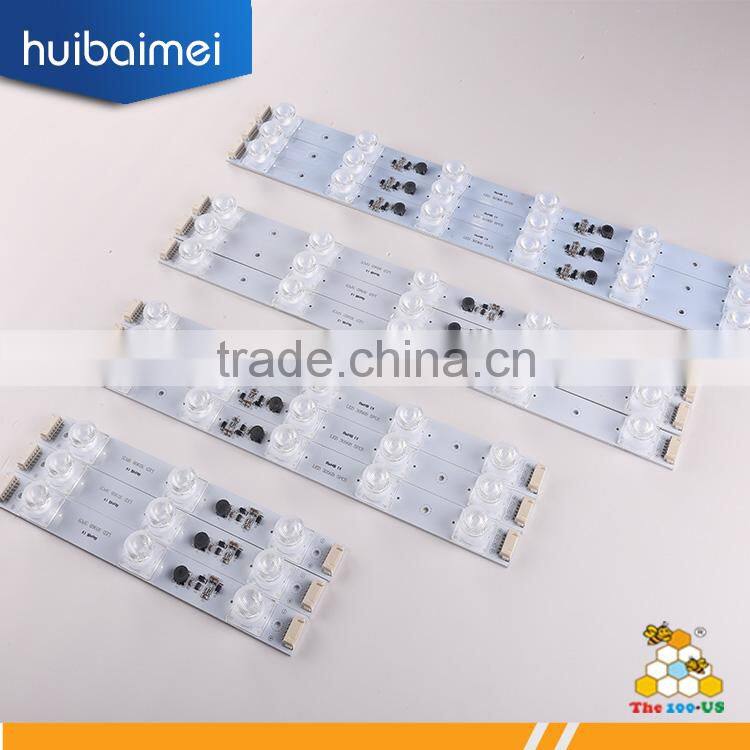

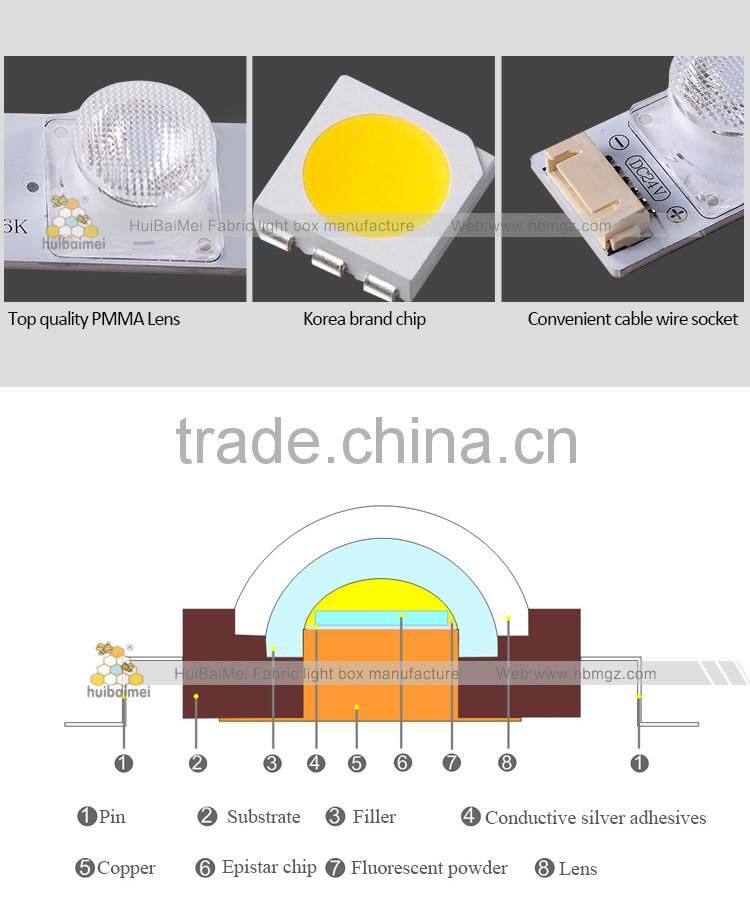

2) High power Samsung chip SMD3535 LEDs

3) Special design of LENs to allow narrow beam angle

4) 24VDC input

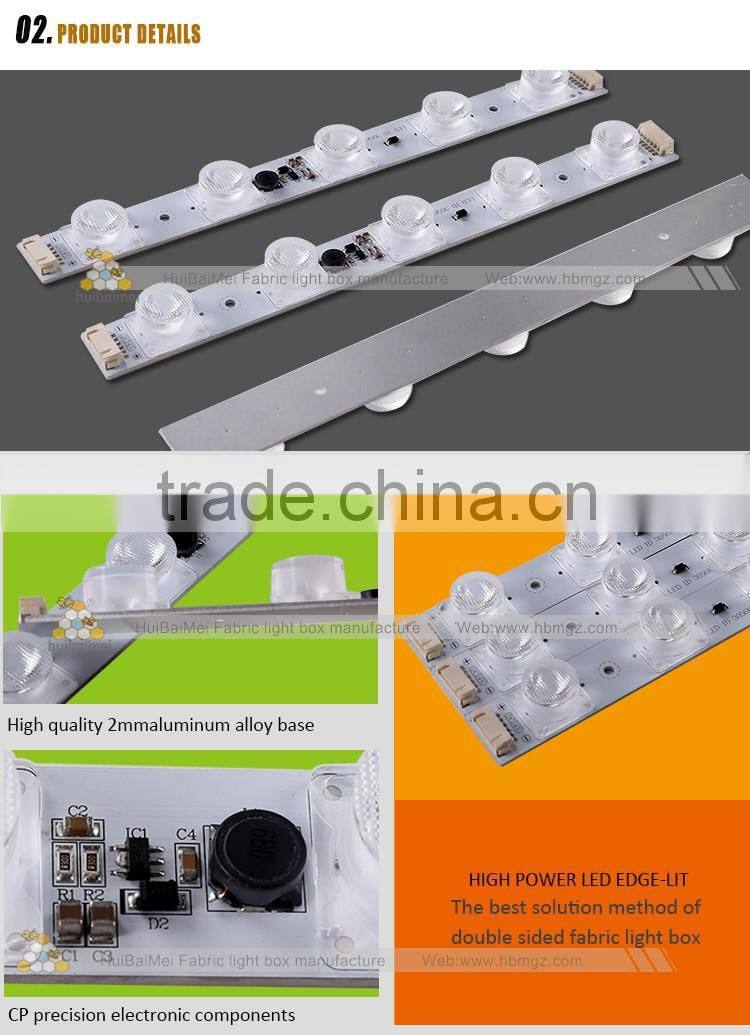

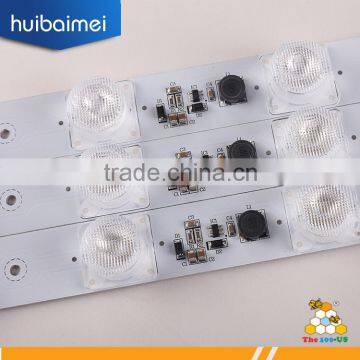

5) Aluminum PCB for good heat dissipation

6) UL/cUL Listed

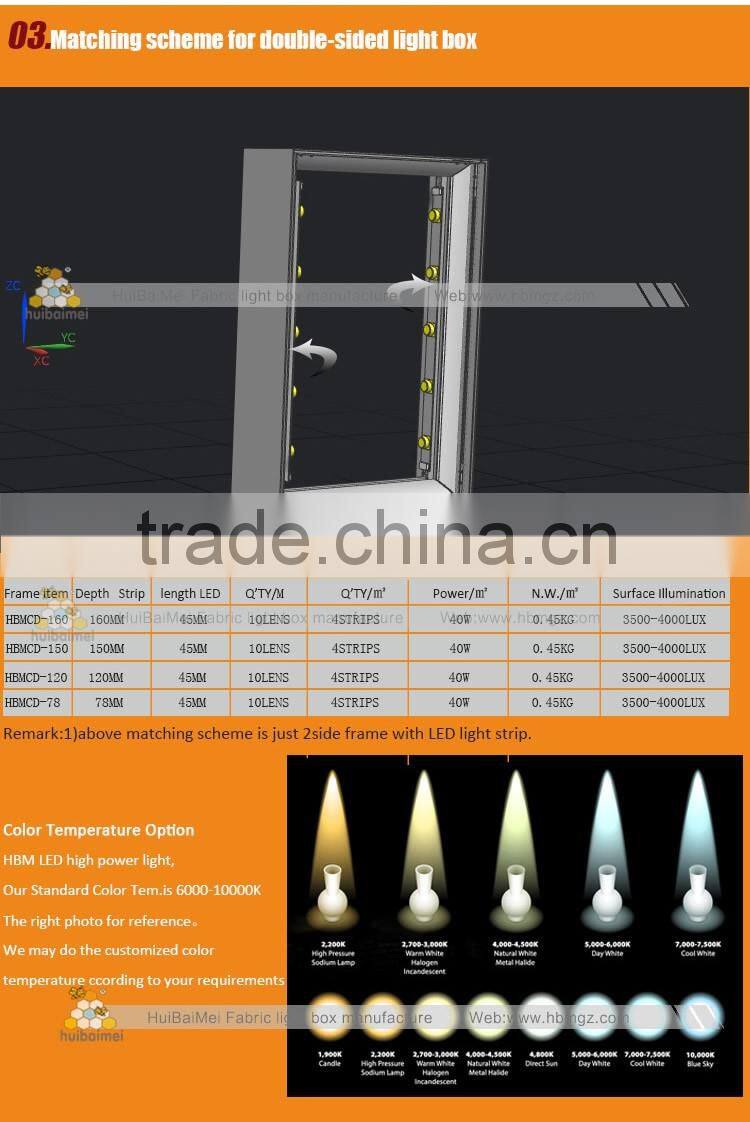

7) Light boxes up to 1800mm wide only require LEDs along the two long sides
Light boxes wider than 1800mm are lit from all 4 sides

8) Indoor as well as waterproof outdoor modules available

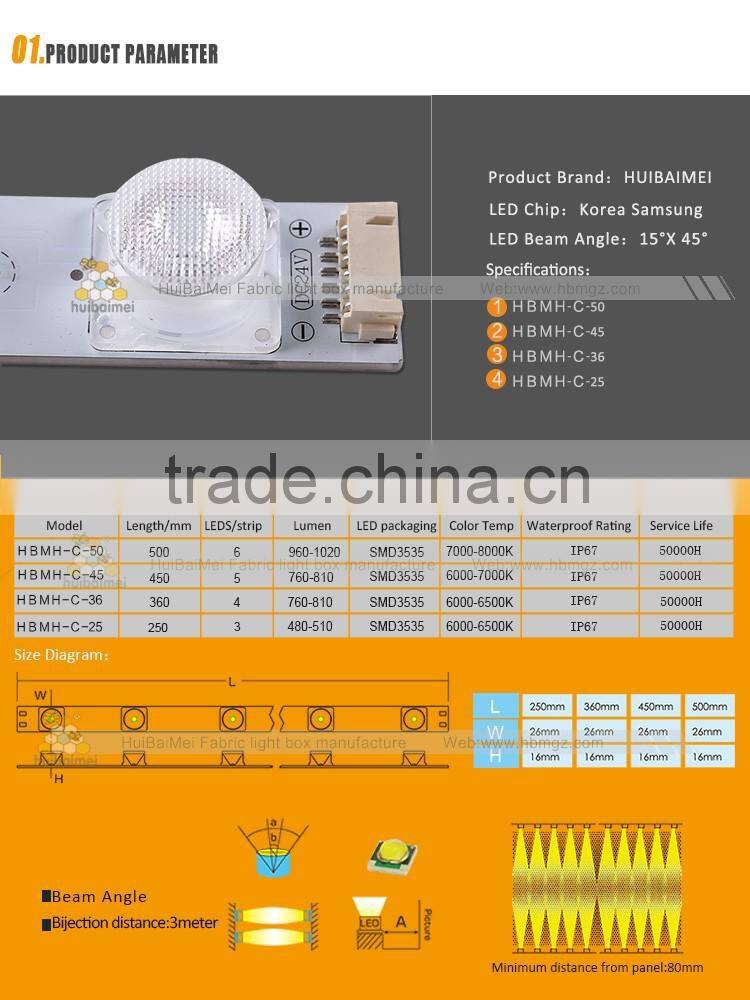

Specification

Series high power edgelit for single and double-sided illumination
Voltage	24V
Current	400mA
Power	6W-12W(2W/LED)
Luminance/Led	180Lm/LED
Luminance/Strip	480-510Lm
Number of LEDs	3-5pcs
Distance between LED	72 mm
Emission Angle	15°*45°
Sealing	IP20 / IP65
Working Temp.(°C)	-20°C/+60°C
Color Temp.	6200-7000k or customized
Measures	360×23×15mm
Lumens decay	1%-2% 1,000h
Lifespan	>50,000 h.
Chip	Korea Samsung
Lens	PMMA Japan raw material
Warranty	3years
