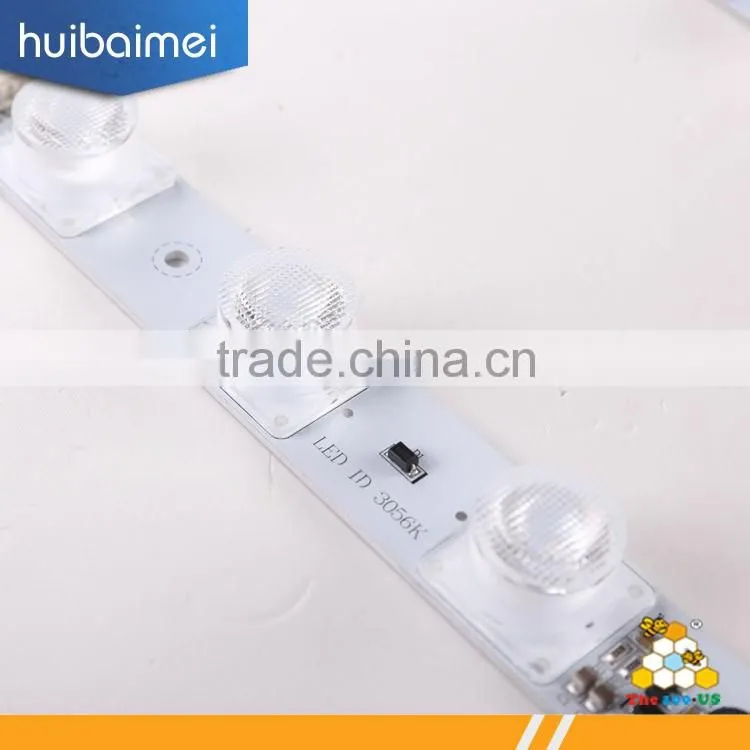

high power edge light led module bar with lens

FOB Price

USD $1.50 - $1.50 / Piece

4 Pieces(Min.Order)

Product Details

Light Source:	LED	Input Voltage(V):	24	Lamp Power(W):	10
Lamp Luminous Flux(lm):	400	Lamp Luminous Efficiency(lm/w):	40	Color Temperature(CCT):	Other, 6000-6500K
Working Temperature(℃):	-30, 60	Working Lifetime(Hour):	50000	IP Rating:	IP33
Certification:	CCC, CE, EMC, FCC, GS, UL	Emitting Color:	Other, White, White	Lamp Body Material:	Aluminum
Place of Origin:	Guangdong, China	Brand Name:	HBM	Model Number:	HBM-3535

high power led module bar edge light with lens

Product Description

Product Description:

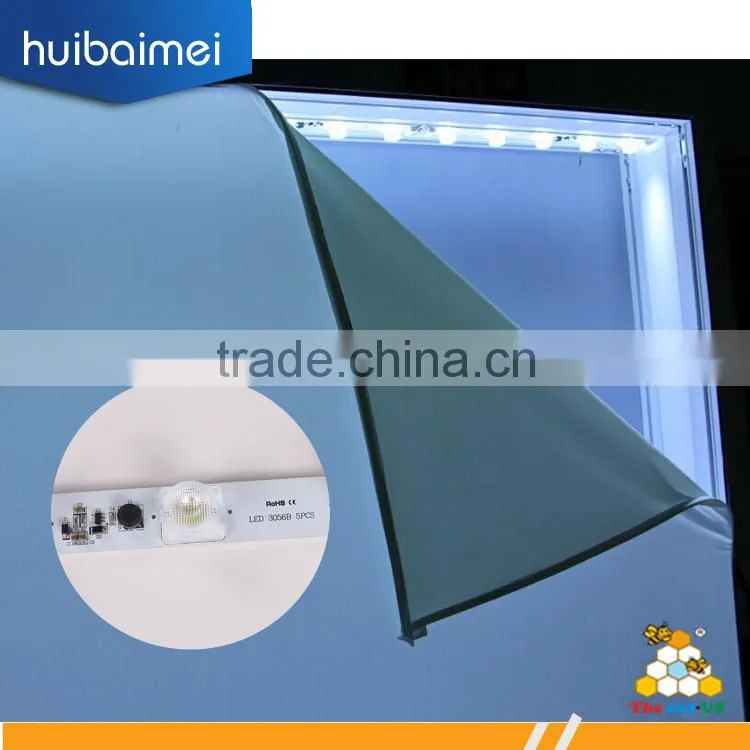

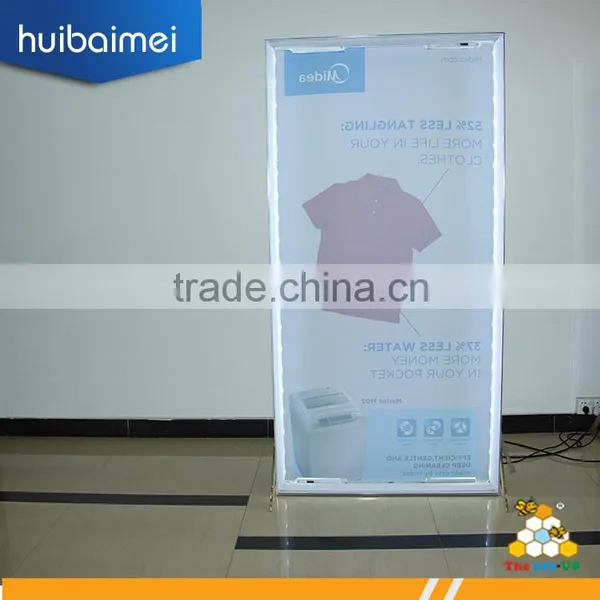

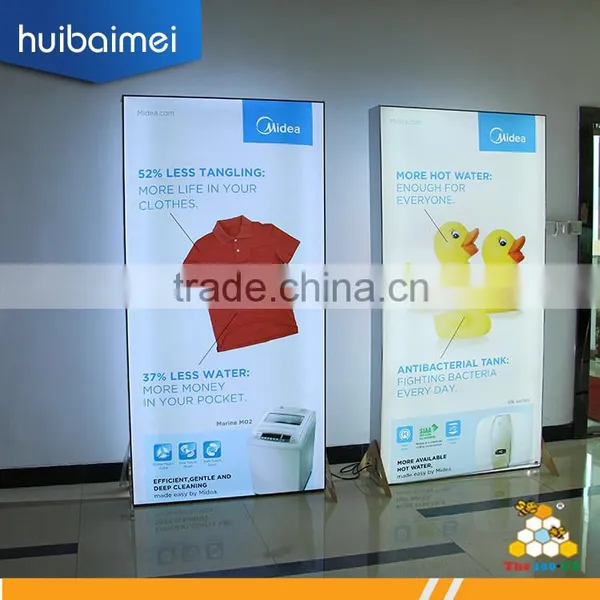

1) Excellent edge-lit solution for single or double side lightboxes

2) High power Samsung chip SMD3535 LEDs

3) Special design of LENs to allow narrow beam angle

4) DC24V/12V input. Waterproof for outdoor light box

5) Aluminum PCB for good heat dissipation

6) UL/cUL Listed

7) Light boxes up to 1800mm wide only require LEDs along the two long sides
Light boxes wider than 1800mm are lit from all 4 sides

8) Indoor as well as waterproof outdoor modules available

Specification

Series high power edgelit for single and double-sided illumination
Voltage	dc12V/24V
Current	400mA
Power	6W-12W(2W/LED)
Luminance/Led	180Lm/LED
Luminance/Strip	480-510Lm
Number of LEDs	3-5pcs
Distance between LED	72 mm
Emission Angle	15°*45°
Sealing	IP65
Working Temp.(°C)	-20°C/+60°C
Color Temp.	6200-7000k or customized
Measures	360×23×15mm
Lumens decay	1%-2% 1,000h
Lifespan	>50,000 h.
Chip	Korea Samsung
Lens	PMMA Japan raw material
Warranty	3years
