Poultry house poultry feeders and drinkers

Using South Africa auger,

TaiWan gear motor,

and using top quality material for each accessory,

you can see our perfect

Automatic poultry farming equipment  from all details.

poultry farming system poultry farming system poultry farming system poultry fa

Adventages to use our automatic poultry farming equipments

Time saveing

Labour saving

Increasing chciken living rate.

High quantiy to ensure nonstopping running of your house

Comparitively cheap price.

automatic poultry farming equipmentAuto

matic Poultry Equipment Manufacturers, Automatic Poultry Equipment Su

1.Main feeding system

 complete set of automatic feeding system, included a material conveying pipe, silo, auger, drive motor and a material level sensor. Main Feed line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding.

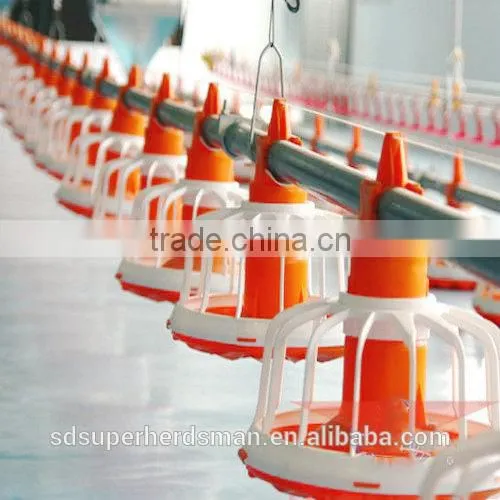

2. Automatic pan feeding line system

Performance parameters of feeding line system

1. Feeding system: Diameter of conveying pipe: diameter :45mm

Material: hot-dip galvanized sheet pipe with the zinc coating amount of morethan 275 square meter

Helical spring auger from South Africa feeding capacity:450kg/h.

2. High-quality special driving reduction motor.

3. V-shaper Bin(with hopper)

Bin volume: 115L, hopper volume :38L

Material: hot-dip galvanized sheet.

4. Feed level sensor from Israel: time delay range0 to 2 hours.

Poultry Equipment Plus, Poultry, Poultry Equipment, Chickens, C poultry farming system poultry farming system poultry farming system poultry farming system poultry farming system

3 . automatic poultry drinking system

This system can provide fresh and clean water

for poultry which is crucial for the growth of

Poultry. The drinkers can be triggered from 360

degree which helps young birds start well and

makes drinking easier.

4 .Automatic ventilation fan system

This system controls climate conditions, fresh air, humidity and temperature in poultry shed, it is vital for growing birds. This system include Poultry house fan, Cooling pad, Air inlet window

5. Cooling pad system

This system using evaperated cooling paper pads cooling down the house effectively and safely.

It is the most economical and effective summer cooling combination of the henhouse. Cooling pad-fan cooling system, which is reasonably designed and installed, can control the temperature in the poultry house to 30 degrees centigrade or under hottest weather, thereby reducing the influence of high temperature on the growth of the poultry to a minimum

6. Environment control system

This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working m-ode according to the local climate and raising environment

:

7 .Spraying and disinfecting system

This system effectively cools, humidifies, dedusts and disinfects the hen house(the tem-Perature is quickly reduced by 3-8 degrees centigrade within a few minutes)

Our factory is ISO 9001 Certified

Automatic broiler Farming Equipment
