Main feeding system
the whole poultry farm equipment consist of the Main feeding system , feeding system ,nipple drinking system , ventilation system , environment controller system , cooling pads , spraying system and heater
Main feeding system

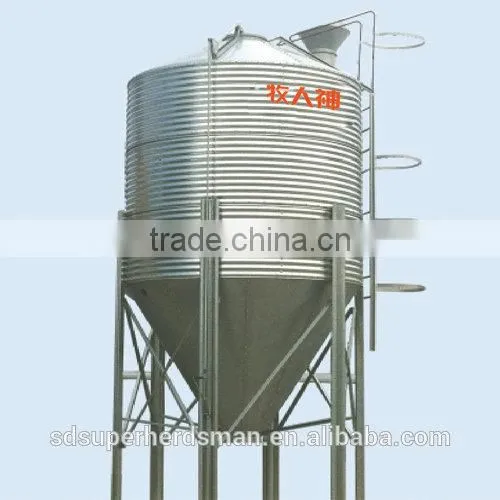

Main Feeding system consists of a driving , a silo, a conveying pipe, auger and feed sensor. the main feeding system i mainly used to convey feed from thee silo into hopper of the feeding lines and automatically control the conveying opening. closing of the motor by the feed sensor to achive the automatical feeding
| Model | volume (M3) | height(no fundition ) M | Diameter (M) |
| MRS-4.0 (1802) | 6.2 | 4.9 | 1.83 |
| MRS-7.3 (2701) | 11.2 | 4.5 | 2.75 |
| MRS-10.6 (2702) | 16.4 | 5.68 | 2.75 |
| MRS-14.0 (2703) | 21.6 | 6.8 | 2.75 |
| MRS-20.8 (3602) | 32 | 6.9 | 3.66 |
| MRS-27.3(3603) | 42 | 7.9 | 3.66 |
Material description: silo roof plate ans silo wall plate layer-galvanized sheets with the thickness of 1.2mm ,second layer of silo wall plate-galvanized seet with the thickness of 1.5mm conical bottom plate- galvanized sheet with the thickness of 1.5m.
you can choose the motor siemens , transtechno and Tanwai motor
| power | voltage | frequency | phase | current |
| 0.75kw/1.1kw/1.5kw | 220v/380v | 50HZ/60HZ | Triple/single | AC |
Auger from South Africa feeding capacity:1400kg/h,max.
Diamter of conveying pipe 75mm*4.2mm material PVC

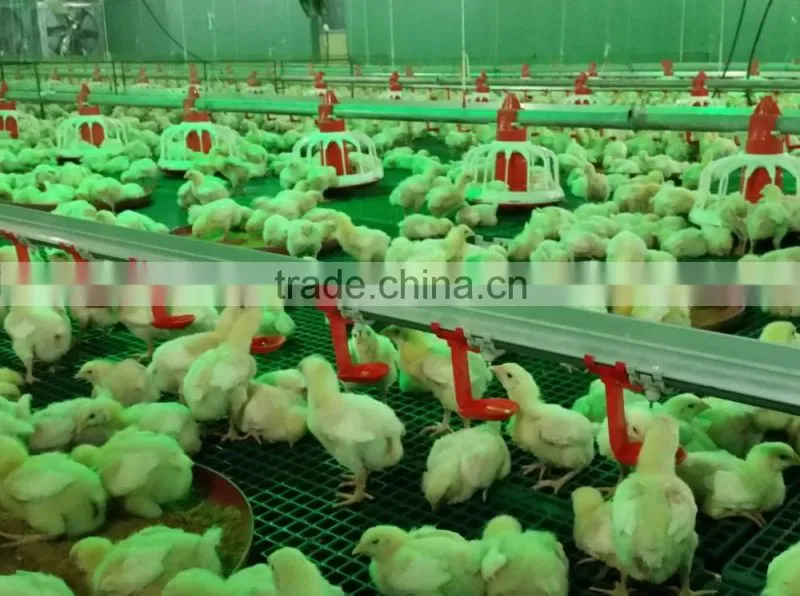

2. Automatic feeding system

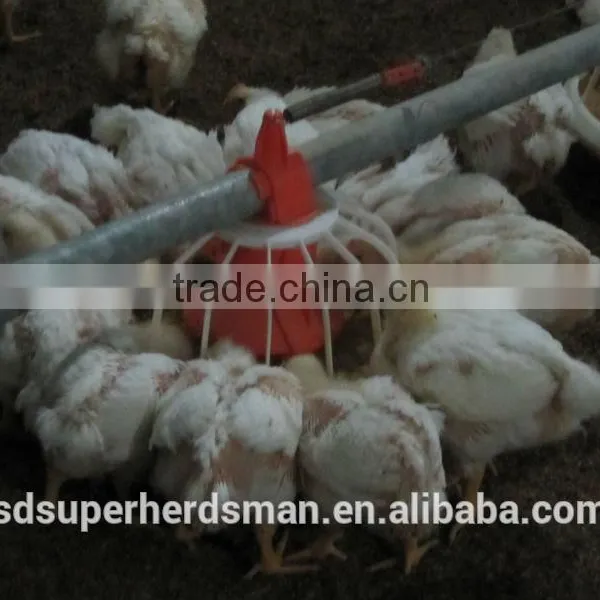

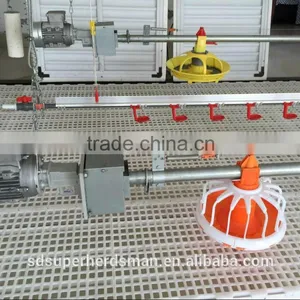

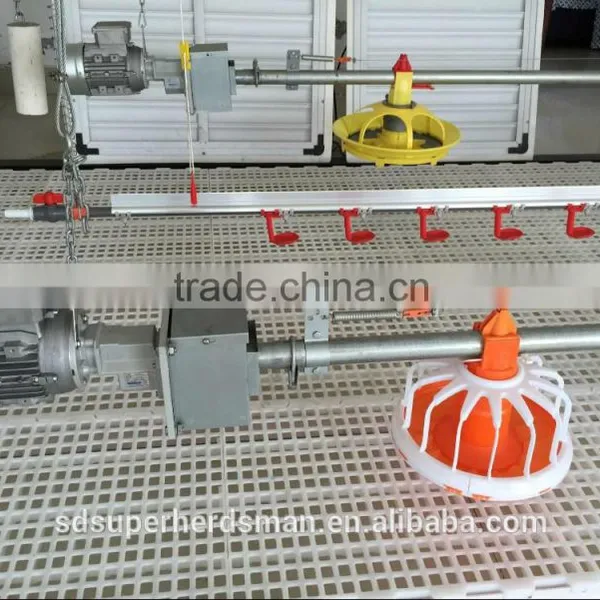

automatic feeding system consist of a driving system device , a hopper , a conveying pipe, auger , feed pan , a suspention lifting device , and anti-roost devicce and feed sensor
the main function of the system is to convey feed from the hopper into each feed pan to ensure the eating of the chicken and automatically control the conveying opening /close of the motor by the feed sensor to achive the aim of automatic feeding
motor specifications: Brand , simens motor , transtechno motor , taiwan motor
| power | voltage | frequency | phase | current |
| 0.75kw/1.1kw | 220v/380v | 50HZ/60HZ | Triple/single | AC |
Mini hopper:
hopper capacity:75L , raw material: galvanize sheet
feeding system: diameter of conveying pipe: 45mm
Material:hot-dip galvanized steel pipe with the zic coating amount of more than 275g/m2
Auger from South Africa feeding capacity 450kg/H
Feed sensor : feed sensor from Germany
we have three kind of feeding system and the suspention of the feeding system accessories we use stainless steel which price is ten times higher than the galvanized ones

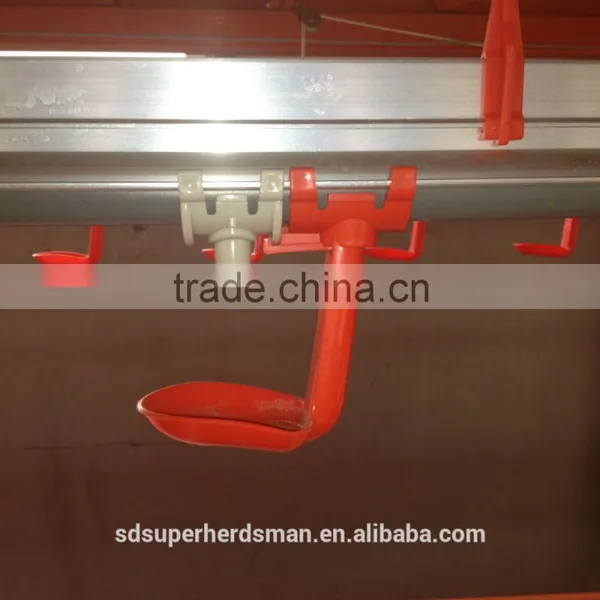

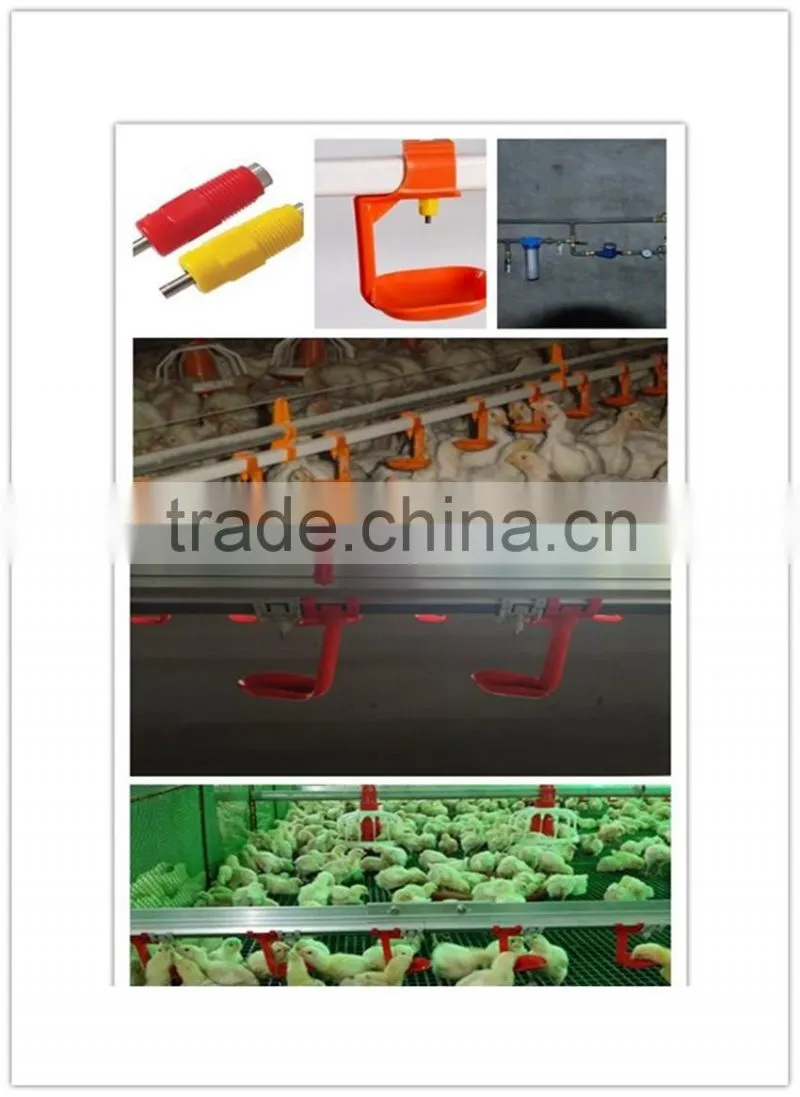

Nipple drinking system
its main function is to deliver water to drinking pipe . the water will flow out automatically when the chicken toch the nipple.

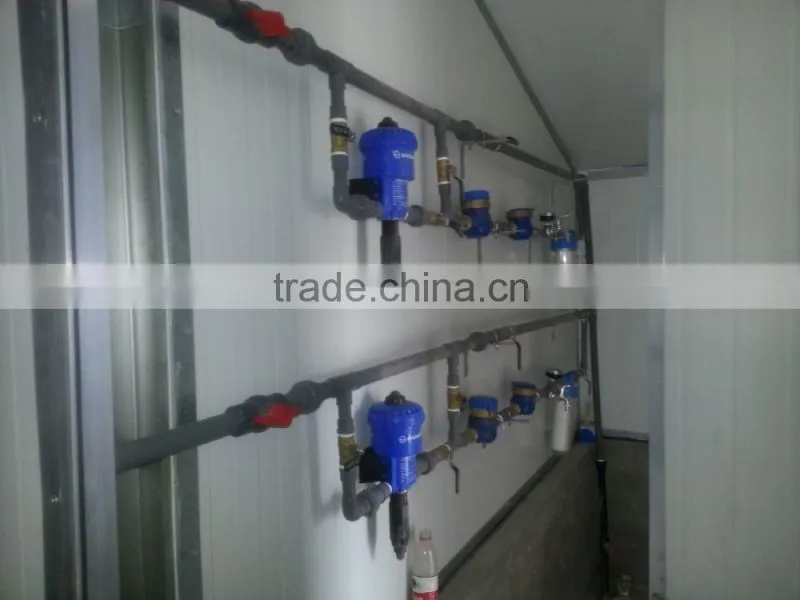

front water line
the water front line front-end module is a starting point of the water source of the hosue ,can assure the reasonable and steady water supply pressure and the steady water drinking amount, generally , the waterline front-end module is installed the operationg room .
regulator:
water level display height
| chicken day age (days ) | 1-7 days | 8-14 days | more than 15 days |
| water level height of display tube(mm) | 50-80mm | 80-200mm | 200-350mm |
we have three kind of water lines that you can choose the one that your preper
the water drip cups , water pipes and clips are made of vigin raw material the warranty time is 15 years.
nipple then years, the hang pieces such as the bolts and nuts , steel wire clips ,pulley and so on are made of stainless steel. in order to anti-rust in the chicken house.

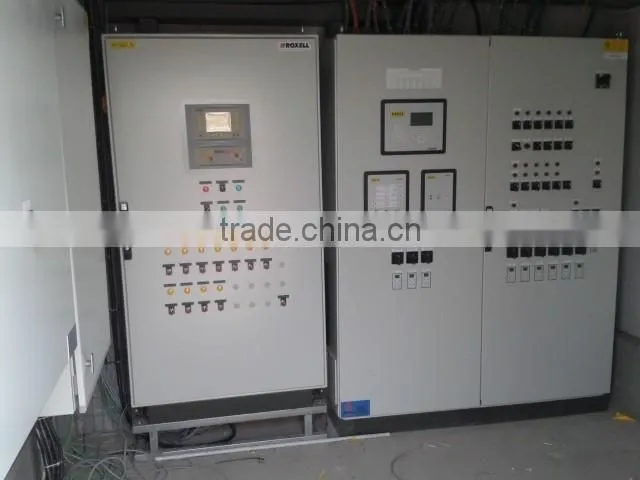

Environment controller system
environment controller system consist of the controller , control box , and alarm. can control the temperature in the chicken house by control the fan , cooling pads , air inlet , heater automatically also can control the light , water and feeding . it can also conenct to the computer
we have the environment controller from Isreal , holland for your choice and differen function and different price

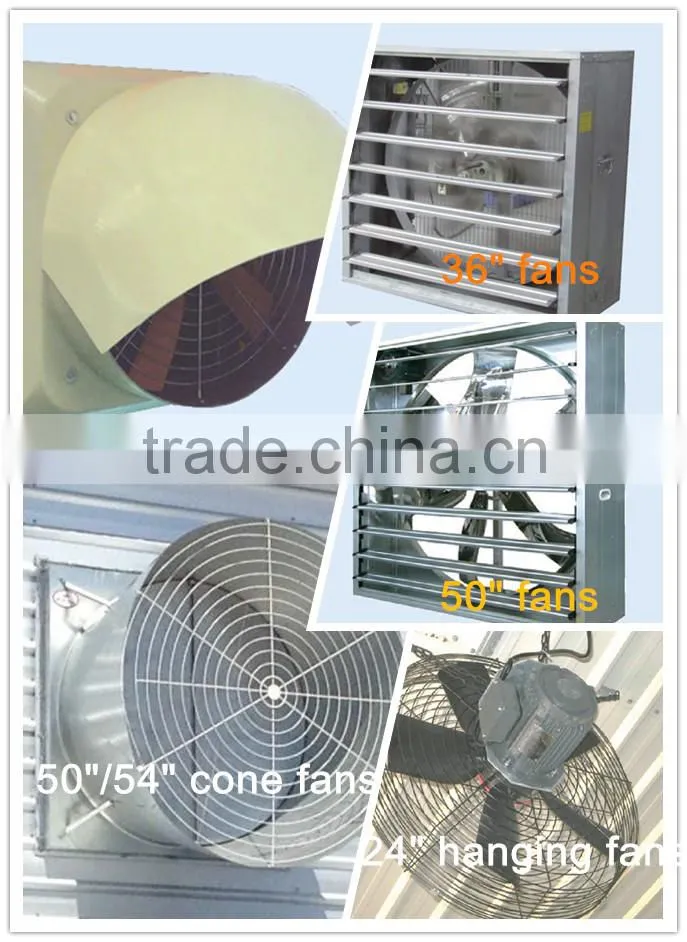

Ventilation fan
shutter: high strenth hot-galvanized steel sheet, with a centrifugal system it will turn on automatically , shutter will turn off automatically and seal under the influence if gravity of springs when the ventilation equipments go off, which can effectively prevent and profibit the ray outside from shining through and make the indoor air ventilation optimized.
Frame : galvanized steel sheet , the layer of the galvanization is 150g/m2, and the frame is one-time molded .
fan blades 6 pieces of germany imported mirror finished stainless steel baldes , the fan translations all have passed the experiment of homeostaisi , which make the air volume keep same as the very beginning during the operational life span of the fan .
Belt: the belt is imported from Japan , it is a ametabolic in a long time so there is no use to maintain it during its life circle.
free maintance : there is no use to maintain it during it life circle
36 Box fan
| Air capacity | 20800m3/H |
| Size | 1000*1000*450mm |
| Noise | <64dB |
| Power | 0.4KW |
| Voltage | 380V |
| Electric current | 1.6A |
| Weight | 66KG |
50 Box fan
| Air capacity | 43070m3/H |
| Size | 1380*1380*450mm |
| Noise | <64dB |
| Power | 1.1KW |
| Voltage | 380V |
| electric current | 2.8A |
| weight | 88KG |

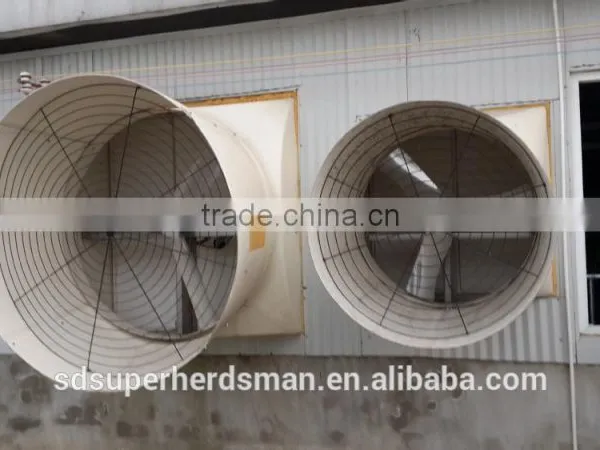

50 cone butterfly fan
| Air capacity | 51020m3/H |
| Size | 1380*1380*450mm |
| Noise | <64dB |
| Power | 1.1KW |
| Voltage | 380V |
| electric current | 2.8A |
| weight | 108KG |

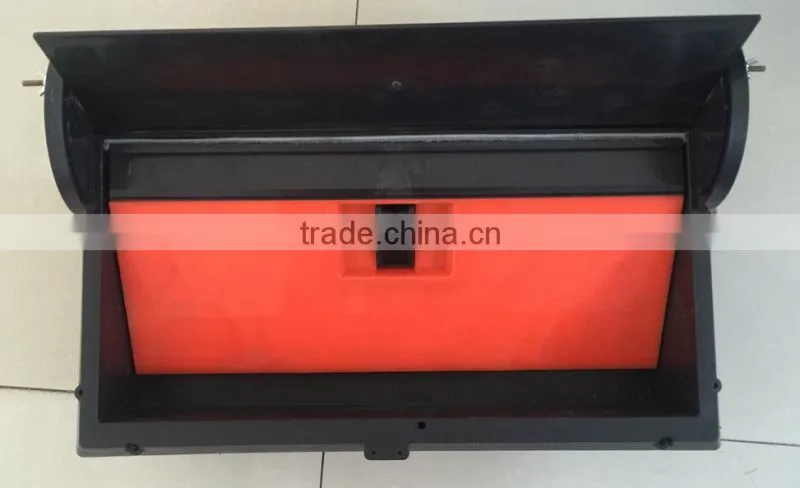

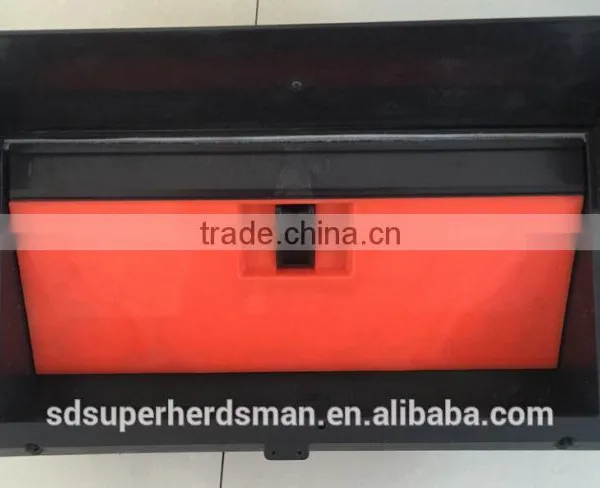

Air inlet
Window: Plastic contains the anti-ultraviolet raw material , making it longevity.
Protection Net :reasonable structure , material is Polypropylene.
Nylon pulley: Designed by patent organization, it is of rolling friction when turning on or off , low resistance and easy opening and closing.
return spring: High- quality stainless steel spring, durable and rust-;ess
pulley accessories: rigidity hard-drawn wire round steel ,ensuring accurately opening. Rigidly connected will not be stretched, the surface is treated by galvanized in case of rust.
Cooling pads
Character of cooling pads
the pad paper is formed by bonding pure imported paper pulp by corrugated fiber
the corrugated paper is specially treated, and hs high structural strenth, corrosion resistance and long service life
the corrugated fiber structure with certain angle has large surface area and quick purification , and has certain performance of the natural filter
the superiority of cooling pads
A.the structure without microporeson the surface can prevent algae and mineral substances from residing in the deep layer
B.the surface of the cooling pads has good hydroscopic property and can also prevent from producing beads on the surface
C.the fast drying property of the surface protective coating effectively inhibits organic substances such as algae from breeding on the surface
thickness specifications: 100mm,150mm
width specifications:1600mm,1800mm,2000
outer frame: galvanized frame , aluminum alloy frame, PVC frame.
1. all the plastic products such as the feed pan ,water drip cup , clips ,water pipes and air inlet and so on all are made of Virgn PP .
the warranty time is 15 years
2. nipple: never leak , warranty time 15 years
3. the accessories such as the bolts and nuts and pulley , steel rope clips are made of stainless steel
4. motor : from Italy Transtechno.
5. Auger: from South Africa
6. Feed sensor : From Germany
we can also supply OEM serive we can pack the goods according to your demand and print your company logo on the product.
1. how can you get the fast quotation ?
when you give me inquiry tell me your size of your chicken hosue ,quantity of birds you keep in one chicken house , weight of the grown chicken ,tempareture where your chicken house located ,the power condition,for the main feeding system do you need silo or hopper, or other special demand.
2. payment details:
1.we can accept T.T ,30% Down payment and the balance against copy of B/L and L/C.
3. delivery time :
in 10 days after receive the downpayment.
4. what's kind of service we can supply
Design the chicken house for you ,we can supply the turnkey project from the chicken house to the poultry equipment and supply the technican to help you feed the chicken. we have our own chicken farm and have many technicans who can feed the
