Home > Products > Bitzer > China supplier best quality cold room refrigeration condenser unit/refrigeration unit
China supplier best quality cold room refrigeration condenser unit/refrigeration unit
- 1000 Set / Sets per Month
- Xiamen
- T/T Credit Card
-
fresh Vegetable/fruit and meat cold storage warehouse
-
Blast Freezer quick freezing for fish meat Ice Cream CE Approval
-
vegetable/ fruits /meat/ beef quick freeze warehouse 200mm
-
frozen cold room for meat and fish with solar power cold room thermometer
-
Quick Frozen Cold Room for Pizza/Meat/Fish/Chicken/Vegetable
-
frozen beef cold storage cold chain cold warehouse
Product Details
| Condition: | New | Temperature: | -60~+25'C | Place of Origin: | Beijing, China |
| Brand Name: | Jialiang | Model Number: | Condenser | Voltage: | 220V/380V or other |
| Power(W): | 5-50HP | Dimension(L*W*H): | Machine Model | Weight: | 200KG |
| Certification: | CC,CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China supplier best quality cold room refrigeration condenser unit/refrigeration unit
Specification of cold room refrigeration condenser unit/refrigeration unit :
| Model | Nominal Horse power | Nominal Ref. Capacity | Compressor power | Condenser | In and out of the tube diameter | |||
| Heat exchange area | Total volume air | Motor power | Air suction | Outlet pipe | ||||
| HP | R22(W) | KW | m² | m³/h | nxW | mm | mm | |
| 2FC2.2/FH18 | 2 | 3100 | 1.89 | 18 | 3400 | 1x180 | 16 | 10 |
| 2CC3.2/FH28 | 3 | 5230 | 3.04 | 26 | 4400 | 2x140 | 22 | 10 |
| 4FC3.2/FH33 | 3 | 5950 | 3.42 | 33 | 4400 | 2x140 | 22 | 12 |
| 4EC4.2/FH41 | 4 | 7360 | 4.24 | 41 | 6800 | 2x180 | 28 | 12 |
| 4DC5.2/FH50 | 5 | 9020 | 5.09 | 50 | 6800 | 2x180 | 28 | 12 |
| 4VCS6.2/FH60 | 6 | 12490 | 6.34 | 58 | 6800 | 2x180 | 28 | 12 |
| 4TCS8.2/FH72 | 8 | 15250 | 7.73 | 72 | 8800 | 4x140 | 35 | 16 |
| 4PCS10.2/FH80 | 10 | 17700 | 8.93 | 80 | 13600 | 4x180 | 35 | 16 |
| 4NCS12.2/FH100 | 12 | 20850 | 10.43 | 100 | 13600 | 4x180 | 35 | 16 |
| 4H15.2/FH120 | 15 | 26800 | 14.13 | 120 | 13600 | 4x180 | 42 | 16 |
| 4G20.2/FH160 | 20 | 30950 | 16.65 | 150 | 19200 | 4x250 | 54 | 22 |
| 6H25.2/FV200 | 25 | 40250 | 21.20 | 200 | 21600 | 4x780 | 54 | 22 |
| 6G30.2/FV240 | 30 | 46500 | 25.00 | 250 | 24100 | 2x600 | 54 | 22 |
| 4F40.2/FV300 | 40 | 55600 | 30.40 | 300 | 32400 | 2x780 | 54 | 22 |
Temperature: 0~10 ℃ and -15~-25 ℃
Horsepower: 2HP ~ 50HP
Compressor type: Semi-hermetic piston
Voltage: 380V/3P/50Hz, 220V/3P/60Hz, 380V/3P/60Hz
Refrigerant: R404A, R22, R507A
1. Compressor 2. Condenser 3. Oil heating 4. Liquid receiver 5. Filter 6. Sight glasses 7. Solenoid valve 8. H/L P gauge 9. mechanical Pressure controller 10. Oil pressure protection 11. Vibration eliminator 12. Oil separator 13. Gas separator 14. Suction filter
cold room refrigeration condenser unit/refrigeration unit

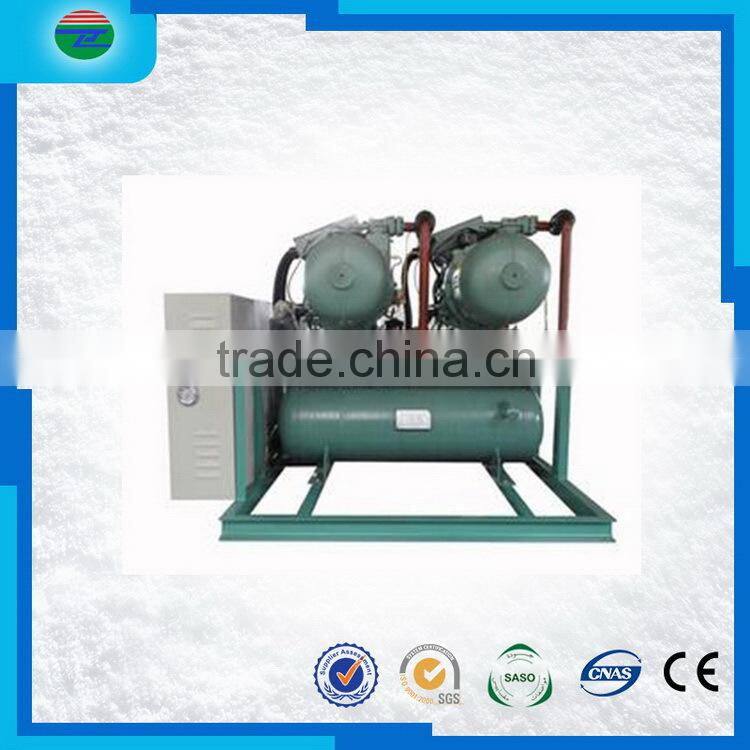

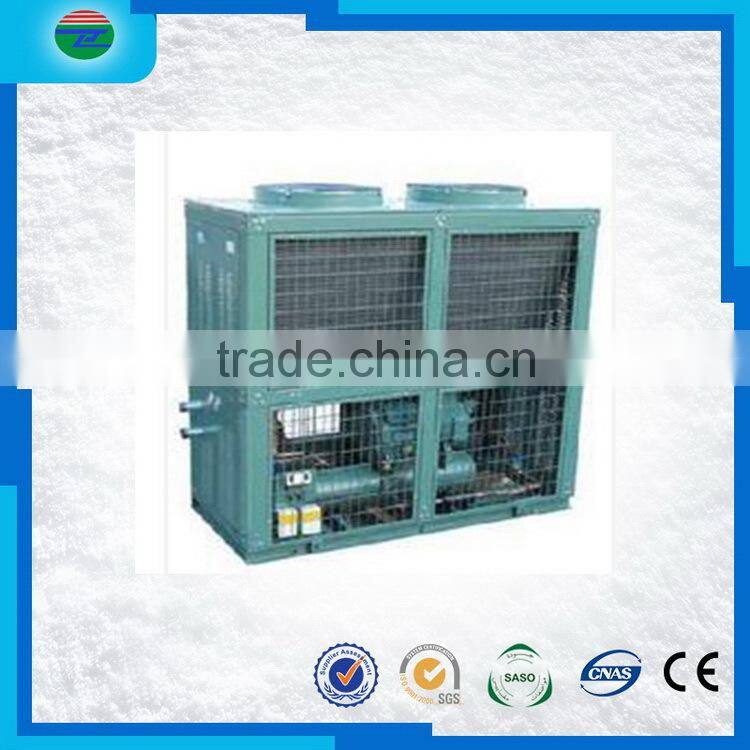

Pictures of cold room refrigeration condenser unit/refrigeration unit
We are cold storage manyfacturer, we have professioanl team to make design a set of cold room , inlcuding the
condensing unit , air - cooler , electric box . Pu sandwich panels and so on . Our market are now all over the word , Africa (Egypt, Senegal, Ghana, South Africa, Kenya), Europe (UK, Spain), North America (Canada, Mexico), Asia ( Japan, Philippines, Singapore, Indonesia, Bangladesh, Sri Lanka, Saudi Arabia), Oceania (Australia, Papua New Guinea, Solomon Islands, Fiji Islands), South America (Venezuela).
cold room refrigeration condenser unit/refrigeration unit
We are in the position to accept orders according to customer's requirement and specialize in designing,manufacturing,installing and debugging and maintaining cold room project over 20 years,and our product export to many countries with first tech,high quality,best service,good reputation,favourable price.Fruit or vegetable cold room can be made at different temperature and any size.Our engineer and technical staff assist architects in configuring the units to meet energy applications. In other words, we customized design the cold rooms with concise drawings, unit specifications and advise methods of preservation of different products.
Bitzer copeland compressor,air cooler ,danfoss valves, electric control box with founctions digital display,phase sequence protection,overload protection, high and low compresure protection.defrosting controlling .and with Schneider componients.
cold room refrigeration condenser unit/refrigeration unit
