Newest top grade meat cold storage condenser unit/refrigeration unit
Specification of meat cold storage condenser unit/refrigeration unit :
| Model | Nominal Horse power | Nominal Ref. Capacity | Compressor power | Condenser | In and out of the tube diameter | |||
| Heat exchange area | Total volume air | Motor power | Air suction | Outlet pipe | ||||
| HP | R22(W) | KW | m² | m³/h | nxW | mm | mm | |
| 2FC2.2/FH18 | 2 | 3100 | 1.89 | 18 | 3400 | 1x180 | 16 | 10 |
| 2CC3.2/FH28 | 3 | 5230 | 3.04 | 26 | 4400 | 2x140 | 22 | 10 |
| 4FC3.2/FH33 | 3 | 5950 | 3.42 | 33 | 4400 | 2x140 | 22 | 12 |
| 4EC4.2/FH41 | 4 | 7360 | 4.24 | 41 | 6800 | 2x180 | 28 | 12 |
| 4DC5.2/FH50 | 5 | 9020 | 5.09 | 50 | 6800 | 2x180 | 28 | 12 |
| 4VCS6.2/FH60 | 6 | 12490 | 6.34 | 58 | 6800 | 2x180 | 28 | 12 |
| 4TCS8.2/FH72 | 8 | 15250 | 7.73 | 72 | 8800 | 4x140 | 35 | 16 |
| 4PCS10.2/FH80 | 10 | 17700 | 8.93 | 80 | 13600 | 4x180 | 35 | 16 |
| 4NCS12.2/FH100 | 12 | 20850 | 10.43 | 100 | 13600 | 4x180 | 35 | 16 |
| 4H15.2/FH120 | 15 | 26800 | 14.13 | 120 | 13600 | 4x180 | 42 | 16 |
| 4G20.2/FH160 | 20 | 30950 | 16.65 | 150 | 19200 | 4x250 | 54 | 22 |
| 6H25.2/FV200 | 25 | 40250 | 21.20 | 200 | 21600 | 4x780 | 54 | 22 |
| 6G30.2/FV240 | 30 | 46500 | 25.00 | 250 | 24100 | 2x600 | 54 | 22 |
| 4F40.2/FV300 | 40 | 55600 | 30.40 | 300 | 32400 | 2x780 | 54 | 22 |
Temperature: 0~10 ℃ and -15~-25 ℃
Horsepower: 2HP ~ 50HP
Compressor type: Semi-hermetic piston
Voltage: 380V/3P/50Hz, 220V/3P/60Hz, 380V/3P/60Hz
Refrigerant: R404A, R22, R507A
1. Compressor 2. Condenser 3. Oil heating 4. Liquid receiver 5. Filter 6. Sight glasses 7. Solenoid valve 8. H/L P gauge 9. mechanical Pressure controller 10. Oil pressure protection 11. Vibration eliminator 12. Oil separator 13. Gas separator 14. Suction filter
meat cold storage condenser unit/refrigeration unit

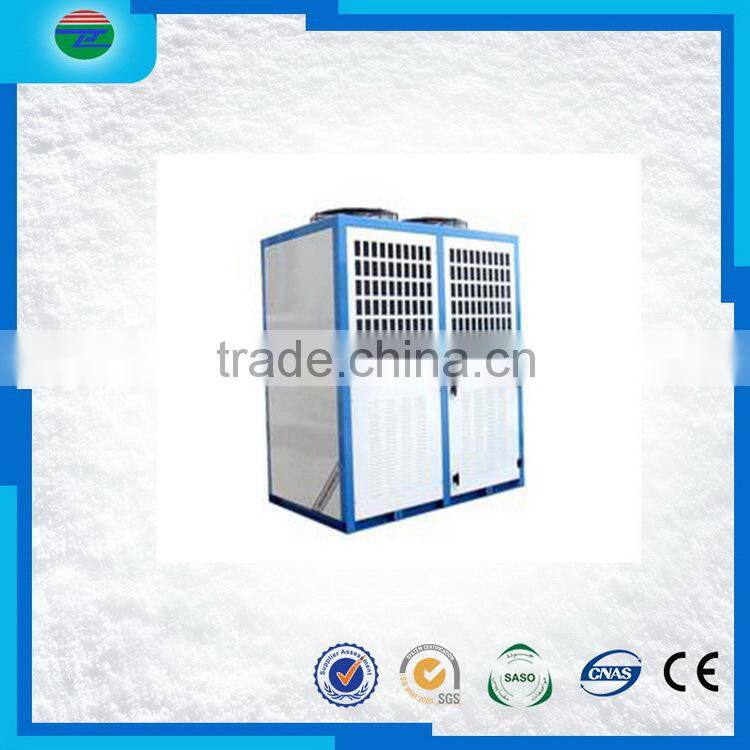

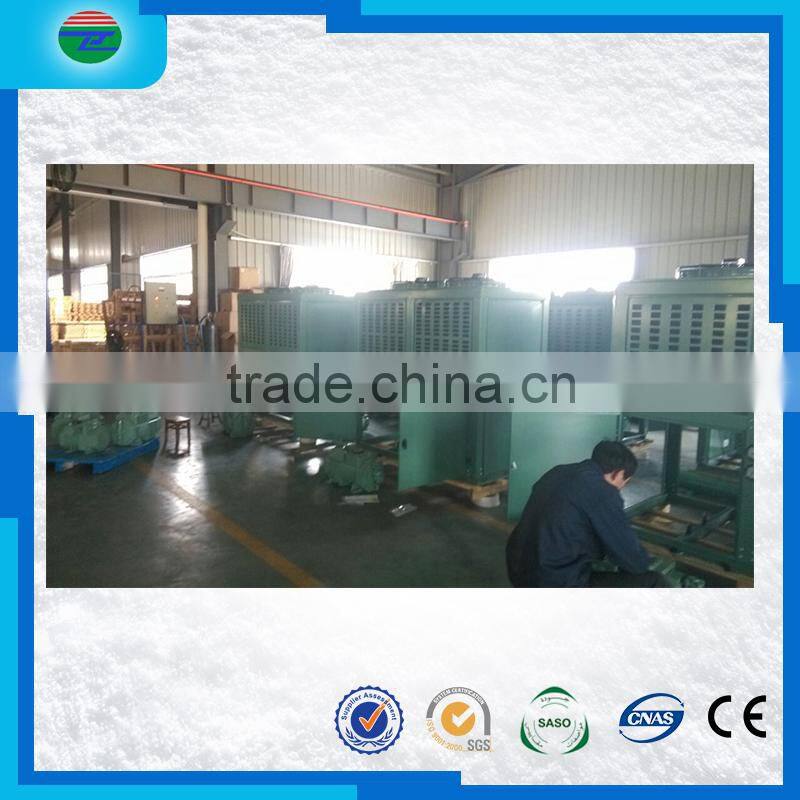

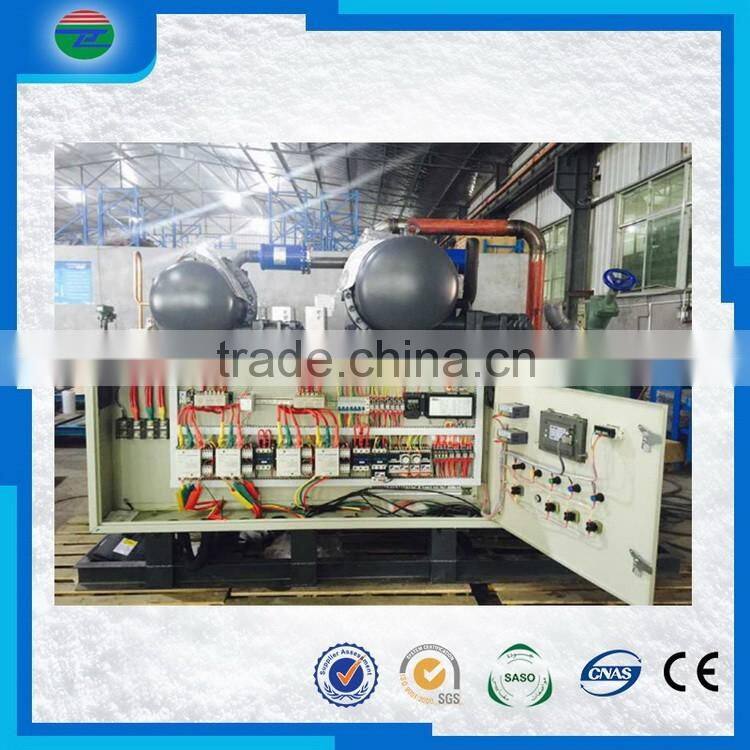

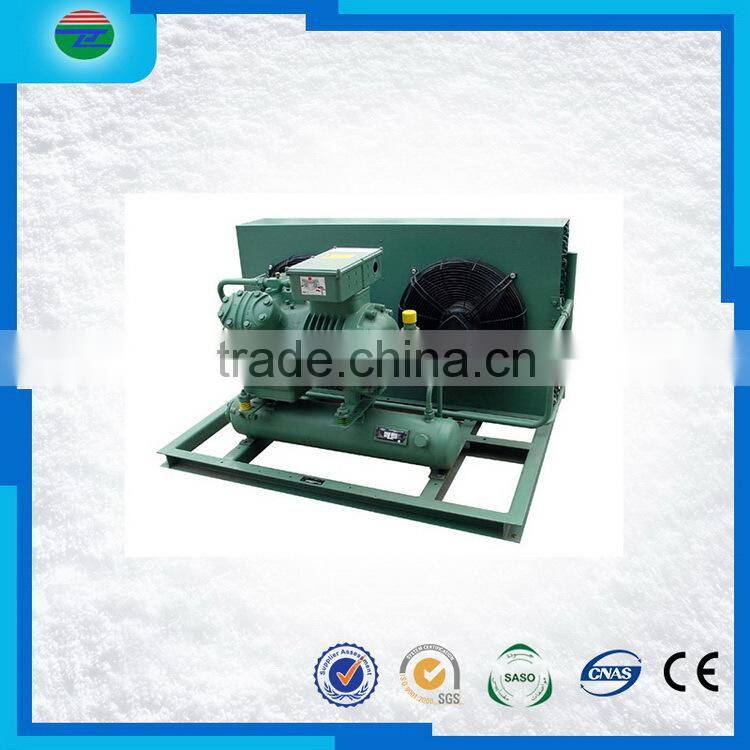

Pictures of meat cold storage condenser unit/refrigeration unit
We are cold storage manyfacturer, we have professioanl team to make design a set of cold room , inlcuding the
condensing unit , air - cooler , electric box . Pu sandwich panels and so on . Our market are now all over the word , Africa (Egypt, Senegal, Ghana, South Africa, Kenya), Europe (UK, Spain), North America (Canada, Mexico), Asia ( Japan, Philippines, Singapore, Indonesia, Bangladesh, Sri Lanka, Saudi Arabia), Oceania (Australia, Papua New Guinea, Solomon Islands, Fiji Islands), South America (Venezuela).
meat cold storage condenser unit/refrigeration unit
We are in the position to accept orders according to customer's requirement and specialize in designing,manufacturing,installing and debugging and maintaining cold room project over 20 years,and our product export to many countries with first tech,high quality,best service,good reputation,favourable price.Fruit or vegetable cold room can be made at different temperature and any size.Our engineer and technical staff assist architects in configuring the units to meet energy applications. In other words, we customized design the cold rooms with concise drawings, unit specifications and advise methods of preservation of different products.
Bitzer copeland compressor,air cooler ,danfoss valves, electric control box with founctions digital display,phase sequence protection,overload protection, high and low compresure protection.defrosting controlling .and with Schneider componients.
meat cold storage condenser unit/refrigeration unit
