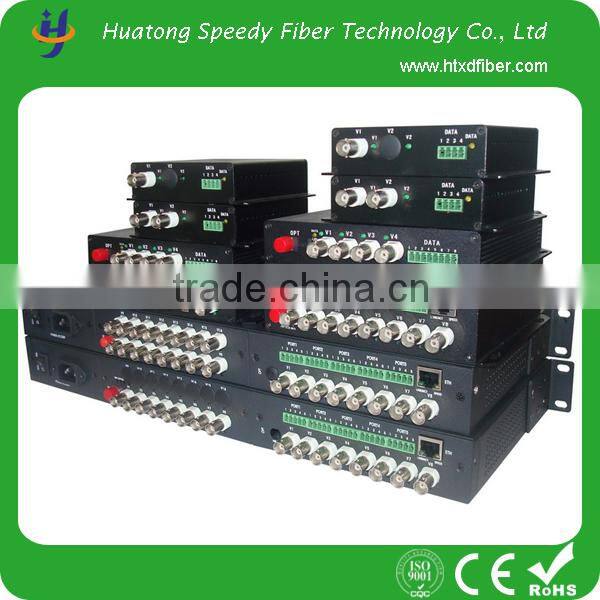

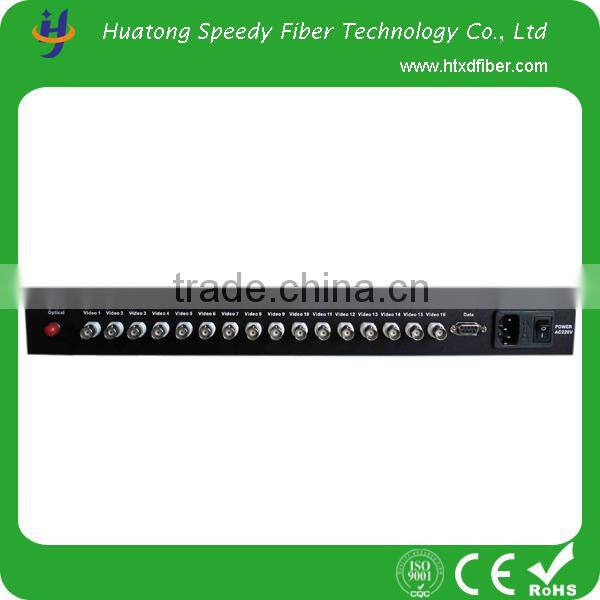

Help CenterVideo Data Optic Transceiver 16 Channel Video Data Optical Fiber Transmitter and Receiver
Related Products
-
Video Data Optic Transceiver 2 Channel Video Data Optical Fiber Transmitter and ReceiverUS$ 1.25 - 75.6MOQ: 1 Piece -
China UTP Cable CAT6 Lan Cable for CommunicationUS$ 0.05 - 1.2MOQ: 305 Meters
-
Best Price Ftp Cat5e Lan Cable UTP Cat 5e Lan Network CableUS$ 0.05 - 1.2MOQ: 305 Meters
-
New Visual Fault Locater (VFL) ProductsUS$ 1.00 - 1.00MOQ: 1 Piece
-
Good Quality FC Singlemode Simplex Fiber Optic AdapterUS$ 0.12 - 1.2MOQ: 10 Pieces
Video Optical transmitter receiver converted into a variety of coding equipment optical signal transmitted through the optical fiber medium between the one and multi-channel. The principle of video optical principle is to modulate the signal light, through fiber-optic video transmission.
Video |
Non-compression and no-distortion |
Video standards: PAL/NTSC/SECAM |
Frequency Response: 8MHz |
Video connection: BNC |
Signal to Noise Ratio: > 65dB |
Optical |
Optic wavelength: 1310/1550nm |
Optic interface: FC/SC/ST |
Supported |
single mode: 9/125, multimode: 50,62.5/125 |
Path Loss: 20dBm |
Audio |
Audio width: 20Hz~20KHz |
Signal to Noise Ratio: > 85dB |
Data |
Data interface: RS-232, RS422 (full duplex), RS485 (half duplex) Manchester, Bi-phase |
Data rate per channel: Up to 512kb/s |
BER: <10-9 |
Ethernet |
Interface: RJ-45 |
Transmission rate: self-adaptive 10/100M or 10/100/1000M |
Operation mode: half /full duplex |
Telephone |
Interface: RJ-11 Width: 8 kHz |
Operation mode: Point to point hot line, program-controlled exchange mode. |
Distortion: <1% |
Signal to noise ratio :< 95dB |
General |
power supply: DC5V/1A( optional) |
operating temperature: -35°C~70°C |
operating humidity:0~95% |

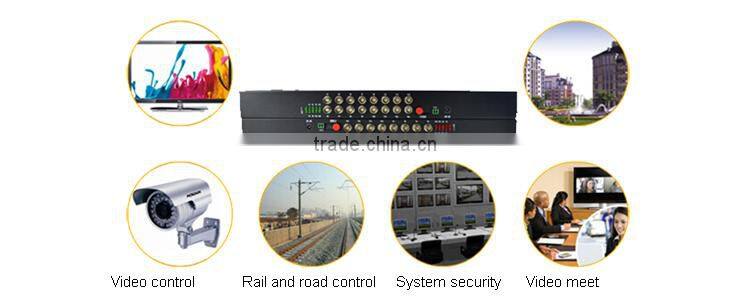

1.Monitoring
2.Surveillance in expressways
3.The custom
4.Transportation
5.Electronic police
6.Industrial automation
7.Power service
8.Banks
9.Water conservation projects, etc.
