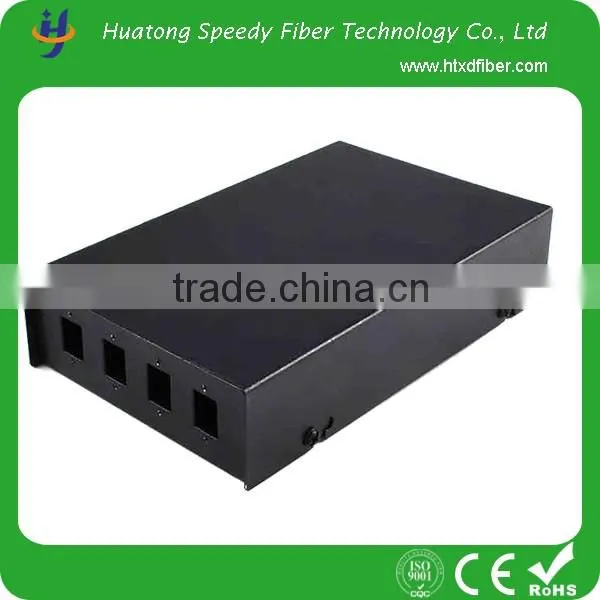

24 Port 8port 4port SC LC Pigtail Ftth Mini Fiber Optic Terminal BoxUS$ 1 - 19MOQ: 1 Piece -
32 Cores Outdoor Fiber Splitter Terminals Boxes For FTTXUS$ 1 - 18MOQ: 1 Piece
-
8 Cores Fiber Optic Splicing BoxUS$ 0.1 - 5MOQ: 1 Piece
-

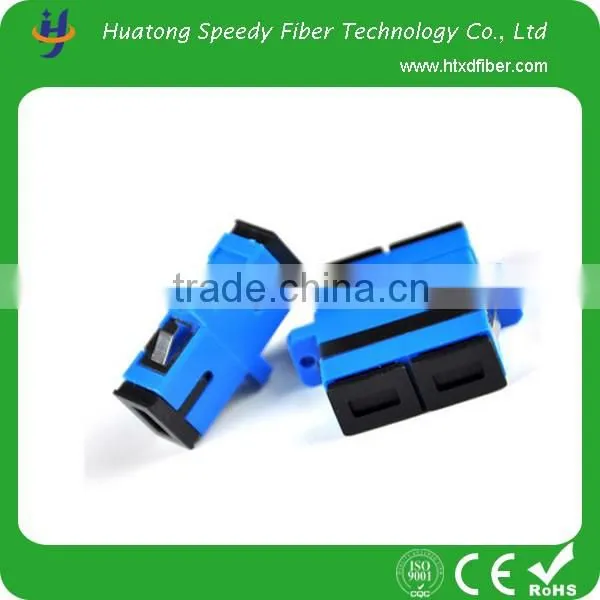

China Manufacturer FTTH Fiber Optical Socket Panel 2 SC AdapterUS$ 0.1 - 1MOQ: 10 Pieces
-
China Supplier Plastic Ftth Outdoor Cable Box Plc Splitter BoxUS$ 1 - 18MOQ: 1 Piece

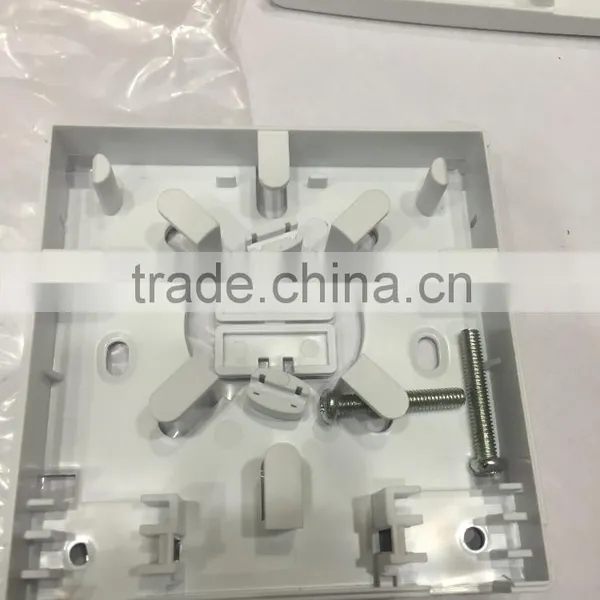

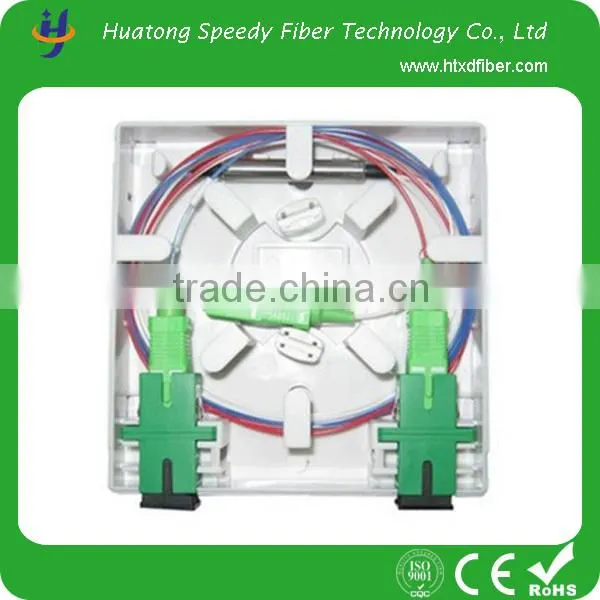

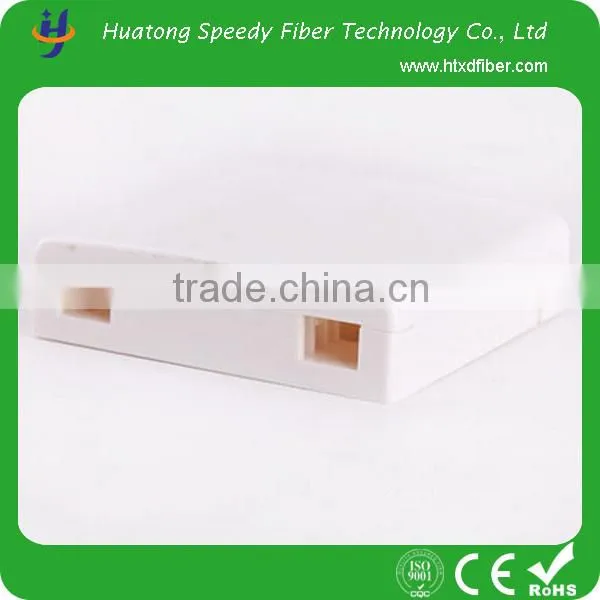

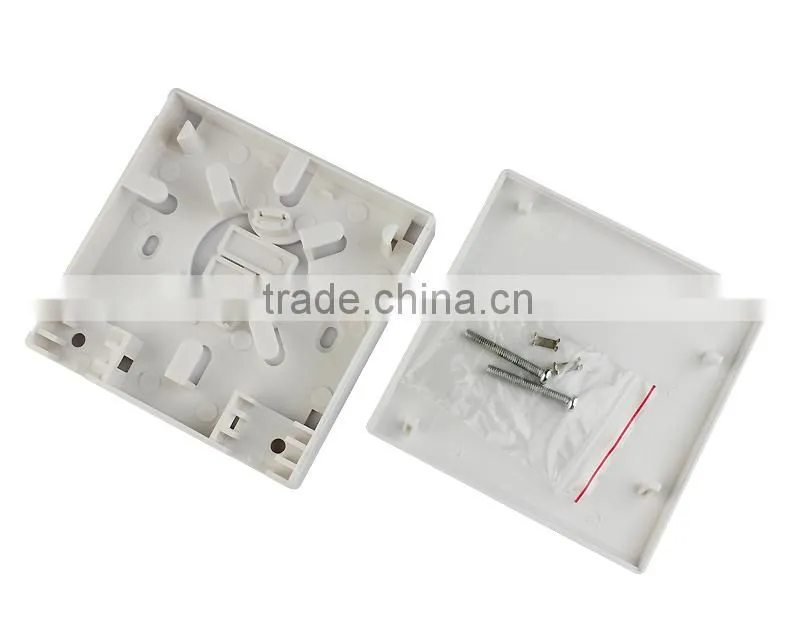

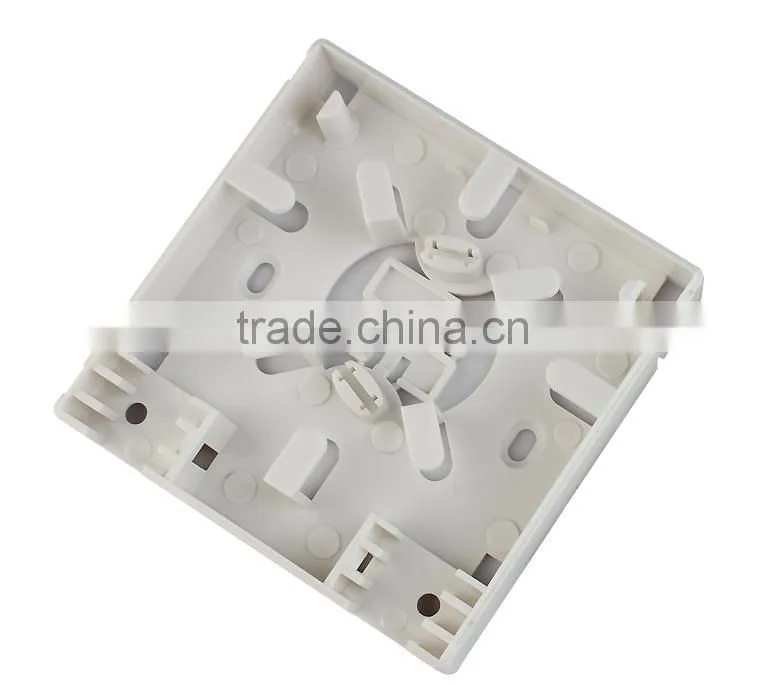

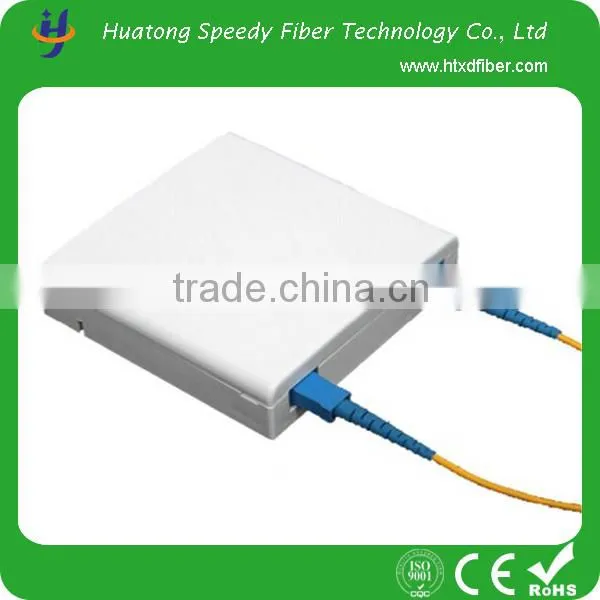

Outdoor Fiber Optic Distribution Box is widely used as a termination point for feeder cable to connect with drop cable.
The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and menagemant for FTTX network.Can be used indoor or outdoor.
Feature
- ABS material used ensures the body strong and light.
- Water-proof design for outdoor uses.
- Easy installations: Ready for wall mount – installation kits provided.
- Adapter slots used – No screws and tools needed for installing adapters.
- Ready for splitters: designed space for adding splitters.
- Space saving! Double-layer design for easier installation and maintenances:
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Protection Level: IP65.
- Accommodates both cable glands as well as tie-wraps
- Lock provided for extra security
| Item | Technical Data |
Application |
3.0*2.0 mm drop cable or indoor cable |
Fiber diameter |
125μm (652 & 657) |
Tight cladding diameter |
250μm & 900μm |
Mode of application |
Single mode & Duplex mode |
Tensile strength |
>50N |
End-use temperature |
-40~+85℃ |
Adaptor |
SC & FC |
Insertion loss |
≤0.2db(1310nm & 1550nm) |
Output |
2 |
Environmental reguirement
Working temprature : -40℃~+85℃
Relative humidity : ≤85% (+30℃)
Atmospheric pressure : 70Kpa~106Kpa
Main technical datasheet
Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insection and extraction : >1000 times
Thunder-proo technical datasheet
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC);
IR≥2*104MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,
no flashover; U≥3000V
