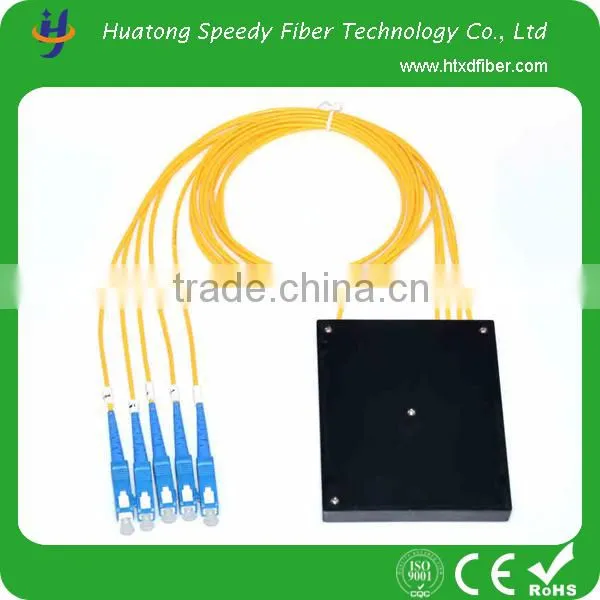

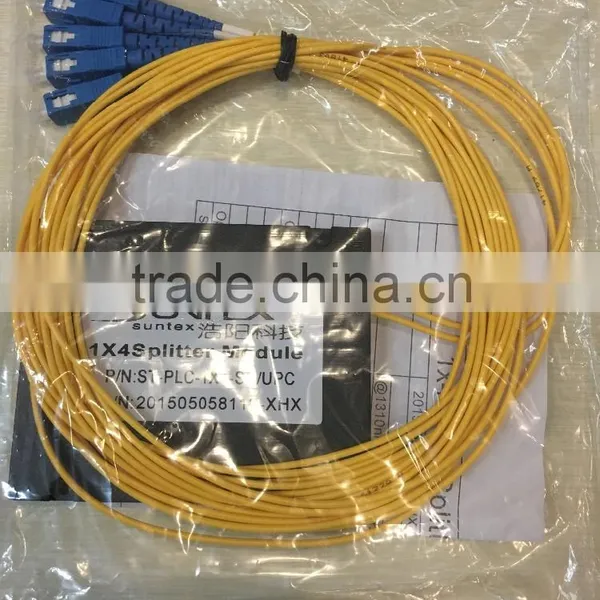

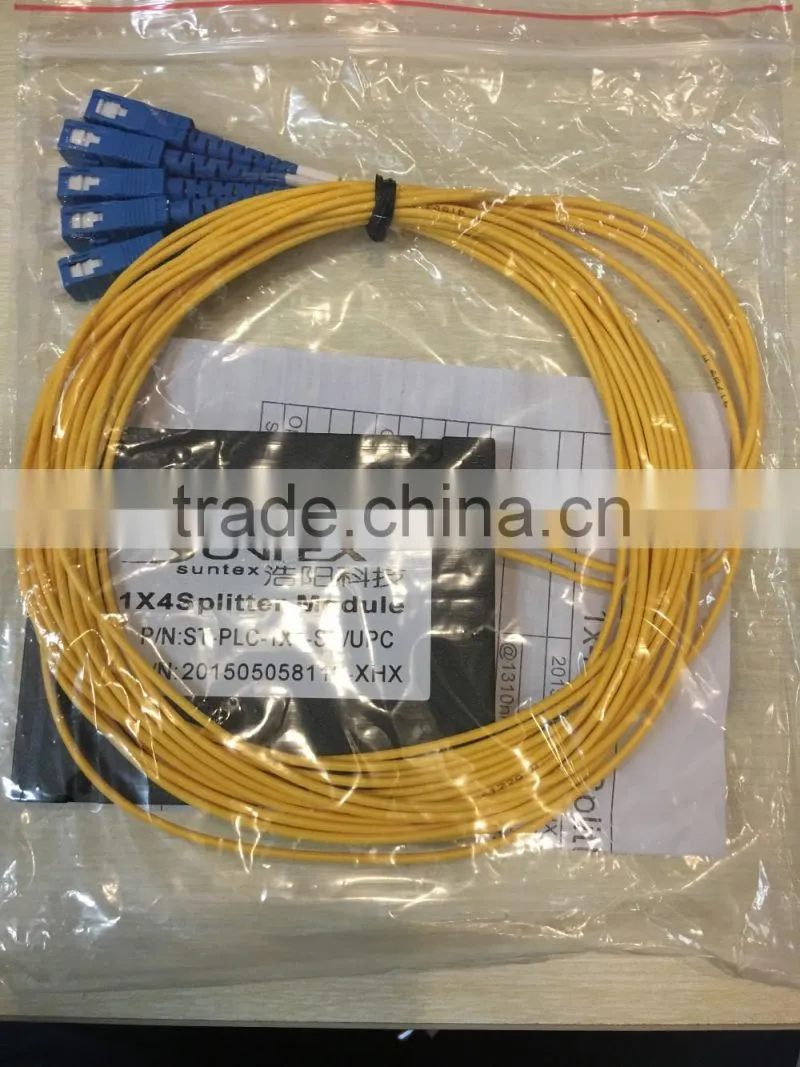

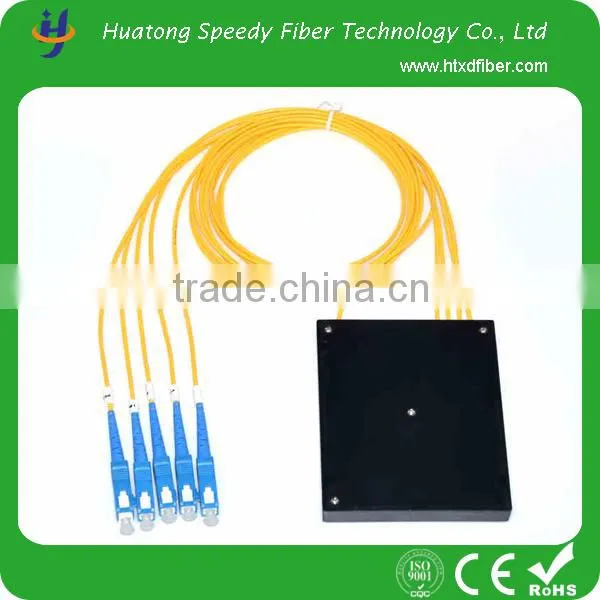

1x4 Single Mode Optic Fiber PLC Splitter
Planar Light wave Circuit (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. The feature is small size, high reliability, wide operating wavelength range and excellent channel-to-channel uniformity. As a result, it is widely used in PON networks to realize optical signal power splitting.
Low Excess loss
Low PDL
Environmentally stable
Good Thermal Stability
Model number |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
|
wavelength |
1260-1650 |
||||||
Fiber model |
G657A or decided by customer |
||||||
Insertion Loss (dB) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
|
Loss Uniformity(dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
|
Return Loss(dB) |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
|
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
||
Directionality(dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength dependent loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature stability (-40~85 ℃)(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Model connector |
SC,FC,ST decided by customer |
||||||
Operating temperature(℃) |
-40~85 |
||||||
Storage temperature(℃) |
-40~85 |
||||||
-FTTx Systems
-LAN,WAN and Metro Networks
-Analog/Digital Passive Optical Networks
-CATV Networks
-Test Equipment
-Other applications in fiberoptic systems
Our philosophy is to provide our clients with a wide choice of quality product and unprecedented services. We assure our clients of a mutually beneficial relationship as we look forward to developing a long term strategic partnership with your estimated organization.The mission of our company is “GREAT”: Greet all customers and make them fell welcomed; Respect cultural and other personal different; Evaluate and clarity customer’s expectations; Address and respond to customer’s needs; Thank and verify that needs have been met.
--Advantage we have:
A: Experienced fiber optic product supplier
B: professional technology term and sales department for your service.
C: Alibaba golden supplier, factory recognized by CE
D:All the question will be dealed within 24 hours.
--Benefit you get:
A: stable quality- coming from good material and technology
B: lower price: not cheapest but the lowest at the same quality
C: good service: satisfactory service before and after sale.
