Product Details
| Place of Origin | Guangdong, China | Brand Name | HXT | |
| Model Number | HXT-FC-ST-3M |
Product Description

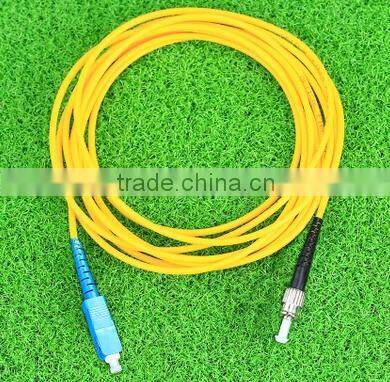

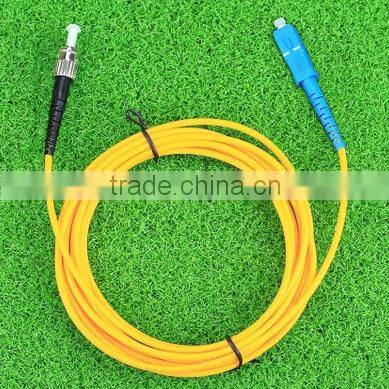

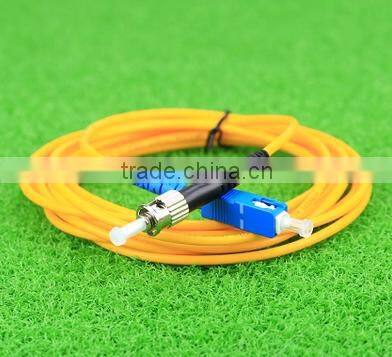

The Fiber Optic Patch Cord is a length of fiber cable with connectors fixed on two ends to realize the optical path active connection. The Pigtail is a length fiber cable with only one connector fixed on one end. If both sides of the connector or its end-face are different, we call it hybrid patch cord. According to the transmission medium, it divides to Single Mode and Multi Mode Fiber Optic Patch Cord; According to the connector structure type, it divides FC, SC, ST, MU, D4, E2000, LC etc.; According to the polished ceramic end-face, it divides to PC, UPC and APC
SPECIFICATION
1.OEM patch cord
2.Customized length
3.CE,Rohs
4.High quality and fast delivery
Parameter | Unit | LC/SC/ST/FC | |||
SM(9/125) | MM(50/125 or 62.5/125) | ||||
PC | UPC | APC | PC | ||
Insertion Loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥35 |
Exchangeability | dB | ≤0.2 | |||
Repeatability | dB | ≤0.2 | |||
Durability | Time | >1000 | |||
Operating Temperature | °C | -40~75 | |||
Storage Temperature | °C | -45~85 | |||
APPLICATION
Optic-fiber Communication Systems
Optic-fiber Data Communications
Optic-fiber Access Networks
Optic-fiber CATV
LAN
Test Equipment
Telecommunication networks
Local Area Networks(LANs)
Test Equipment
FTTH
--Advantage we have:
A: Experienced fiber optic product supplier
B: professional technology term and sales department for your service.
C: Alibaba golden supplier, factory recognized by CE
D:All the question will be dealed within 24 hours.
--Benefit you get:
A: stable quality- coming from good material and technology
B: lower price: not cheapest but the lowest at the same quality
C: good service: satisfactory service before and after sale.
