EV Charger for Battery 50kw 100kw APFC Modular

Name: EV Charger for Battery 50kw 100kw APFC Modular
Brand: Tonhe
SKU: 104736295
Availability: InStock

US$ 1,000 - 2,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Tonhe

Model Number:

TH700Q17NZ

Shijiazhuang Tonhe Electronics Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Tonhe

Model Number TH700Q17NZ

Output Power Other, 12KW

Output Type Other, DC

Input Voltage 380V

Output Voltage 400-700VDC

Output Frequency 45-65HZ

Output Current 2-17A

Specifications

1.Soft switch in all progress
2.High efficiency 92%
3.multiple protection

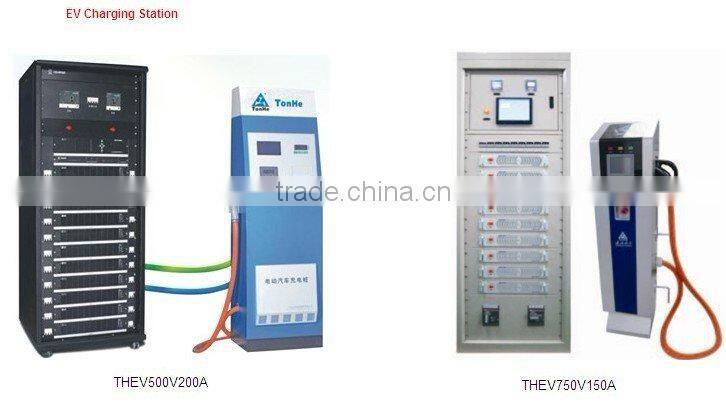

4.for EV charging station
5.Power factor 0.99

Model		TH350Q30NZ-2	TH450Q14NZ-A	TH500Q20NZ-A	TH500Q24NZ-2	TH700Q15NZ-A	TH700Q17NZ-2
Weight(KG)		20kgs	10kgs	20kgs

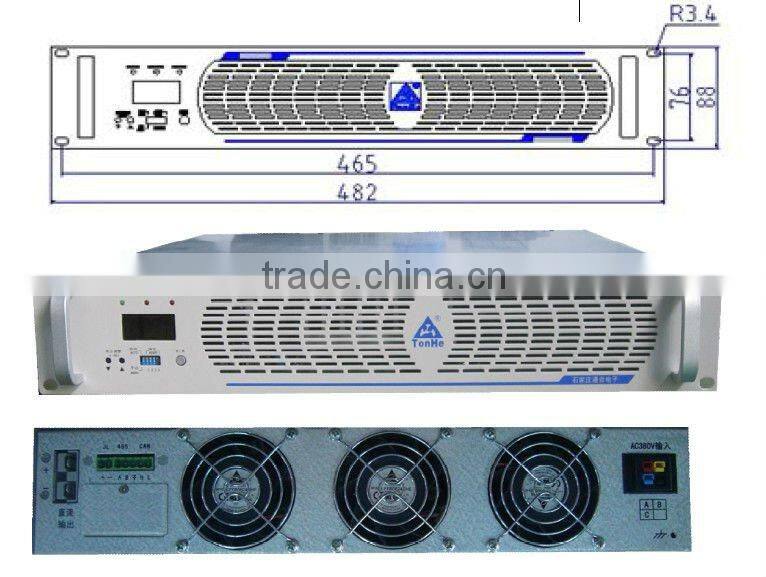

Dimension(HWD)mm		88482450	482×88×260	88482450
Input voltage (VAC)		380V AC±15%, 3 phases
Frequency		45Hz ~ 65Hz
Outout voltage(VDC)		150-350V	300-450V	350-500V	250-500V	450-750V	400-700V
Max output current(A)		30A	14A	20A	24A	16A	17A
Max power (KW)		10KW	6KW	10KW	12KW	12KW	12KW
Efficiency		≥92%	≥93%	≥92%	≥92%	≥92%	≥93%
Power factor		≥0.93 (PFC)	≥0.99 (APFC)	≥0.99 (APFC)	≥0.93 (PFC)	≥0.99 (APFC)	≥0.93 (PFC)
Total harmonic current		≤30% (PFC)	≤ 5% (APFC)	≤ 5% (APFC)	≤30% (PFC)	≤ 5% (APFC)	≤30% (PFC)
Current stabilization		≤ ± 1%
Voltage stabilization		≤ ± 0.5%
Current share imbalance		≤ ± 5%	≤ ± 5%	≤ ± 3%	≤ ± 5%	≤ ± 5%	≤ ± 5%
Soft start time(S)		3 ~ 8s
Cooling type		fan cooling
Ambient conditions	working temperature	-20°C ~ 50°C
	storage temperature	-40°C~ 60°C
	relative humidity	≤ 90%, no condensation
Load grade		Continuous work under I grade(100%)rated output current

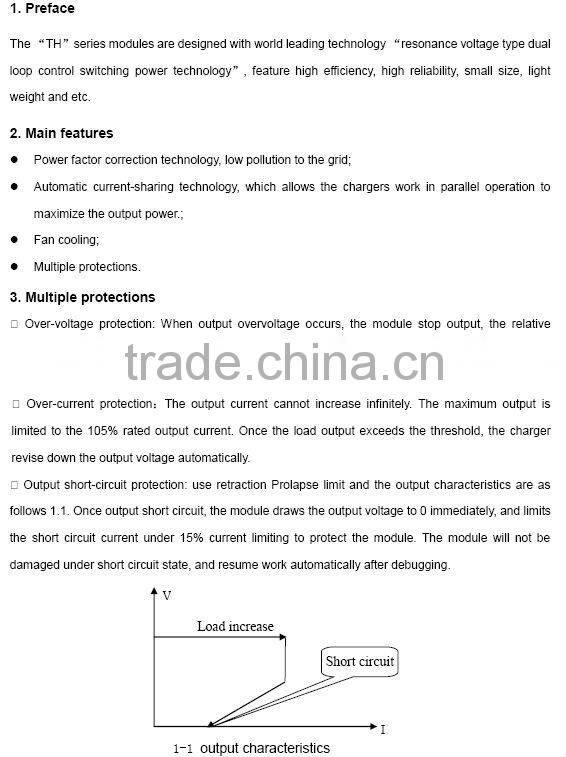

Auto current limit		Constant current output if over threshold 105% rated current
Over voltage protection		No output, self-recoverable
Short circuit protection		The ouput voltage drops to protect, self recoverable
Reverse connection protection		No output,self-recoverable
