Electric Car Chager 3.5kw

Electric Car Chager 3.5kw thumbnail-1
Electric Car Chager 3.5kw photo-1
US$ 3,000 - 5,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
TongHe
Model Number:
THQZ3500-27
Contact Supplier Request Quote Chat Now
Shijiazhuang Tonhe Electronics Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin beijing as required
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name TongHe
Model Number THQZ3500-27
Output Power Other, 3500W
Output Type Other, DC
Input Voltage Other, 200-300V,300V-440V,450-650V
Output Voltage 27V DC
Output Frequency UN------
Output Current 127A

Specifications

1. 200-300 vac, 300-440vac, 450-650 input
2. IP67
3.Natural cooling
4. all sealed and isolation
5.multiple protection

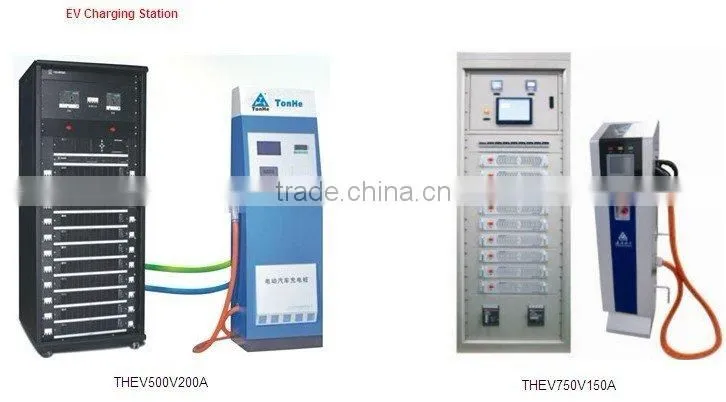

Electronic Vehicle Charger &EV charge station



Input 3 phase 380V or single phase 220V, output 30-100,100-750V DC, electric car charging, electric vehicle charger

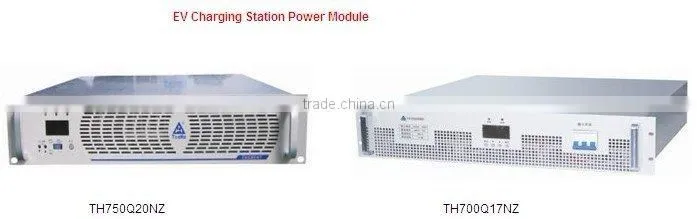

Parameter EV Charging Station Power Module
TH400Q15NZ-220AC TH350Q30NZ TH450Q14NZ-A TH750Q20NZ TH90Q130NZ TH92Q50NZ TH80Q40NZ-S
Input Input voltage 220V AC±15% 380V AC±15%, 3 phase 380V AC±15%, 3 phase 220V AC±15%
AC input frequency 45Hz ~ 65Hz 45Hz ~ 65Hz
Efficiency ≥90% ≥92% ≥93% ≥92% ≥92%
Power factor ≥0.99 (APFC), or ≥0.93 (PPFC) ≥0.99 (APFC), or ≥0.93 (PPFC)
Output Output voltage 50-500V 150-350V 300-450V   40-90V 60-96V 30-80V
Output current 5A 30A 14A 20A 130A 50A 40A
power 2.5KW 10KW 6KW 15KW 12KW 12KW 3.2KW
Start delay 3 ~ 8s 3 ~ 8s
Total harmonic current ≤ 5% (APFC), or ≤ 30% (PPFC) ≤ 5% (APFC), or ≤ 30% (PPFC)
Current stabalization ≤ ± 1% ≤ ± 1%
Voltage stabalization ≤ ± 0.5% ≤ ± 0.5%
Inter-rectifier Current sharing imbalance ≤ ± 3% ≤ ± 5% ≤ ± 3% ≤ ± 5% ≤ ± 3%
Cooling method Forced cooling with fan Forced cooling with fan
Protocal RS485 and RS232, CAN RS485 and RS232, CAN
Protection Multi-protection Multi-protection including input over or under-voltage, output over or under-voltage, over-temperature, reverse connection, phase failure, and short circuit protection. The rectifier will shut down without output, and will return to normal operating after fault is cleared.
Automatic current limiting The output current will keep fixed without increase after it exceed the set point.
Environment Operation ambient temperature -20°C ~ 50°C
Storage temperature -40°C~ 60°C
Relative humidity ≤ 90%
Air pressure 70 ~ 106kPa
Safety Insulation resistance I/O to chassis and input to output >10MΩ (Test voltage: 500Vdc)
Dielectric strength Impose 2000Vdc between I/O and the chassis aftering shorting the input and output for one minutes. No breakdown or flashover
Mechanical Size (H × W × D) mm 150×88
×400		 482×88
×500		 450×85
×260		 680×13
×600		 482×88
×450		 360×260
×360		 88×230
×400
Weight 8kg 20kg 10kg 46kg 20kg 10kg 5kg















Main Features:
1. Accounts managements. 2. Billing function.
3. Card reading and writing. 4. Man-machine interface
5. Language reading sound 6. Deal data storage
7. Operation monitoring 8. Self-checking
9. Parameter setting 10. Safety protection
11. Time recording 12. Software upgrading
13. Time revise 14. Encryption function
15. Card writing function after power-off.
