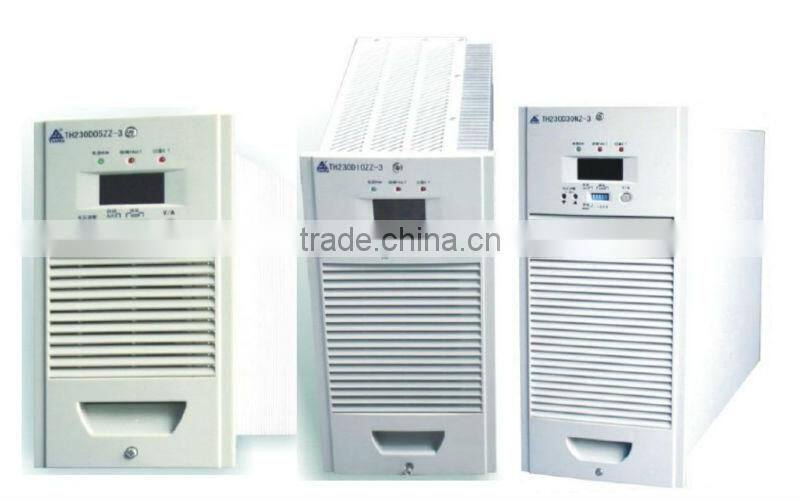

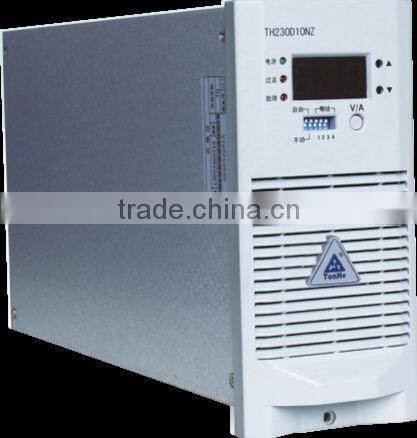

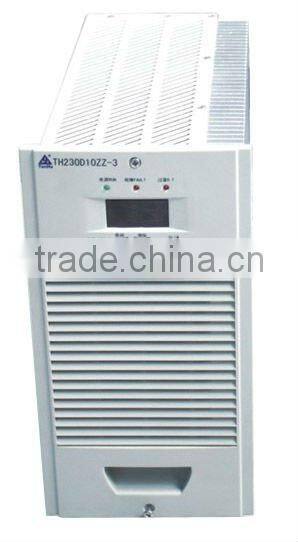

5A/10A/20A/30A/40A Switching Power Supply Modular Rectifier

Name: 5A/10A/20A/30A/40A Switching Power Supply Modular Rectifier
Brand: Tonhe
SKU: 104734729
Availability: InStock

US$ 200 - 800 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Tonhe

Model Number:

TH230D10NZ-3

Shijiazhuang Tonhe Electronics Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing or Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Tonhe

Model Number TH230D10NZ-3

Output Power Other, 2500W

Output Type Other, dc

Input Voltage 380V

Output Voltage 220V

Output Frequency 50-60HZ

Output Current 1-10A

Specifications

1. modular design and work in parallel
2. SMPS, soft switch
3. Wide output
4. small size and light weight
5. High efficiency

Our switching power supply :

1. modular design and work in parallel
2. SMPS, soft switch
3. Wide output
4. small size and light weight

Model	TH230D05NZ	TH230D07NZ	TH230D10NZ	TH230D20NZ-3	TH230D30NZ-3	TH230D40NZ-3
Mechanical

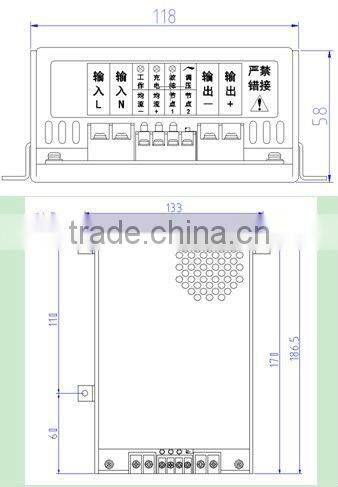

Size (H × W × D) mm	195×91×303			218×118×357	303×136×410
Weight	5kg			10.5kg	19kg
Input
Input voltage	380V AC±15%, 3 phase
AC input frequency	45Hz ~ 65Hz
Efficiency	≥95%
Power factor	≥0.93
Output
Output voltage	190-300V
Output current	0.5-5A	0.5-7A	1-10A	2-20A	3-30A	4-40A
power (W)	1500	2100	3000	6000	9000	12000
Soft start time	3 ~ 8s
Current stabalization	≤ ± 0.5%
Ripple	≤ 0.2%
Voltage stabalization	≤ ± 0.5%
Current sharing imbalance	≤ ± 3%
Cooling method	fan cooling
Protocal	RS485 or RS232
Accoustic noise	<50dB
Protection
Multi-protection	Multi-protection including input over or under-voltage, output over or under-voltage, over-temperature, reverse connection, phase failure, and short circuit protection. The rectifier will shut down without output, and self recoverable
Current limiting	The output current will not increased if it exceed the threshold.
Ambinet temperature
Operation temperature	-20°C~50°C
Storage temperature	-40°C~ 60°C
Relative humidity	≤ 90%
Air pressure	70 ~ 106kPa
