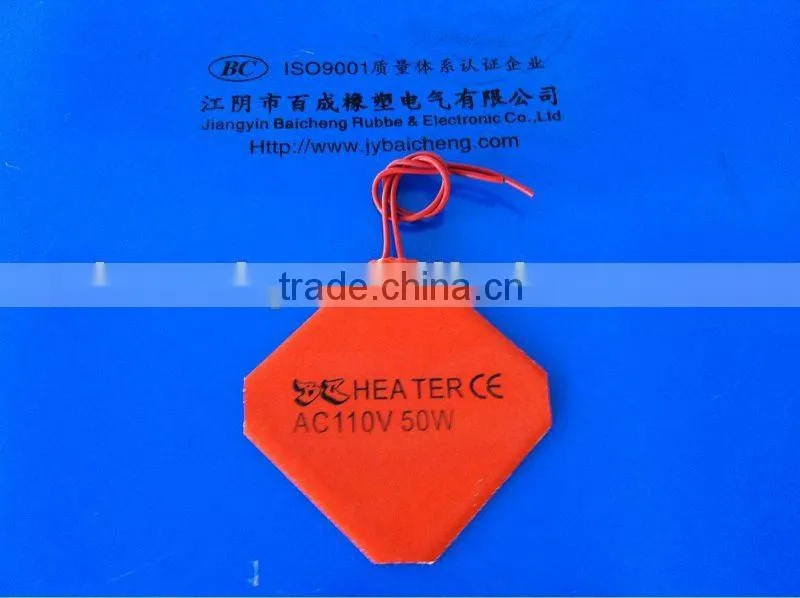

3v/12v/24v/36v/110v/120v/220v/240v/360v/480v Auto Heating Silicon Heater CE/UL/ISO9001/ROSH
US$ 8.99 - 17.99
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Other, Band Heater, Band Heater
Power Source:
Hot Water / Steam
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
220V Kapton Foil Heater ceUS$ 5.8 - 6.7MOQ: 1 Piece -
Flexible Heating Element 12VUS$ 8.99 - 17.99MOQ: 10 Pieces
-
Special-Shaped Silicone Rubber Heater BandNegotiableMOQ: 1 Piece
-
200V Silicone Rubber Electric Cabinet Heater CENegotiableMOQ: 1 Piece
-
220V 100W Silicone Rubber Heater Band CENegotiableMOQ: 1 Piece
Type
Other, Band Heater, Band Heater
Power Source
Hot Water / Steam
Place of Origin
Jiangsu, China
Brand Name
BC
Model Number
BC-1224-455
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1-Heat quick,even,high thermal efficiency2-CE Verified,ISO 9001/CE/UL
3-Fast delivery
4-Day service
70*50mm 220V 20W

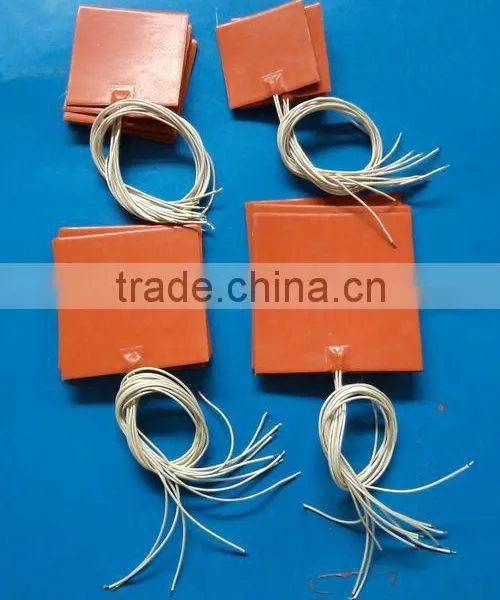

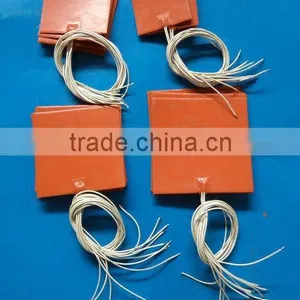

Wire-Wound Flexible Silicone Heaters Feature:
- Larger possible sizes
- Small production runs
- Smaller bend radius
- Greater physical strength
- Easily installed
- Various lengths and shapes
- Economical and dependable service
- Rugged, able to withstand repeated flexing
- Various wire lead termination options
- Mounts to flat or curved surfaces.
Typical Wire-Wound Flexible Silicone Heater applications include:
- Medical equipment such as blood analyzers and respiratory baths
- Prevent condensations in motors, instrument, and electrical cabinets
- Heating outdoor electronics
- Heat sealing , press, and laboratory equipment
- Food service and vending industry equipment
- Drum and tank heating applications
- Pet and farm animal feeders
- Freeze protection for aircraft equipment, airport runway lights, and Satellite dishes
- Battery heating
- Automobiles and vehicles.
Technical Data
Rated Power |
W |
Lead Length |
200mm |
Rated voltage |
12V—380V |
Wire tension |
15N×15N |
Maximum size |
1000m—1200m |
Minimum size |
20mm×20mm |
Ambient Temperature |
--60-----250°C |
Highest temperature |
250°C |
Maximum thickness |
1.5mm—4mm |
Withstand voltage |
1.5KV |
Insulation resistance |
≥5MΩ |
Size deviation |
±0.5percent |
Power deviation |
±5percent |
Wire Type |
Silicone braided wire |
