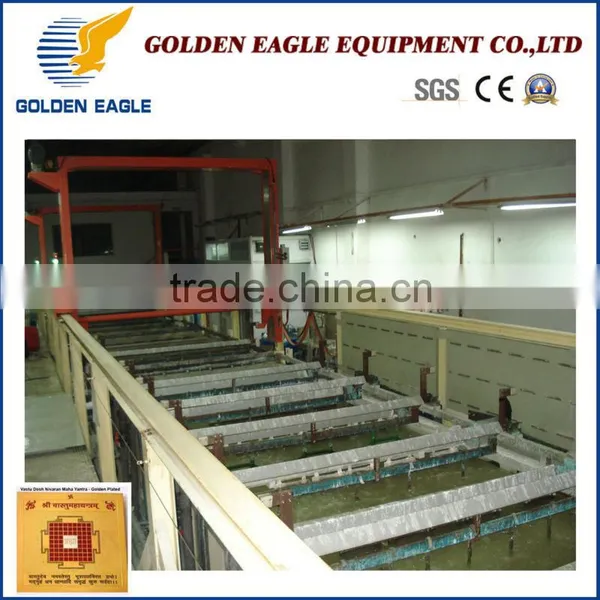

Golden Eagle Zinc Electroplating Machine
Description:
Zinc Electroplating Machine is used to increase the anti-corrosion and decorative effect by forming a zinc coating and passivating on the surface of steel parts.
Why need Zinc Plating for your workpiece?
Anti-corrosion
Specifications:
Process requirement |
Alkaline zinc plating |
Plating mode |
Flexible Automatic |
Barrel |
40kg/Barrel 500-1000kg/hour |
Hanging fixture |
10pieces/fixture/150kg |
Heating |
Electricity heating 85kW |
Electricity consumption |
150kW |
Water consumption |
Tap water: 2tons/hour |
Water pressure:2.0-3.0 kgf/CBM | |
Dimension |
28m*6m*5.5m |
Working environment requirement |
Power supply:380V/50Hz |

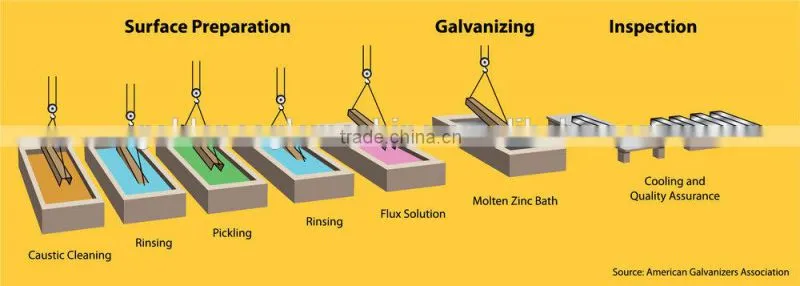

Zinc Plating Principle
Zinc Plating Process
Plating Bath |
Process |
Time(min) |
Temperature(℃) |
Heating power |
1 |
Loading station(auto chemical dosing) |
|
|
|
2 |
Ultrosonic degreasing |
5-10 |
50-60 |
24kW |
3 |
Rinse (Hot water) |
2-5 |
60-70 |
24kW |
4 |
Rinse |
|
Room temperature |
|
5 |
Pickling(HCL &H2SO4) |
1-2 |
Room temperature |
|
6 |
Rinse |
|
Room temperature |
|
7 |
Rinse |
|
Room temperature |
|
8 |
Rack&Barrel Zinc plating |
20-60 |
25 |
Cooling |
9 |
Rack&Barrel Zinc plating |
20-60 |
25 |
Cooling |
10 |
Rinse |
|
Room temperature |
|
11 |
Rinse |
|
Room temperature |
|
12 |
Illumination in HNO3 |
1-2 |
Room temperature |
|
13 |
Rinse |
|
Room temperature |
|
14 |
Yellow passivation |
30s |
20-25 |
|
15 |
Rinse |
|
Room temperature |
|
16 |
Rinse
|
|
Room temperature |
|
17 |
Hot air drying bath |
5-10 |
110 |
20kW |
18 |
Load off |
|
|
|
|
Hot Air dryer |
2sets |
|
6kW |
Remark: The Zinc Plating Process can be customized according to your plating process.
Zinc Plating Application:

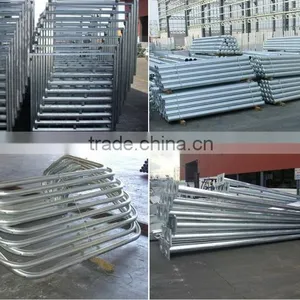

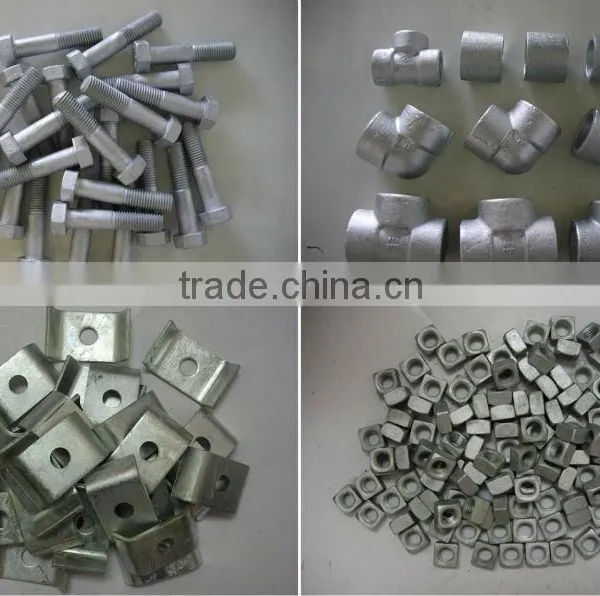

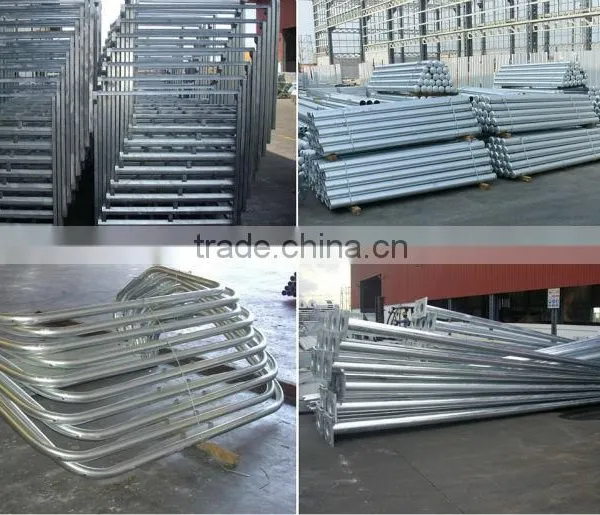

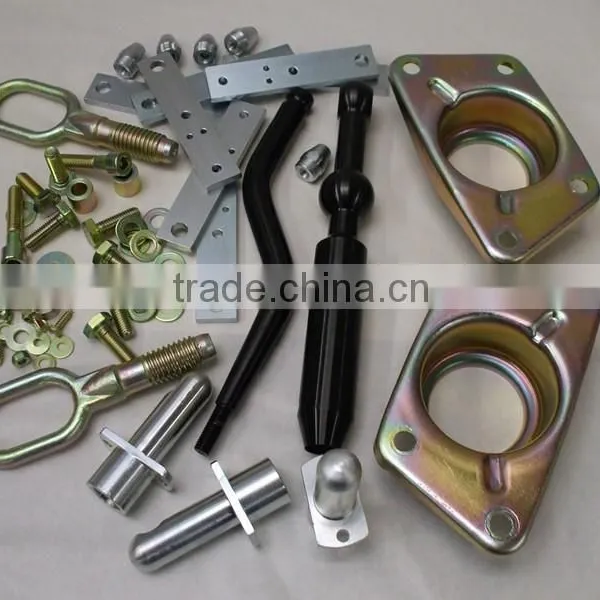

Steel pipes Zinc plating; Screws Zinc plating; Windows and Door Hardware Zinc plating; Trivalent Yellow Zinc Plating;
Zinc Plating Machine Configuration:
1. Electrical Control system including PLC and Touch monitor;
2. Crane designed according to your workpiece weight and quantity
3. Machine Frame designed according to your plating process and bath quantity
4. Plating bath designed according to your plating process and workpiece quantity and size.
5. Ventilating system
6. Pipes system
7. Heating system and cooling system
8. Peripheral equipment including rectifier, filter machine, acid god clean tower, waste water and waste gas treatment equipment.
Any plating machine is designed and offered according to your requirement,Please contact with us with details information required as below
1. What is your workpiece material,size,photo?
2. What kind of coating will you like to be plated?
3. What is the production capacity everyday?
4. What is your required plating process?
5. What is your factory layout?
Beijing Golden Eagle Electronic Equipment Co., Ltd is the modern advanced technology equipment supplier of technology research and development, equipment manufacturing, technical training. Our company was founded in 2003, it has been focusing on the idea of technological innovation , sincere service, customer first, and creating a well-trained staff team. Our company located in Jingkai highway, Daxing Industrial Development Zone, Capital Beijing. This place has convenient trahsportation, it’s very closed from Beijing Railway Station, Airport Expressway.
Our company is specialised in designing, producing and selling
automatic gantry barrel plating line,
automatic gantry hardware plating line,
antomatic ABS plastic plating line,
plated through hole production line,
and environment friendly series treatment equipment like industrial waste gas treatment equipment,electroplating, electrophoresis etc.
Our company provide single machine and complete sets of equipment line as enterprise, factory, personal requirement for customer overseas and domastic, we also provide after sales service and technical training.Our equipment sold to many countries like United States, Britain, Australia, Spain, India, the Middle East etc and has been recognized by customers.
