wire mesh ontainer

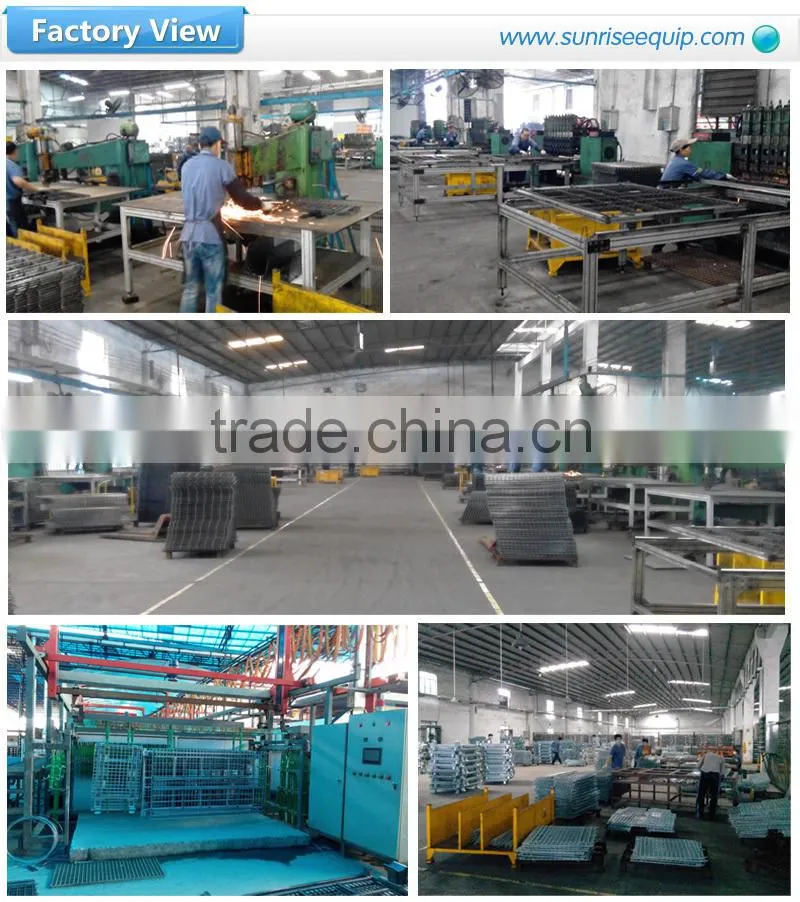

THE BIGGEST MANUFACTORY FOR WIRE MESH CONTIAINER IN SOUTH CHINA
hot dip galvanizing, Galvanized,Color Galvanized,Powder coated

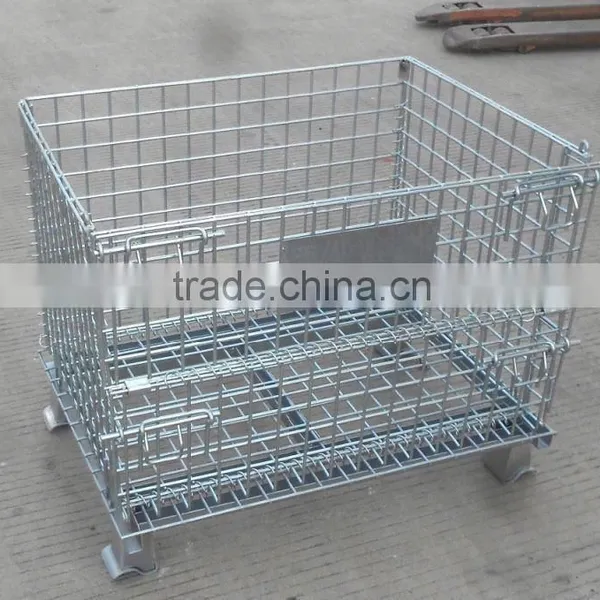

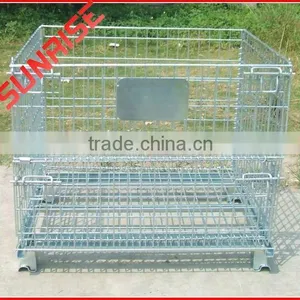

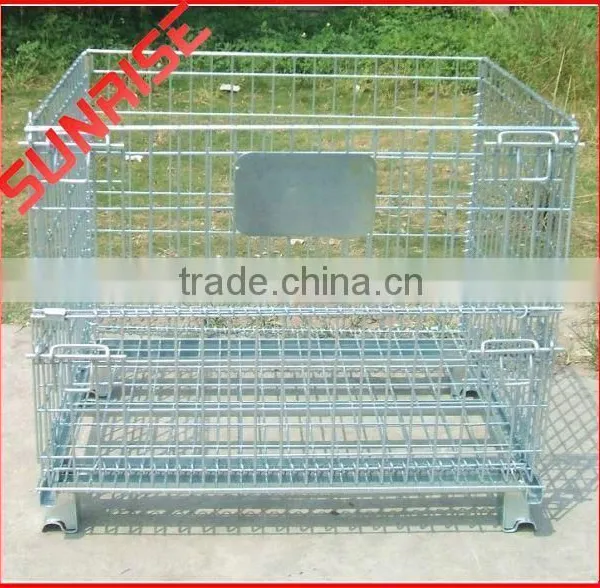

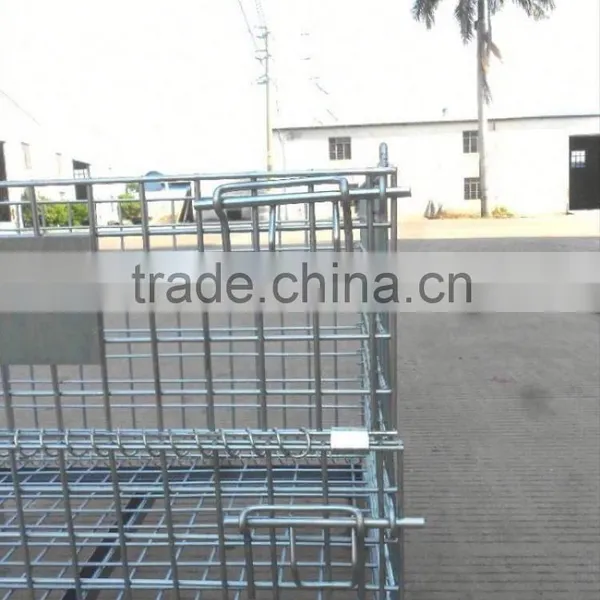

foldable galvanized wire mesh container
Bending handle is easy to open and close.
The bottom is adopted the U-channel steel to strengthen the loading intensity.

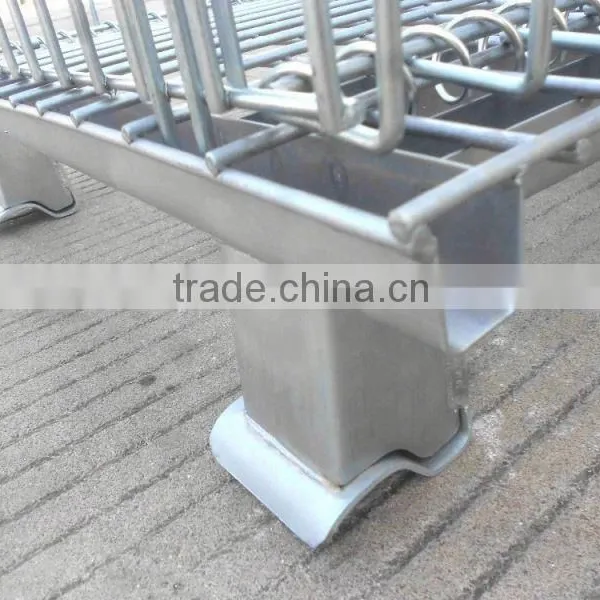

The special foot base structure assures the stability of wire container when loading and heaping.

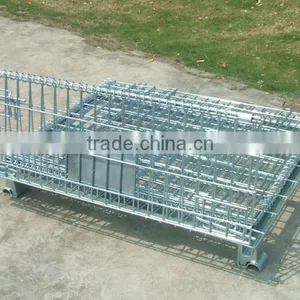

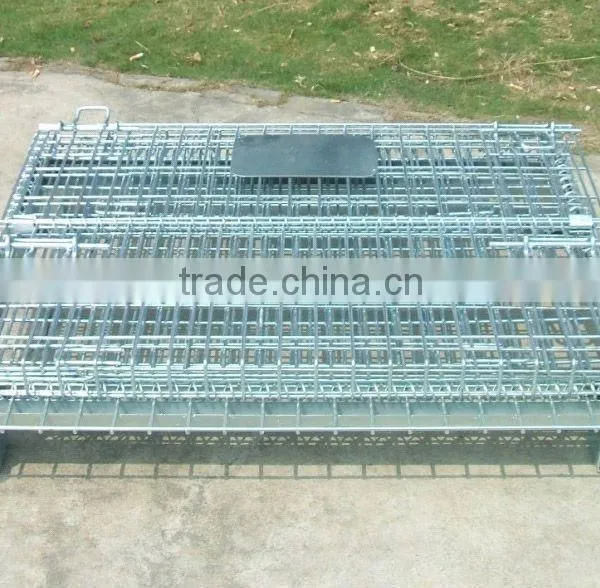

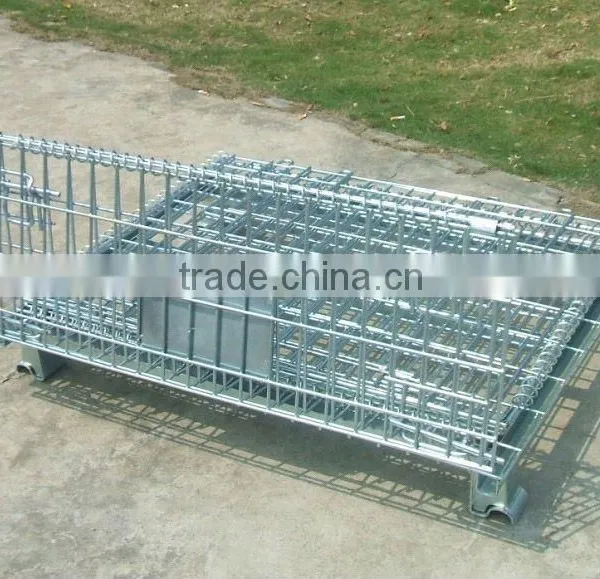

Spiral spring hinge connects the reticular pieces, which makes the wire container can be folded when they are idle.
The top is fixed by clamp that assures the intensity of the hinge.
Auxiliary strengthened structure assures the stability of wire container when heaping.
Adopting the multipoint spot welding technique assures the wire container durable.
Individual bolt assures the easy opening of the door when the wire container is heaped
This product is made of welded steel wire. To weld U-shaped stiffener at bottom better for strengthening structure itself. To place cardboard in it so as to protect fragile goods or easily-scratched-surface goods. If assisted by transportation equipment, it can be used in logistic steps, such as transportation, load and unload, and storage.
(1)Size: 800mm*600mm*640mm, 1000mm*800mm*840mm, 1200mm*1000mm*890mm etc.
(2)Diameter of wire: 5.0mm, 6.0mm or 6.4mm etc.
(3)Size of mesh: 50mm*50mm, 50mm*100mm.
(4)Loading capacity: Varying from 500kg to 2000kg.
(5)Surface Treatment: Galvanization
(5)Customized sizes are available.
wire mesh container Foldable Steel Collapsible wire mesh container
ITEM |
MODEL |
Size(mm) |
Mesh size(mm) |
Wire dia. (mm) |
N.W(kg) |
Capacity (kg) |
A series |
A-1 |
800*600*640 |
50*50 |
6.0 |
29.0 |
800 |
SA-1 |
5.8 |
27.7 |
600 |
|||
A5.3 |
5.5 |
23.2 |
400 |
|||
A4.8 |
5.0 |
20.8 |
300 |
|||
B series |
B-1 |
1000*800*840 |
50*50 |
6.0 |
44.6 |
1000 |
SB-1 |
5.8 |
42.8 |
800 |
|||
B5.3 |
5.5 |
35.6 |
600 |
|||
B4.8 |
5.0 |
31.0 |
500 |
|||
C series |
C-1 |
1200*1000*890 |
50*50 |
6.0 |
60.8 |
1500 |
SC-1 |
5.8 |
55.6 |
1200 |
|||
C-2 |
50*100 |
6.0 |
53.4 |
1000 |
||
SC-2 |
5.8 |
48.4 |
800 |
Foldable Steel Collapsible wire mesh container
Foldable Steel Collapsible wire mesh container
1. Our engineer will caculate the exact costs and give you a factory pric;
2. The length, width, height will be customized according to your requirements;
3. Help you to keep tabs on the situation of the productivity and give you the latest information;
4. We could talk about the futher details about the size, the packing and the delivery.
5. Our company will do our best to execute the order to your satisfaction.
6. Provide you design for your warehouse and other logistic equipment.
7. Provide aftersale service, listen to your feedback.
1, What information I need to get a quick offer?
1) Width, depth, Height
2) How many pcs you want.
3) Loading capacity
2, How does your factory do regarding quality control
We have professional QC and manager system.
3, Is OEM service accepted?
Yes, OEM is accepted.
