Beijing Golden Eagle Galvanic Plating Machine
Automatic Vertical Copper,Nickel, Chromium Plating Production Line are widely used in hardware electroplating, ABS plastic electroplating, Car parts electroplating, decorative electroplating, furniture electroplating and others.
Golden Eagle could supply many kinds of coatings, like Zinc Electroplating, Nickel Electroplating, Tin Electroplating, Chormium Electroplating, cooper Electroplating , gold Electroplating, silver Electroplating and so on.
Specifications:
Process requirement |
Alkaline Zinc Plating &Zinc,Nickel Plating |
Plating mode |
Manual plating |
Heating |
Electricity heating 99kW |
Electricity consumption |
150kW |
Water consumption |
Tap water: 2tons/hour |
Manual Gantry Crane |
Two units |
Hanging fixture |
Three sets |
Working environment requirement |
Power supply:380V/50Hz |
Tap Water supply: 2tons/hour | |
Dimension of the machine |
48*8*5m H |
Why need Zinc Plating for your workpiece?
Anti-corrosion
Zinc Plating Principle
Zinc Plating Process
Bath |
Process |
Time (min) |
Temperature(℃) |
|
Load on |
|
|
1 |
Soak Cleaner |
|
|
2 |
Soak Cleaner |
|
|
3 |
Electrolytic Cleaner |
|
50-60 |
|
4
|
Rinse |
|
|
5 |
Rinse |
|
|
6 |
Acid Pickle |
|
|
7 |
Acid Pickle |
|
|
8 |
Rinse |
|
|
9 |
Rinse |
|
|
10 |
Alkaline Zinc plating |
|
20-30 |
11 |
Alkaline Zinc plating |
|
20-30 |
12 |
Alkaline Zinc-Nickel plating |
|
20-28 |
13 |
Rinse |
|
|
14 |
Rinse |
|
|
15 |
zinc dip neutralizer |
|
|
16 |
CR3 |
|
|
17 |
zinc nickel clear cr3 |
|
|
18 |
zinc nickel black cr3 |
|
|
19 |
Rinse |
|
|
20 |
Rinse |
|
|
21 |
CR3 gold chromate |
|
|
22 |
Rinse |
|
|
23 |
Rinse |
|
|
24 |
Hot water Rinse |
|
80-90 |
|
Load off |
|
The Zinc Plating Process can be customized according to your plating process.
Zinc Plating Application:

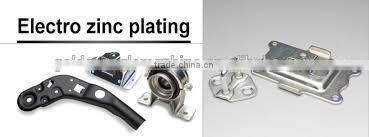

Steel pipes Zinc plating; Screws Zinc plating; Windows and Door Hardware Zinc plating; Trivalent Yellow Zinc Plating;
Zinc Plating Machine Configuration:
1. Electrical Control system including PLC and Touch monitor;
2. Crane designed according to your workpiece weight and quantity
3. Machine Frame designed according to your plating process and bath quantity
4. Plating bath designed according to your plating process and workpiece quantity and size.
5. Ventilating system
6. Pipes system
7. Heating system and cooling system
8. Peripheral equipment including rectifier, filter machine, acid god clean tower, waste water and waste gas treatment equipment.
How to design the production line we need?
1.What materials do you want to electroplating? Metal or plastics?
2.Please supply your samples or material parts max. Size,materials;
3.Please advise what kind of coatings would you like to electroplating, such as copper, nickel, chrome,Gold,Silver, Zinc...
What products can be electroplated by Golden Eagle electroplating production line?
Metal parts |
Plastic parts |
Watch band |
Cars parts/accessories |
Decorative lights |
Jewelry |
Furniture accessories |
Decorative accessories |
Bag accessories |
Mobile phone cover |
Watch case |
All kinds of hardware parts |
Alloy plating |
Locks |
Toilet and bathroom accessories |
Electronic parts |
Water taps |
Windows and doors hardware |
What is Golden Eagle competitiveness?
1.Good quality and best after sale service;
2.Customized design
3. Eletroplating process training and at site installation
Why Golden Eagle Electroplating production line?
More than 20 years experiences in R&D, manufacturing electroplating production line
6 years credit supplier on alibaba website.
