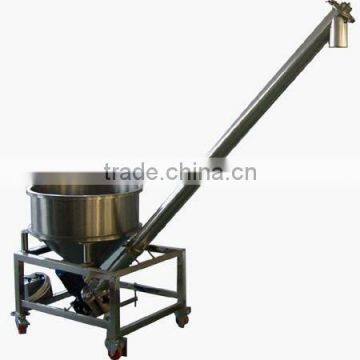

Vibrating Screw Feeder GHS-2S2

Vibrating Screw Feeder GHS-2S2 photo-1
US$ 1 - 999 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Packaging Material:
Plastic
Automatic Grade:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Packaging Material Plastic
Automatic Grade Semi-Automatic
Driven Type Electric
Place of Origin Taiwan, China
Brand Name Minhua
Model Number GHS-2S2

Specifications

It can convey sorts of material. Combined with the package-machine of our company, it can do material situation tracing.

Descriptions:

The Machine can convey sorts of material. Combined with the package-machine of our company, it can do material situation tracing. It also can be used separately. Complete machine made in stainless steel, except for the electrical machine, gearing, and the framework.

Features:

l  Vibrating screw feeding machine is composed of double motor, feeding motor, vibrating motor and each switch control.

l  Hopper is adjustable and vibration which make material to be flowing easily. It is good to material.

l  Hopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading.

l  Characteristic dustproof, bearing won't be polluted by the dust and powder.

l  To cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversally, storing materials at the bottom of hopper pipe, and taking out the whole screw.

Technical Parameters:

Model

GHS-2S2

GHS-2S3

GHS-2S5

GHS-2S7

Charging Capacity

2 cbm/hr.

3 cbm/hr.

5 cbm/hr.

7 cbm/hr.

Powder Supply

550W

930W

1.5KW

2.2KW

Diameter of pipe

φ102mm

φ114mm

φ141mm

φ159mm

Hopper Volume

100L

230L

200L

200L

Power Supply

3P 208-415V 50/60Hz

Charging angle

General 45 degree, special 30degree,60degree

Charging Height

General1800mm,Different feeding height could be designed

Total Weight

120kg

130kg

180kg

230kg

Overall Dimensions of Hopper

1023×823×870mm

Remark

Other charging capacity could be designed
