DZH-120 Horizontal Multi-function Automatic Boxing Machine

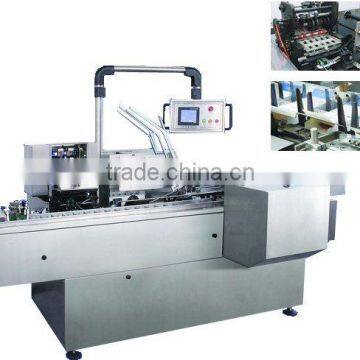

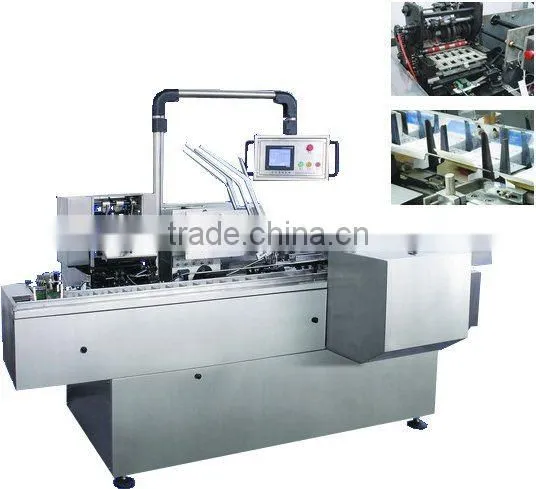

DZH-120 Horizontal Multi-function Automatic Boxing Machine photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
Used
Place of Origin:
Shanghai, China
Brand Name:
Minhua
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Condition Used
Place of Origin Shanghai, China
Brand Name Minhua
Model Number DZH-120
Application Medical
Driven Type Electric
Packaging Material Paper
Automatic Grade Automatic

Specifications

The machine is used to take Ai-plastic medical former,plastic bottle to fill in the paper-boxes automatically



Performance and Characteristics

Machinery drive, variable frequency speed regulating, protection of automatic stop when the machine is over loading, control with PLC process, automatic checking of Aiming at the medical former and the explaining books page-lack. Automatic waiting when the machine hasnt medical former. Having the equipments of products count and intelligent failures display.
the machine is used to take Ai-plastic medical former(including the medical formers which are full of ai-foil),plastic bottle (vitreous bottle )to fill in the paper-boxes automatically, including the explaining books pucker(1-4 fold),paper-boxes forming and using, codes printing and the two sides of paper-boxes sealing are also automatic .it can be also linked to produce with ai-plastic blister packing machine, bottle-filling lines and three dimension transparent film packing machine, etc.




Main Technical Parameters:

Electric power:

AC380V three-phrase and five-wire 50HZ total power 1.5kw

Production capacity:

Rotation speed 50-120 b/min Speed of folding machine:50-120b/min

Volume of consumption:

20m3/h(pressure0.5-0.7Mpa)

Packing material:

Box:250-300/m2(according to its dimensions to confirm)
Specifications:max Size(L×H ×W)200×80×60mm
Min.Size(L×H×W)65×20×15mm

Leaflet:

Paper weight:55-65g/ m2
Specifications:max.Size(L×W)260×190mm
Min.Size(L×W)100×100mm

Overall dimension:

2700×1400×1650

Weight:

Approximately1.2tons
