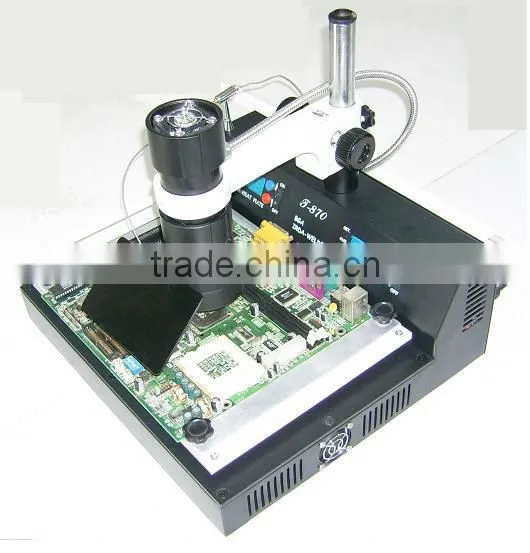

BGA IRDA-Welder BGA Rework Station

Specifications

Use infrared heat,easy to cut through,heat proportion piercing tradition weld machine with sirocco

Features

1,Adopt infrared weld technology which independent exploration.
2,Use infrared heat,easy to cut through,heat proportion piercing tradition weld machine with sirocco.
3,Easily operate.Just need one day training.Can operation this machine.
4,Don't need weld tools.This machine can weld all the component of 35x35-50x50mm.
5,This machine has 800W heating system.widely to240x180mm.
6,Infrared heating don't have sirocco flow. Don't impact perimeter small component.Can suitable for all of the component,especially Micro BGA component.
7,Definitely can satisfy the computer, the notebook, the electricity swims and so on the BGA sealing off/repairs to request;Specially especially suits to the computer north and south bridge.









(the position of the two temp-sensor when soldering the south/north board)



Technique Parameter



Work floor size	360X240mm
Rated voltage and frequency	AC220-230v 60/50Hz
Complete machine power	1000W
Infra-red lamp body power	150W
Preheating chassis power	800W
Infra-red lamp body heating size	Φ70mm(50x50mm)
Preheating chassis preheating size	240x180mm
Infra-red lamp body temperature adjustable	200°C-350°C
Preheating chassis temperature adjustable	60°C-200°C







Instrument inventory
Welding table main body	1
Infra-red lamp body	1
Temperature sensor	1
Board support of the circuit	1
Power line	1
user's manual(Compact disc)	1
