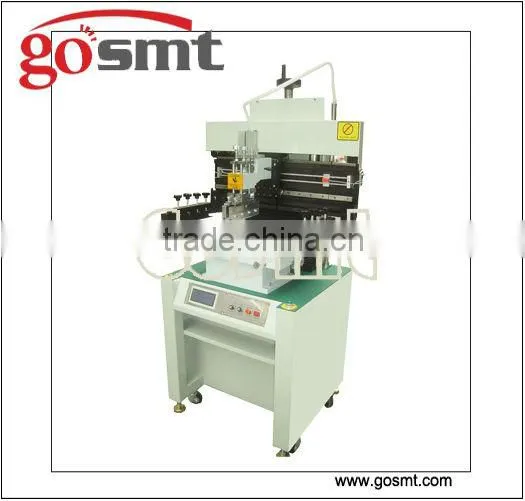

Semi-automatic Screen Printer SMT Solder Paste Printers

Name: Semi-automatic Screen Printer SMT Solder Paste Printers
Brand: Gosmt
SKU: 104698609
Availability: InStock

US$ 3,850 - 4,300 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

Gosmt

Shenzhen Gosmt Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name Gosmt

Model Number GSE-680SP

Usage Other, screen printer

Automatic Grade Semi-Automatic

Voltage 220V 50/60Hz

Gross Power 100W

Dimensions(L*W*H) 880X680X1650MM

Weight 220KG

Certification CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.SMT Solder Paste Printers
2.Stencil 370x470-550x650mm
3.PCB size 320x450mm
4.PCB thick 0.2-3.0mm
5.precision 0.02mm

Semi-automatic Screen Printer SMT Solder Paste Printers

GSE

Features:

PLC Control System to ensure working stabilized & reliable; Touch screen is easy to operate.
High Rigidity structure and linear rails ensure the stabilities and precision of printing.
This printer can automatically set the running parameters to comport with all kind of products and get best performance according to different characteristic of glue and solder paste.
Flexible arming base with the arms can be adjusted toward right or left to match different size of PCB.
The printing knife can be rotated 45°C upward then fixed to convenient for the clean & replace of knife and stencils.
Calibration method is to use the movement of stencil to match with X,Y,Z of printing base.

Specification

Description	Adapted to the printing of solder paste and glue for all kinds of thick or thin PCB (single or double)
Power Requirement	220V 50/60HZ
Power Consumption	100W
PCB Thickness Range	0.2-3.0MM
Slim Adjusting of platform	±0.05MM
Respectabilities Precision	±0.02MM
Air Supply	4-6kg/square centimeter

Parameter

Model	Size	Printing area(mm)	Stencil Dimension(mm)	Based Board Dimension (mm)	Dimension(mm)	Weight (KG)
GP-680SP	M	500 x 320 mm	470 x 370 – 650 x 550 mm	400 x 320 mm	870 x 700 x 1650±20mm	220
GP-680SP-D	M	500 x 320 mm	470 x 370 – 736 x 736 mm	400 x 320 mm	1000 x 870 x 1650±20mm	250
GP-700SP	L	700 x 320 mm	470 x 370 – 950 x 550 mm	650 x 320 mm	1170 x 700 x 1650±20mm	240
GP-700SP-D	L	700 x 320 mm	470 x 370 – 950 x 736 mm	650 x 320 mm	1170 x 870 x 1650±20mm	260
GP-950SP	LL	950 x 320 mm	470 x 370 – 1200 x 550 mm	900 x 320 mm	1420 x 700 x 1650±20mm	280
GP-950SP-D	LL	950 x 320 mm	470 x 370 – 1200 x 736 mm	900 x 320 mm	1420 x 870 x 1650±20mm	310
GP-1250SP	XL	1250 x 320 mm	470 x 370 – 1500 x 550 mm	1200 x 320 mm	1720 x 700 x 1650±20mm	310
GP-1250SP-D	XL	1250 x 320 mm	470 x 370 – 1500 x 736 mm	1200 x 320 mm	1720 x 870 x 1650±20mm	330
GP-1550SP	XXL	1550 x 320 mm	470 x 370 – 1800 x 550 mm	1500 x 320 mm	2000 x 700 x 1650±20mm	380
GP-1550SP-D	XXL	1550 x 320 mm	470 x 370 – 1800 x 736 mm	1500 x 320 mm	2000 x 870 x 1650±20mm	440
